How To Wire LED Strip Lights: A Professional Guide To Installation And Circuitry

Wiring LED strip lights requires matching the voltage of the power supply unit to the strip, ensuring the total wattage draw does not exceed 80 percent of the power supply capacity to prevent overheating. By calculating the total length and power consumption per meter before installation, you can create a reliable, long-term lighting system that avoids voltage drop and circuit failure.

Essential Preparation and Technical Requirements

Before beginning the installation, you must align your equipment with the specific requirements of your LED project. Improper matching of voltage—typically 12V or 24V—is the leading cause of premature LED failure.

• Essential Gear and Tools:




  • Constant Voltage LED Power Supply (Driver): Must match the strip voltage.
  • LED Strip Lights: Ensure you select the correct ingress protection (IP) rating for your environment.
  • Low-Voltage Wire: Typically 18-22 AWG stranded copper wire for runs between the driver and the strip.
  • Connectors and Soldering Iron: Snap-on connectors for quick fixes or a 30W-60W soldering iron for permanent, vibration-resistant connections.
  • Wire Strippers and Heat Shrink Tubing: Essential for secure, professional-grade connections.
  • Voltage Meter: Necessary for verifying output before final connection.

• Mandatory Standards and Metrics:




  • Voltage Drop: If running strips longer than 5-10 meters, you must inject power at both ends or use a parallel wiring configuration to maintain consistent brightness.
  • Wattage Calculation: Multiply the watts per meter of your strip by the total length, then add a 20 percent buffer to determine the required wattage of your driver.
  • Polarity Awareness: LEDs are polarity-sensitive. Ensure the positive (+) terminal of the driver connects to the positive terminal of the strip, and negative (-) connects to negative.

Procedural Workflow for Wiring LED Strips

Step 1: Measuring and Cutting the Strip

Before making electrical connections, calculate your required length. LEDs are designed to be cut at specific intervals, usually marked by a copper pad icon or a small scissor symbol. Using sharp shears, cut only on these designated copper lines. Cutting elsewhere will permanently disable the segment of the strip.

Step 2: Preparing Connections

For a secure electrical path, you must expose the copper contacts on the strip. If using solderless connectors, peel back the adhesive backing slightly to allow the connector to grip the contact pads securely. If soldering, tin the copper pads on the LED strip with a small amount of solder before applying the wire to ensure a strong, low-resistance bond.

Step 3: Integrating the Power Supply

Connect the low-voltage output wires of your power supply to the LED strip. Strip approximately 10mm of insulation from your wire ends. If you are using a screw-terminal driver, ensure the wires are fully inserted and tightened to prevent arcing. For a clean, professional finish, slide heat-shrink tubing over the connection points and apply heat until the tubing creates an airtight, moisture-resistant seal.

Step 4: Testing for Voltage Consistency

Once the wires are connected but before mounting the strip, plug the power supply into the wall outlet. Use a multimeter to verify that the voltage at the end of the LED strip matches the rated voltage of the driver. If the reading is more than 5 percent lower than the rated voltage, you are experiencing voltage drop and must shorten the wire gauge or add a parallel power injection point.

Pro-Tip: Always keep your high-voltage AC connections (from the wall outlet) separate from your low-voltage DC connections. Use a junction box to house the power supply unit to meet local electrical safety codes and prevent accidental contact.

Technical Parameters and Material Selection

Selecting the correct components is critical for longevity. The following table outlines the correlation between power requirements and strip types.

Addressing Installation Failures and Field Remedies

• Issue: Flickering or Dimming LEDs


  • Root Cause: The power supply is overloaded, or the connections are loose, causing high resistance.
  • Actionable Fix: Replace the power supply with one rated for at least 20 percent more than the total strip wattage and verify all terminal screws are tight.
• Issue: Uneven Brightness Across the Strip


  • Root Cause: Voltage drop due to excessive wire length or insufficient wire gauge.
  • Actionable Fix: Implement a power injection point at the end of the strip or use a thicker gauge wire to minimize resistance.
• Issue: Segment of the Strip Remains Dark


  • Root Cause: A faulty solder joint or cutting the strip between designated copper pads.
  • Actionable Fix: Inspect the copper pads for cold solder joints and reflow them; if the segment was cut incorrectly, you must cut out the damaged section and reconnect the remaining functional parts.

Frequently Asked Questions

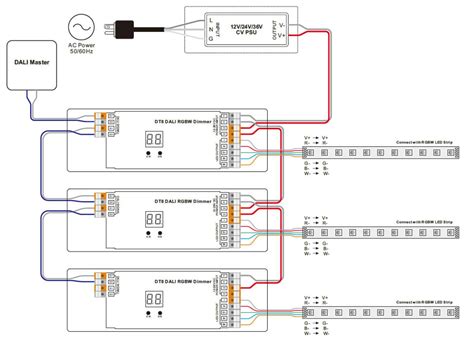

Can I connect multiple LED strips to one power supply?

Yes, you can connect multiple strips to a single power supply as long as the total combined wattage of all strips does not exceed 80 percent of the power supply's total wattage capacity. It is recommended to wire these in a parallel configuration—where each strip runs directly back to the power supply—to avoid cumulative voltage drop.

Why do my LED strips turn a different color or dim at the end?

This is caused by voltage drop, which occurs as electricity travels through the strip's thin copper traces. As the current travels, the resistance causes the voltage to decrease, resulting in dimming or color shifting, particularly in RGB strips. To fix this, connect the end of the strip directly to the power supply with an auxiliary wire.

Do I need a dimmer for my LED strip lights?

While not strictly required, a dimmer allows you to adjust the intensity and color temperature to suit your environment. If you choose to install one, ensure the dimmer is compatible with the LED driver's dimming protocol, such as PWM (Pulse Width Modulation) or 0-10V, to avoid buzzing or strobing.

Can LED strip lights be wired in series?

Wiring LEDs in a series "daisy chain" beyond the manufacturer's specified maximum length is discouraged. Doing so places an excessive electrical load on the copper traces of the first strip in the chain, leading to overheating and potential fire hazards. Always prioritize parallel wiring configurations for safety and consistent illumination.
