How To Wire HEI Distributor: The Ultimate Installation And Hookup Guide
Upgrading to or wiring a High Energy Ignition distributor simplifies an engine's electrical layout by housing the ignition coil directly under the cap while delivering a high-output spark of up to 50,000 volts. Proper installation requires sourcing a dedicated 12-volt ignition feed that bypasses old, resistive wiring harnesses to prevent chronic misfires, hard starts, and premature module burnout.
Pre-Operation & Equipment Checklist
Upgrading a vintage engine or replacing an electronic ignition setup with an HEI (High Energy Ignition) distributor requires careful preparation. Because HEI units draw more amperage than stock points-style systems, verifying your power supply and mechanical timing before turning the key prevents electrical damage and backfires.
- Essential Tools and Materials: 10-gauge or 12-gauge automotive primary wire, heavy-duty ring terminals, a digital multimeter, a timing light, a standard socket set, a wire stripper and crimper, and insulating heat shrink tubing.
- Prerequisite Knowledge & Standards: Familiarity with top-dead-center (TDC) compression stroke positioning, basic 12-volt automotive circuitry, and standard ignition timing procedures.
- Budget and Time Benchmarks: Estimated completion time is 1 to 2 hours, with an estimated material cost ranging from 15 to 40 dollars if dedicated relay kits and heavy-gauge wire are required.
Step-by-Step HEI Distributor Wiring and Installation
Step 1: Disconnect Power and Remove the Old Distributor
Begin by disconnecting the negative battery cable to prevent accidental electrical shorts. Mark the exact orientation of the existing distributor rotor relative to the engine block and firewall using a paint pen or scribe, and note the position of the vacuum advance canister. Remove the hold-down clamp and bolt, then carefully pull the old distributor up and out of the intake manifold, allowing the oil pump drive shaft to clear.
Step 2: Drop in the HEI Distributor and Set Initial Timing
Lower the HEI distributor into the engine block, ensuring the oil pump shaft engages properly with the bottom of the distributor gear. Because HEI housings are generally wider than stock points distributors, rotate the housing slightly so the vacuum advance and power terminals clear intake runners, valve covers, and firewall obstacles. Align the rotor to point precisely at the cylinder number one terminal on the new cap, matching your pre-removal reference marks, and snug the hold-down clamp loosely.
Step 3: Run a Dedicated 12-Volt Ignition Feed Wire
Locate a true 12-volt ignition source that supplies power exclusively when the key is in the "Run" and "Start" positions. Avoid using old factory resistance wires or ballast resistor wires, which drop voltage to roughly 9 volts and cause weak spark performance with HEI modules. Run a fresh 10-gauge or 12-gauge wire directly from the ignition switch or a dedicated relay fed by the battery straight to the bat terminal on the HEI distributor cap.
Warning: Never connect an HEI distributor to a factory resistance wire. Low voltage forces the ignition module to work harder, leading to overheating, sudden engine stalling, and permanent electronic failure.
Step 4: Connect Tachometer and Power Terminals
Plug your newly run 12-volt power lead into the terminal marked BAT on the side of the HEI distributor cap, ensuring the weather-pack connector locks securely. If your vehicle features an aftermarket tachometer, connect its signal wire to the terminal marked TAC right next to the BAT connection. Double-check that all external wires are tucked away from hot exhaust manifolds, sharp brackets, and moving fan belts.
Pro-Tip: Always apply a small amount of dielectric grease inside the power connector plug to prevent moisture corrosion and ensure a solid, long-lasting electrical connection.
Step 5: Verify Timing and Finalize Installation
Reconnect the negative battery cable, start the engine, and immediately check base ignition timing using a timing light with the vacuum advance temporarily plugged. Rotate the distributor housing clockwise or counter-clockwise until your target idle timing specification is met, then firmly tighten the hold-down clamp bolt. Road-test the vehicle under various loads to confirm smooth acceleration without spark knock or hesitation.

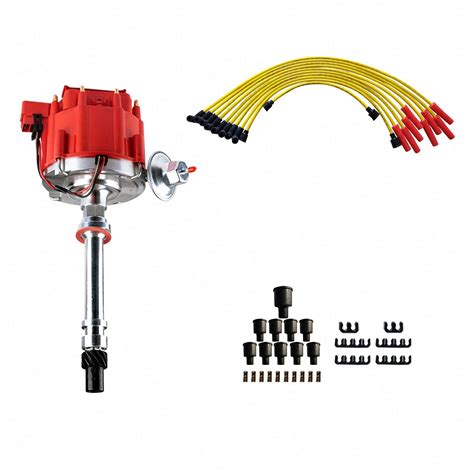

Hei Distributor Spark Plug Wires at Arthur Dwyer blog
HEI Wiring vs. Stock Ignition Technical Comparison
| Technical Parameter | Factory Points Ignition | Traditional HEI System |
|---|---|---|
| Operating Voltage | 7V to 9V (via Ballast Resistor) | Full 12V to 14.4V Direct Feed |
| Coil Location | External Firewall or Fender | Integrated Inside Distributor Cap |
| Spark Plug Gap | 0.035 Inches | 0.045 to 0.060 Inches |
| Secondary Voltage Output | 20,000 to 30,000 Volts | Up to 50,000 Volts |
| Required Wire Gauge | 16-Gauge or 18-Gauge Resistance Wire | 10-Gauge or 12-Gauge Standard Wire |
Common Installation Errors and Field Fixes
- Root Cause: Engine cranks smoothly but refuses to start or fires erratically.
- Actionable Fix: Verify that the 12-volt power wire is plugged into the terminal labeled BAT and not the TAC terminal by mistake. Swap the wires if crossed and retest.
- Root Cause: Sudden engine stalling after running for 10 to 15 minutes.
- Actionable Fix: Check the voltage drop at the BAT terminal while the engine is running. If voltage falls below 11.5 volts, you are still running through an inline resistance wire and must run a dedicated heavy-gauge line from the ignition switch.
- Root Cause: Severe radio static or tachometer jumping erratically.
- Actionable Fix: Ensure the engine block and chassis have heavy ground straps installed. HEI systems produce high electromagnetic interference that requires solid grounding of the cylinder heads to the firewall and battery negative terminal.
Frequently Asked Questions
Can I use my old ignition coil with an HEI distributor?
No, an HEI distributor utilizes an internal coil housed directly beneath the distributor cap, rendering external canister-style coils obsolete and incompatible with the cap's internal spring rotor button. Removing the old external coil cleans up the engine bay and eliminates extra wiring failure points.
Why does my engine backfire through the exhaust after installing an HEI?
Backfiring typically indicates that the distributor dropped in 180 degrees out of phase, placing the spark plug firing order on the exhaust stroke instead of the compression stroke. Pull the number one spark plug, verify top dead center on the compression stroke, and re-index the distributor oil pump shaft and plug wires accordingly.
Do I need a special ignition switch for an HEI conversion?
You do not need a new ignition switch, but you must bypass any factory resistance wire or ballast resistor block located between the switch and the engine bay. Running a relay triggered by the original ignition wire is the safest method to deliver full battery voltage to the HEI unit.
What is the correct spark plug gap for an HEI system?
Because HEI distributors produce a much stronger spark than older points systems, you can open the spark plug gap up to between 0.045 and 0.060 inches. A wider gap exposes a larger flame front to the air-fuel mixture, improving idle quality, throttle response, and overall fuel combustion efficiency.
How do I test if my HEI ignition module is bad?
If your engine loses spark entirely, take the distributor to a local auto parts store for bench testing, or use a multimeter to check for continuity and voltage drops across the module terminals. A failed module usually shows complete electrical breakdown once the engine compartment reaches operating temperature.
Upgrade your classic vehicle's ignition reliability today by installing a properly fed High Energy Ignition distributor for crisp throttle response and effortless cold starts.
