How To Wire A Boat Switch Panel: Marine Electrical Installation Guide

Wiring a marine switch panel requires marine-grade tinned copper wire, proper fuse or circuit breaker protection, and waterproof heat-shrink terminals to withstand harsh saltwater and moisture environments. By following American Boat and Yacht Council (ABYC) standards for gauge sizing and circuit protection, you ensure safe, reliable distribution of 12-volt DC power to your vessel's essential accessories.

Marine Electrical Planning and Equipment Selection

Executing a professional marine panel upgrade demands specific tools, high-grade materials, and adherence to established electrical safety codes. Marine environments present unique challenges due to vibration, humidity, and galvanic corrosion. Using standard automotive parts leads to premature failure, voltage drop, and potential fire hazards.

• Essential Gear, Tools, and Materials:




  • Marine-grade tinned copper wire (type ABYC BC-5W2) in appropriate gauges (typically AWG 14, 12, and 10).
  • Pre-wired or modular toggle/rocker switch panel with integrated circuit breakers or fuses.
  • Ratcheting wire terminal crimper and a thermal heat gun.
  • Adhesive-lined heat-shrink butt connectors, ring terminals, and quick-disconnect spades.
  • Digital multimeter for continuity and voltage drop testing.
  • Waterproof wire markers, zip ties, and non-conductive mounting hardware.

• Mandatory Prerequisite Standards and Knowledge:




  • Familiarity with ABYC E-11 standards governing AC and DC electrical systems on boats.
  • Understanding of Ohm's Law (Voltage = Current × Resistance) to calculate accurate wire ampacity and load limits.
  • Working knowledge of positive (typically red or yellow for DC negative) circuit identification.

• Estimated Budget and Duration Benchmarks:




  • Budget: Between $80 and $300 depending on switch count, panel material (aluminum vs. polycarbonate), and accessory relays.
  • Duration: 3 to 6 hours for a complete removal of legacy wiring and clean installation of a new multi-gang panel.

Step-by-Step Marine Switch Panel Installation

Step 1: Disconnect Power Sources and Remove the Legacy Panel

Before touching any wiring, completely isolate the vessel's electrical system by turning off the main battery switch or disconnecting the negative terminal of the 12-volt battery bank. Unscrew the legacy switch panel carefully, pulling it out slowly to expose the existing wire harness. Label every individual wire with masking tape or printed tags indicating its destination (e.g., Bilge Pump, Navigation Lights, Spreader Lights) before cutting or detaching them from the old switches. Inspect the removed wire ends; if the copper strands appear black, oxidized, or brittle, clip them back until bright, clean metal is revealed.

Warning: Never work on a live marine DC circuit. A stray metallic tool bridging a hot bus bar and an aluminum dash panel can cause an instant arc flash, severe burns, or battery explosion.

Step 2: Establish the Negative Return Bus and Positive Feed

Modern marine switch panels typically require a dedicated positive supply wire from the battery or fuse block, as well as a connection for indicator lights and backlighting. Run a properly sized primary positive feed wire—protected by a main circuit breaker or fuse within seven inches of the power source—to the main positive bus bar of the new panel. Next, establish a clean negative return path or grounding bus if your switches incorporate LED indicator lights that require a dedicated ground wire. Secure all runs along existing hull stringers using marine-grade cushioned clamps or UV-resistant zip ties every 18 inches to prevent chafing from vessel vibration.

Step 3: Wire Accessory Loads to Individual Switch Terminals

Connect the positive feed wire of each individual accessory (such as a livewell pump or VHF radio) to the load terminal of its designated switch. Ensure that every output branch circuit is protected by an appropriately rated fuse or thermal circuit breaker matching the maximum current draw of the attached device plus a safety margin. Crimp marine-grade ring or spade terminals onto the wire ends using a calibrated ratcheting crimper, then seal the connection using a heat gun until the adhesive lining melts and oozes from the ends of the tubing.

Pro-Tip: Always coat bare copper connections and terminal screws with a thin layer of dielectric grease or terminal sealing spray to block moisture infiltration and inhibit the formation of white corrosion crusts.

Step 4: System Testing and Commissioning

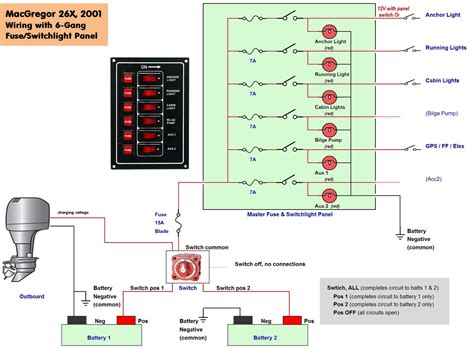

With all accessory wires secured to their respective switches and the negative return paths unified, double-check your connections against your wiring diagram. Reconnect the vessel's main battery switch. Systematically test each switch in the panel, verifying that the indicator lights illuminate correctly and that the corresponding accessory powers up without delay. Use a digital multimeter across the load terminals to confirm that voltage drop remains under three percent for critical navigation electronics while under full operational load.

Wire Gauge Selection and Ampacity Reference

Common Installation Failures and Field Fixes

• Symptom: Switch indicator LED stays dimly lit when the switch is in the off position.




  • Root Cause: Incorrect grounding configuration where the negative return path is bleeding back through a shared accessory ground loop.
  • Actionable Fix: Isolate the indicator ground wire and run it directly to a dedicated DC negative bus bar rather than tying it into the load side of the accessory.

• Symptom: Circuit breaker trips immediately upon activating a high-draw accessory like a washdown pump.




  • Root Cause: Undersized wire gauge causing excessive resistance, or a circuit breaker amperage rating that is too low for the startup surge of the motor.
  • Actionable Fix: Calculate the correct wire size using ABYC ampacity charts, upgrade the wire gauge if necessary, and verify that the breaker matches the manufacturer's specified running and startup load requirements.

• Symptom: Intermittent power failure to accessories when the boat hits choppy water.




  • Root Cause: Loose screw terminal connections, or the use of non-tinned automotive crimp connectors that have loosened due to hull vibration.
  • Actionable Fix: Replace all standard crimp connectors with adhesive-lined heat-shrink terminals, apply star washers to stud connections, and secure wire harnesses tightly to prevent mechanical strain.

Frequently Asked Questions

Do I need a fuse for every switch on my boat panel?

Yes. Every branch circuit originating from a switch panel must have overcurrent protection sized to protect the wire leading to the accessory. If a short circuit occurs down the line, the fuse or circuit breaker will trip instantly, preventing the wire insulation from melting and starting an electrical fire.

What is the difference between automotive wire and marine-grade wire?

Automotive wire typically consists of a single strand of bare copper wrapped in standard PVC insulation, which allows moisture to wick up the strands via capillary action and corrode the copper. Marine wire utilizes finely stranded copper coated in tin (tinned copper), which resists oxidation and corrosion in damp, salt-air environments while offering superior flexibility against vibration.

Can I use toggle switches instead of rocker switches on my boat?

Both toggle and rocker switches function effectively on a boat, provided they feature weather-resistant boots or sealed internal components with an appropriate IP (Ingress Protection) rating. Rocker switches are generally preferred on modern consoles because they sit flush, reduce snag hazards, and frequently incorporate integrated LED illumination.

How do I calculate what size wire I need for a new accessory?

You must determine the total length of the wire run (from the power source to the device and back to the negative bus) and the maximum current draw in amps of the accessory. Using an ABYC voltage drop calculator, select a wire gauge that ensures a voltage drop of no more than three percent for critical electronics or ten percent for non-critical loads like cabin lights.
