How To Use Tile Spacers: The Professional's Guide To Flawless Grout Lines

Achieving professional-grade tile installations relies heavily on the correct deployment of tile spacers to maintain uniform joint widths, absorb structural thermal expansion, and ensure straight sightlines. Mastering these small plastic accessories prevents lippage, accommodates substrate movement, and guarantees a structurally sound surface whether you are installing porcelain floor tiles or ceramic wall mosaics.

Essential Preparation and Material Checklist

Laying tile without an organized setup leads to uneven joints, wandering grout lines, and compromised waterproofing. Professional tile setters rely on a rigorous inventory of specialized tools and materials before mixing the first batch of thin-set mortar.

• Essential Gear and Tools: Premium tile spacers (sizes ranging from 1/16-inch to 1/4-inch), rubber mallet, notched trowel (sized 1/4-inch by 1/4-inch up to 1/2-inch by 1/2-inch depending on tile format), laser level, chalk line, tile wet saw, margin trowel, and buckets.
• Prerequisite Knowledge and Standards: Substrates must meet ANSI A108 standards, remaining flat within a tolerance of 1/8-inch in a 10-foot radius. Verify that waterproofing membranes are fully cured and that layout lines establish a balanced grid without narrow sliver cuts at opposing walls.
• Budget and Duration Benchmarks: Plan for material costs of roughly fifteen to thirty dollars for a bulk box of spacers. Allocate twice as much time for dry-fitting and layout verification as you do for actual mortar application, ensuring complex geometric patterns are locked in prior to setting.

Step-by-Step Tile Spacer Installation Workflow

Step 1: Establish Your Centerlines and Dry-Fit the Field

Calculate the center point of the room by snapping intersecting chalk lines across the floor. Lay out the first quadrant of tiles along these lines without mortar to verify how cuts will fall at the perimeter boundaries. Adjust your center lines if necessary to ensure perimeter cuts are at least half a tile wide.

Pro-Tip: Never start laying tile directly against a wall unless you have confirmed that the wall is completely square and plumb. Use your chalk lines as the primary reference point to prevent compounding layout errors.

Step 2: Apply Thin-Set Mortar and Set the First Tiles

Mix your modified or unmodified thin-set mortar according to the manufacturer specifications until it reaches a peanut butter consistency. Comb the mortar onto the subfloor using the appropriate notched trowel, pulling ridges in a single straight direction to promote air collapse when the tile is pressed. Set your anchor tile at the intersection of the centerlines, pressing and twisting it slightly perpendicular to the trowel ridges to achieve maximum transfer.

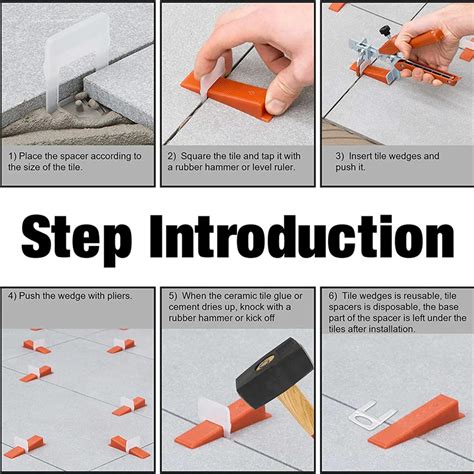

Step 3: Insert Spacers at Intersections and Margins

Place your chosen tile spacers at the corners where four tiles meet, or along the grout joints between two tiles. Professional tile setters generally prefer placing spacers vertically into the intersection cross rather than lying them flat inside the joint channel. This upright placement prevents the spacers from sinking into the wet thin-set mortar and makes extraction significantly easier before the adhesive cures.

Warning: Do not push spacers deeply into the wet mortar bed. If a spacer becomes submerged in thin-set, it will obstruct the grout penetration later and may telegraph through thin light-colored grouts as a discoloration.

Step 4: Continuously Monitor Plumb, Level, and Spacing

Press each successive tile firmly into the mortar bed, sliding it snug against the spacers. Use a 4-foot spirit level or a laser level across multiple tiles to check for lippage—an uneven transition from one tile edge to the next. If a tile is sitting too low, lift it, add a small dab of mortar, and reset it. Tap stubborn tiles gently with a rubber mallet, always checking alignment against your spacer guides.

Step 5: Remove Spacers Prior to Grouting

Allow the thin-set mortar to set for a minimum of 12 to 24 hours depending on environmental humidity and temperature. Once the adhesive has cured and the tiles are rigidly locked in place, pinch the upright spacers with needle-nose pliers and pull them straight out. Inspect all channels to ensure no plastic remnants or dried mortar blobs remain inside the grout lines before you begin the grouting process.

Tile Spacer Dimensions and Application Parameters

Common Installation Failures and Field Fixes

• Root Cause: Spacers left in joints permanently and covered with grout. Actionable Fix: Dig out the grout and plastic spacer using a manual scoring knife or oscillating multi-tool outfitted with a carbide grout-removal blade, then refill the void with matching grout.
• Root Cause: Tiles shifting out of alignment while setting due to oversized spacers or loose mortar. Actionable Fix: Incorporate a tile leveling system (wedges and clips) alongside your spacers to lock tile faces flush while the mortar cures.
• Root Cause: Grout lines wandering or bowing across a long span. Actionable Fix: Re-snap intermediate chalk lines every three rows and use spacer wedges to dynamically adjust minor sizing discrepancies inherent in ceramic manufacturing batches.

Frequently Asked Questions

What size tile spacer should I use for porcelain floor tiles?

For rectified porcelain tiles with precision-ground edges, a 1/16-inch or 1/8-inch spacer is standard to create a sleek, contemporary look. If your porcelain tiles have pillowed or cushion edges, step up to a 3/16-inch spacer to visually mask minor dimensional variations between individual pieces.

Can tile spacers be left in the wall permanently?

Leaving tile spacers in the wall is a poor installation practice because they reduce the depth available for grout adhesion. Shallow grout lines frequently crack, flake out, or discolor over time when applied over buried plastic spacers. Always extract them after the thin-set mortar has set.

Should I use traditional spacers or a tile leveling system?

Traditional cross spacers excel at controlling horizontal joint width, whereas tile leveling clips and wedges solve the vertical plane by eliminating lippage between uneven tile edges. For large-format tiles exceeding 15 inches on any side, combining standard spacers with a wedge-based leveling system yields the highest quality finish.

When is the safest time to remove tile spacers?

Remove your spacers after the thin-set mortar has fully cured, typically between 12 and 24 hours after setting the tile. Removing them while the mortar is still wet risks knocking the surrounding tiles out of alignment or pulling them into the joint channel.

Elevate your next remodeling project by combining precise layout geometry with professional-grade setting techniques for a durable, aesthetically striking tile installation.
