How To Use An FX Loop On An Amp: The Professional Guide To Signal Chain Optimization
An effects loop is a patch point located between an amplifier’s preamp and power amp stages, allowing you to insert time-based effects like delays, reverbs, and modulation after the distortion stage. By bypassing the front-end input, you maintain signal clarity and prevent the muddy, washed-out tones that occur when placing gain-heavy effects before a high-gain preamp.
Essential Prerequisites and Hardware Checklist
Before integrating your effects loop, you must understand the distinction between instrument-level and line-level signals. Placing effects in the loop is not a universal solution; it is a surgical tool designed for specific types of signal processing.
- Essential Gear Requirements
- High-quality shielded instrument cables (minimum of two additional cables beyond your guitar cable).
- An amplifier equipped with Send and Return jacks, typically located on the rear chassis.
- Effects pedals primarily categorized as time-based (Delay, Reverb, Chorus, Flanger, Tremolo) or volume-based (Noise Gates, Volume pedals).
- Prerequisite Knowledge: Understanding gain staging. You must ensure your pedal’s input gain is adjusted to handle the voltage output from the amp’s send jack.
- Estimated Duration: 5 to 10 minutes for physical connection and gain calibration.
Step-by-Step Integration of the Effects Loop
Integrating your pedals into an amplifier’s effects loop requires a precise sequence to avoid ground loops or impedance mismatches. Follow these steps to ensure signal integrity.

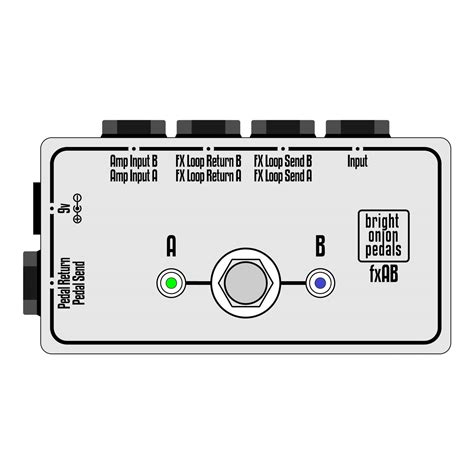

Step 1: Identifying the Loop Jacks
Locate the Send and Return jacks on the back of your amplifier. The Send jack carries the pre-amplified signal out of the amp, and the Return jack accepts the processed signal back into the power amp. If your amp has a series loop, the entire signal passes through your pedals. If it is a parallel loop, check for a mix knob, which allows you to blend the dry signal with the processed effect signal.
Step 2: Routing the Signal Path
Connect a shielded instrument cable from the amp's Send jack into the input of your first pedal. Continue the chain from the output of your last pedal back to the amp's Return jack.
Pro-Tip: Always keep these cables as short as possible. Because the signal has already been processed by the preamp, it is more susceptible to interference and high-frequency loss over long cable runs compared to a direct guitar-to-amp connection.
Step 3: Calibrating Gain Staging
Once connected, engage your pedals and play. If the signal is too loud or distorting the pedals, your amp’s Send level might be too hot. Many modern amplifiers include a dedicated Send Level or Loop Level control. Adjust this so the pedals receive a clean, strong signal without clipping the input of the effects units.
Warning: Never connect a pedal’s output directly to the amp’s Send jack, and ensure you do not use the Return jack as an input for your guitar. The voltage levels of a guitar and a power amp input are incompatible and can cause severe signal degradation or damage.
Step 4: Configuring Loop Modes
If your amplifier supports switchable loop modes, such as series or parallel, determine the requirements of your effect. Series loops are generally preferred for time-based effects where 100 percent of the signal needs to be processed. Parallel loops are superior for rack-mounted processors or older pedals that do not have a dry-kill function, as they allow you to maintain the natural analog tone of your amp’s preamp while adding the effect.
Marshall 1987X 50w Plexi Tube Amp Head w/ FX Loop - Chicago Music Exchange
Technical Specifications and Signal Matrix
The following table outlines the ideal placement of common pedal types relative to the amplifier’s signal path, distinguishing between the front of the amp (pre-preamp) and the effects loop (post-preamp).
| Effect Category | Typical Placement | Rationale |
|---|---|---|
| Overdrive/Distortion | Front of Amp | Shapes the core gain and harmonic character. |
| Wah/Compressor | Front of Amp | Reacts dynamically to guitar pickups and impedance. |
| Chorus/Flanger | Effects Loop | Modulates the signal after preamp harmonic clipping. |
| Delay/Reverb | Effects Loop | Prevents the delay tail from being distorted by the preamp. |
| Noise Gate | Effects Loop | Targets hiss generated by the high-gain preamp stage. |
Addressing Common Loop Malfunctions
Even with a proper setup, you may encounter phase issues or signal loss. Use these solutions to troubleshoot your rig effectively.
- Volume Drop Upon Activation
- Root Cause: Impedance mismatch between the amp’s send stage and the pedal’s input stage.
- Actionable Fix: Ensure the pedal is not set to an instrument-level pad if the amp is outputting line-level signal, or use a buffered pedal to boost the output impedance.
- Increased Hum and Ground Loops
- Root Cause: Multiple devices in the loop creating a ground loop through the AC power outlets.
- Actionable Fix: Utilize an isolated power supply for all pedals in the loop and verify that all equipment is plugged into the same power conditioner or outlet strip.
- Harsh, Thin Tone
- Root Cause: Inappropriate use of a parallel loop where the dry signal is being phase-canceled by the digital latency of the effect pedal.
- Actionable Fix: Set the pedal to 100 percent wet (Kill Dry mode) and use the amp’s internal loop mix control to balance the signal.
Frequently Asked Questions
Can I put my distortion pedal in the effects loop?
While you technically can, it is generally discouraged because the distortion pedal will be processing the already amplified, compressed signal from your preamp. This typically results in a fizzy, unpleasant, and uncontrolled tone that lacks the natural dynamics of an amplifier’s distortion.
What is the difference between a series and parallel loop?
A series loop interrupts the signal path completely, forcing the entire signal through your pedals. A parallel loop keeps a portion of your dry, unaffected signal and adds the effects signal to it, which is ideal for preserving your amp's raw tone when using effects that lack a blend control.
Why does my sound cut out when I plug into the effects loop?
This is usually caused by the physical switching mechanism inside the loop jacks. If you are not using the loop, these jacks often disconnect the internal signal path; if a cable is partially inserted or a jack is dirty, the signal will drop. Clean your jacks with contact cleaner and ensure cables are fully seated.
Do I need buffered pedals in my effects loop?
Buffers are highly recommended if you are using long cables to reach your pedalboard from the back of the amp. A buffer will maintain the signal strength and high-end frequency response that are otherwise lost due to capacitive loading in long cables.
Mastering your signal chain is the final step in achieving professional-grade tone that stands out in a mix. Experiment with your loop settings today to unlock the full potential of your amplifier's voicing.
