How To Test Water Heater Element With Multimeter: Step-by-Step Diagnostic Guide

Testing an electric water heater element requires isolating electrical power at the breaker panel, disconnecting the wiring leads from the element terminals, and measuring resistance using a digital multimeter set to the lowest Ohms scale. A functional 240-volt element typically registers a resistance reading between 10 and 30 Ohms across its terminals, while any reading showing infinite resistance (open loop/OL) or continuity between a terminal and the outer metal casing indicates a failed component requiring replacement.

Safety Protocols and Essential Equipment Checklist

Diagnosing an electric water heater involves working around high-voltage residential electrical circuits (typically 208V to 240V AC). Safe and accurate execution relies on proper preparation, zero-voltage verification, and precise measurement tools.

Required Diagnostic Gear and Tools

• Digital Multimeter (DMM): Capable of measuring resistance ($\Omega$) in low ranges (200 $\Omega$ scale) and AC voltage ($V\sim$). Auto-ranging or manual meters are both acceptable.
• Non-Contact Voltage Tester (NCVT): Rated for Category III (CAT III) electrical environments to perform initial field verification.
• Screwdrivers: Fully insulated Phillips (#2) and flat-head screwdrivers for panel removal and terminal screw manipulation.
• Socket Wrench or Element Wrench: 1-1/2 inch thin-wall element socket for removal if replacement is required post-test.
• Personal Protective Equipment (PPE): Voltage-rated insulating gloves, safety glasses, and non-conductive footwear.

Technical Prerequisites and Benchmarks

• Electrical Standard: Residential electric water heaters operate primarily on single-phase 240V circuits protected by a dual-pole 30-amp circuit breaker using 10/2 AWG copper wire.
• Estimated Duration: 20 to 30 minutes for full diagnostic procedures on both upper and lower heating elements.
• Budget Benchmark: $0 if tools are already owned; $15–$35 for a reliable digital multimeter and basic safety equipment.

Step-by-Step Multimeter Diagnostic Procedure

Follow this exact sequence to verify whether an upper or lower water heater element has suffered an open circuit, internal degradation, or a short circuit to ground.

Step 1: Disconnect Main Power at the Electrical Panel

1. Locate the main circuit breaker panel and identify the dedicated double-pole breaker serving the electric water heater (typically labeled 30A).
2. Flip the double-pole switch completely into the OFF position.
3. If the panel supports Lockout/Tagout (LOTO) safety protocols, apply a breaker lock to prevent accidental re-energization while working on the appliance.

Warning: Never rely solely on a wall switch or a thermostat dial to turn off power. Always shut off power directly at the main breaker panel to eliminate the risk of severe electrical shock or electrocution.

Step 2: Verify the Absence of AC Voltage

1. Remove the protective metal cover panels covering the upper and lower elements using an insulated screwdriver.
2. Carefully fold back the fiberglass insulation and remove the plastic protective protective shield covering the thermostat and element terminals.
3. Turn on your non-contact voltage tester and place it near all incoming wiring terminals on the upper thermostat.
4. Set your digital multimeter to AC Voltage Mode ($V\sim$ or $VAC$) set to a scale higher than 240 volts (typically 600V mode).
5. Touch one probe to the incoming line terminal L1 and the second probe to L2 on the upper thermostat. The meter must display 0.0 VAC.
6. Touch one probe to L1 and the other probe to the bare copper ground wire, then repeat for L2 to ground. All readings must confirm zero potential difference before proceeding.

Step 3: Isolate the Heating Element Terminals

1. Loosen the two screw terminals located on the face of the heating element using an insulated screwdriver.
2. Disconnect both connecting lead wires from the element terminals. Bend them away slightly so they make no contact with the element or the tank body.

Pro-Tip: Isolating the element by disconnecting its wires is mandatory. Leaving the thermostat wires connected will cause electrical feedback loops through the thermostat switches, generating false resistance readings on your multimeter.

Step 4: Perform the Element Resistance (Terminal-to-Terminal) Test

1. Turn the dial on your digital multimeter to the Resistance ($\Omega$) mode. If using a manual meter, select the lowest scale, typically 200 $\Omega$.
2. Touch the red and black meter probes directly together to check lead resistance. Note this baseline number (usually 0.1 to 0.3 $\Omega$).
3. Firmly press one multimeter probe against the left element terminal screw and the second probe against the right element terminal screw.
4. Observe the value shown on the digital display:


   • Normal Reading: A value between 10 $\Omega$ and 30 $\Omega$ indicates a continuous, functional internal resistance wire. Subtract your probe baseline resistance to get the net reading.

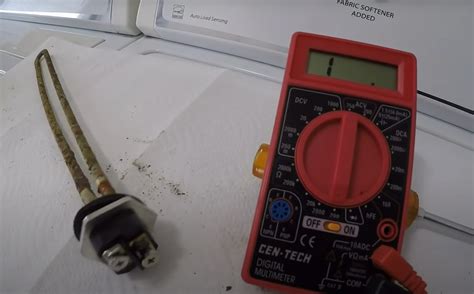

   • Infinite / Open Loop Reading: A reading of "OL", "1 .", or an unchanging infinite symbol indicates that the internal Nichrome resistance wire inside the element tube has burned out and broken. The element must be replaced.
   • Zero Ohms Reading: A reading approaching 0.0 $\Omega$ indicates a dead short between terminals, which will immediately trip the circuit breaker upon power application. The element must be replaced.

Step 5: Perform the Grounded Short Circuit (Terminal-to-Ground) Test

1. Keep the multimeter set to the lowest Resistance ($\Omega$) scale or switch it to the Audible Continuity ($\cdot\rangle\rangle$) mode.
2. Press one meter probe securely against one of the copper or screw terminals on the element.
3. Press the second meter probe firmly against an unpainted, clean metal section of the water heater tank casing or the brass/hex base of the element itself. Scrape away any rust or mineral deposits to ensure direct metal contact.
4. Repeat this test by keeping the second probe on the bare metal tank while moving the first probe to the opposite element terminal screw.
5. Analyze the reading:


   • Normal Reading: The meter display must show "OL" (Open Loop) or infinite resistance, and no continuity beep should sound. This confirms the internal energized element wire is completely insulated from the outer metal sheath.
   • Failed/Grounded Reading: Any numerical resistance value (e.g., 5 $\Omega$, 150 $\Omega$) or an audible continuity beep indicates that the heating element has ruptured and shorted to ground. This condition dangerous causes current leakage, trips GFCI/circuit breakers, or leaves water cold.

Technical Specifications Matrix for Water Heater Elements

The precise electrical resistance across a heating element depends on its nominal power rating (wattage) and operational voltage. Use the following baseline references calculated via Ohm's Law ($R = \frac{V^2}{P}$) to verify if your multimeter measurements fall within standard tolerance ranges ($\pm 10%$).

Diagnosing Unexpected Multimeter Readings and Related System Failures

When diagnostic measurements deviate from normal specifications, use these real-world failure patterns to isolate the root cause and execute the correct repair.

• Scenario 1: Multimeter reads "OL" across element terminals, but water is lukewarm.




  • Root Cause: The element's internal Nichrome wire has completely burned through due to dry-firing (operating without water contact), mineral buildup encasement, or age fatigue, leaving an open electrical circuit.
  • Actionable Fix: Turn off circuit power, drain the tank below the element level, unscrew the failed element with an element wrench, install a matching wattage/voltage replacement element with a new O-ring gasket, refill the tank completely, and purge air before restoring power.

• Scenario 2: Element resistance tests normal (e.g., 12.8 $\Omega$), but the double-pole breaker trips instantly when turned on.




  • Root Cause: The element has developed a hairline fracture along its outer metal sheath, causing an internal short to ground when high voltage is applied, or the upper/lower thermostat has welded contacts.
  • Actionable Fix: Re-run the Step 5 terminal-to-ground continuity test. If any reading other than "OL" appears when probing between a terminal and the outer hex base, replace the element. If the element passes the ground test, replace the shorted thermostat.

• Scenario 3: Both elements test within correct resistance ranges, but hot water runs out extremely fast.




  • Root Cause: The dip tube inside the cold water inlet has broken or dissolved, delivering cold water directly to the top of the tank instead of the bottom, or the lower thermostat has failed in an open state, preventing the lower element from energizing.
  • Actionable Fix: Test for 240V AC output across terminals T2 and L3 on the upper thermostat to verify it is transferring power down to the lower thermostat circuit. If power transfer fails, replace the upper thermostat. If electrical controls are functional, inspect and replace the plastic inlet dip tube.

Frequently Asked Questions

Do I need to drain the water heater tank before testing the element with a multimeter?

No, draining the tank is not required simply to test the element with a multimeter. Electrical resistance and ground continuity tests are conducted on isolated dry terminals outside the water cavity. You only need to drain the tank if testing confirms a failed element that requires physical removal and replacement.

Can I test a water heater element while the lead wires are still attached?

No, you must disconnect at least one wire—and ideally both wires—from the element screw terminals prior to testing resistance. Leaving the wires connected creates parallel paths through the thermostat circuitry, which will corrupt your multimeter readings and lead to inaccurate diagnostic conclusions.

What setting should my multimeter be on to test a heating element?

Set your multimeter to the Resistance mode, indicated by the Ohm symbol ($\Omega$). If your meter uses manual ranging, select the lowest scale, typically 200 Ohms. To check for a short circuit to ground, you can also use the audible continuity setting ($\cdot\rangle\rangle$).

Why does my water heater element test good, but I still have no hot water?

If the element shows proper resistance (10–30 $\Omega$) and no short to ground, the issue usually stems from a tripped High Temperature Limit Switch (ECO button) on the upper thermostat, a failed upper or lower thermostat that cannot switch power, or blown fuses in a disconnect box.

How do I know if my water heater element is dry-fired?

A dry-fired element occurs when power is supplied to the tank before it is completely filled with water. The dry element overheats within seconds, melting the internal filament. A dry-fired element will instantly show an "OL" (Open Loop) reading during a terminal-to-terminal resistance test.

Restore Safety and Performance to Your Water Heater

Accurately testing your water heater elements with a multimeter eliminates costly guessing games and helps pinpoint whether your system requires a minor thermostat adjustment, a simple element replacement, or full electrical service. If your diagnostics reveal a defective element, ensure you purchase a replacement matching the exact voltage and wattage ratings stamped on the unit's rating plate. Always verify the water tank is completely full and purged of trapped air before re-engaging the circuit breaker to protect your new components from premature failure.
