How To Test A Flame Rod: Professional Guide To Furnace Flame Sensor Troubleshooting

Testing a flame rod requires a digital multimeter set to measure DC microamps (µA) connected in series between the sensor lead and the control board. A functional flame sensor typically registers between 2.0 and 10.0 µA during steady combustion, while readings below 1.0 µA generally trigger a safety lockout due to carbon fouling, poor grounding, or cracked ceramic insulation.

Precision Diagnostics and Essential Safety Preparation

Before engaging with the electrical components of a high-efficiency furnace or boiler, a technician must understand the underlying physics of flame rectification. A flame rod does not measure heat; it utilizes the ionized particles within a flame to conduct a small electrical current. This process converts an alternating current (AC) signal from the control board into a direct current (DC) signal. If this signal is weak or absent, the integrated furnace control (IFC) will terminate the gas valve power to prevent an explosion.

To execute a successful diagnostic test, the following parameters and tools are required:

• Digital Multimeter (DMM): Must feature a DC microamp (µA) setting with a resolution of at least 0.1 µA.
• Alligator Clip Leads: Essential for maintaining stable, hands-free electrical connections during the ignition sequence.
• Abrasive Cleaning Material: Fine steel wool or a non-conductive scouring pad (avoid heavy-grit sandpaper which can leave silica deposits).
• Hand Tools: 1/4-inch and 5/16-inch nut drivers for removing the burner access panel and sensor mounting screws.
• Estimated Duration: 15 to 30 minutes.
• Safety Standards: Compliance with NFPA 54 (National Fuel Gas Code) and local electrical codes is mandatory.

Comprehensive Step-by-Step Flame Sensor Evaluation

Step 1: System Isolation and Visual Inspection

Safety begins with the removal of power and fuel sources. Locate the furnace service switch and toggle it to the off position. Once power is cut, remove the upper access panel to expose the burner assembly. Locate the flame rod, which is typically positioned on the opposite side of the burner rack from the igniter.

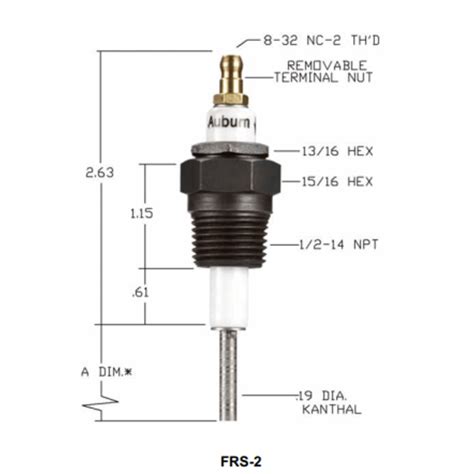

Inspect the porcelain insulator for hairline cracks or heat stress. A cracked insulator can cause the electrical current to bleed to the furnace chassis before reaching the flame, resulting in a false-negative reading. Examine the metal rod itself for heavy white oxidation or "soot" buildup. Even a microscopic layer of carbon can act as an insulator, resisting the flow of ions and dropping the microamp signal below the threshold required by the control board.

Warning: Never attempt to test a flame rod while standing on a damp floor or without ensuring the furnace is properly grounded. The flame rectification circuit relies entirely on a solid path back to the neutral/ground bond at the electrical panel.

Step 2: Configuring the Multimeter for Series Testing

Most novice technicians fail this step by attempting to measure voltage rather than current. To measure flame rectification, the multimeter must become a part of the circuit.

1. Set the multimeter dial to the DC µA (microamp) position.
2. If your meter has separate ports for current, ensure the red lead is in the low-current (µA/mA) jack and the black lead is in the COM (common) jack.
3. Disconnect the wire lead from the spade terminal on the end of the flame rod.
4. Connect one alligator clip from the meter to the terminal on the flame rod.
5. Connect the other alligator clip from the meter to the wire lead you just disconnected.

Pro-Tip: Ensure the alligator clips are not touching any part of the metal furnace cabinet. If the circuit shorts to ground through your meter leads, you may receive a reading of zero or potentially damage the control board’s sensing circuit.

Step 3: Initiating the Combustion Cycle

With the meter wired in series, restore power to the furnace and adjust the thermostat to call for heat. Observe the sequence of operations: the inducer motor will start, the pressure switch will close, and the igniter will begin to glow or spark.

As soon as the gas valve opens and the flame is established, the multimeter screen will show a jump in microamps. Note that the reading may fluctuate for the first two to three seconds as the flame stabilizes. You are looking for a steady, sustained DC microamp reading. If the flame lights but the meter shows 0.0 µA or a very low number (e.g., 0.2 µA), the furnace will likely shut down within 4 to 7 seconds as the safety timing expires.

Step 4: Analyzing the Microamp Thresholds

Compare your live reading against the manufacturer’s specifications, which are often found on the wiring diagram inside the blower door. While specific requirements vary, the industry standard for most modern silicon carbide or hot surface ignition systems is a minimum of 1.0 µA for continued operation.

If your reading is between 0.5 µA and 1.5 µA, the system is on the "margin of failure." This is often caused by a dirty rod. If the reading is above 2.5 µA, the rod and the circuit are functioning correctly. If the reading is steady but the furnace still shuts down, the issue likely resides in the control board’s logic or a faulty ground wire rather than the flame rod itself.

Step 5: Remediation through Precision Cleaning

If the test reveals a low microamp signal, the flame rod must be cleaned. Remove the mounting screw and carefully slide the rod out of the burner housing. Use a small piece of fine steel wool to lightly buff the metal rod until the oxidation is removed and the metal appears bright.

Do not use heavy-grit sandpaper, as the sand (silica) can melt under the intense heat of the burner and create a glass-like coating on the rod, which is an even more effective insulator than carbon. After cleaning, wipe the rod with a clean, dry cloth to remove any oils from your fingers. Reinstall the rod, reconnect the wiring (removing the multimeter), and perform a final test to ensure the furnace maintains a steady flame throughout the heating cycle.

Comparative Metrics for Flame Sensing Systems

Advanced Troubleshooting for Persistent Failures

Even with a clean rod, certain environmental and electrical factors can interfere with the flame rectification process. If your microamp readings remain inconsistent, investigate the following scenarios.

Scenario 1: Intermittent Lockout with Clean Sensor

• Root Cause: Loose or corroded ground bonding. The flame rectification circuit uses the burner head and the furnace chassis as the "return" path for the DC signal. If the burner is rusty or the ground wire back to the panel is loose, the resistance becomes too high for the microamp signal to travel.
• Actionable Fix: Remove the burner mounting screws and clean the contact points with a wire brush. Ensure the furnace cabinet is grounded to a copper water pipe or a dedicated grounding rod as per local codes.

Scenario 2: Reading Fluctuates Wildly During Burner Operation

• Root Cause: Poor flame-to-rod contact, often called "flame lifting." If the gas pressure is too high or the primary air mix is incorrect, the flame may physically lift off the burner head. This breaks the electrical bridge between the rod and the ground.
• Actionable Fix: Use a manometer to check the gas manifold pressure. Adjust the pressure to the nameplate specification (typically 3.5" W.C. for natural gas) to ensure the flame remains "lazy" enough to envelop the sensor rod completely.

Scenario 3: Zero Microamps Despite Visible Flame

• Root Cause: Internal failure of the Integrated Furnace Control (IFC) board or a broken lead wire. If the board is not sending the initial AC voltage to the rod, no rectification can occur.
• Actionable Fix: Check for AC voltage (usually 80V to 120V) between the flame sensor terminal and ground while the igniter is active. If no voltage is present, the control board’s sensing circuit has failed and the board must be replaced.

Scenario 4: Immediate Lockout with New Sensor

• Root Cause: Reversed Polarity at the primary power supply. If the hot and neutral wires are reversed at the furnace junction box, the rectification circuit cannot establish a reference to ground.
• Actionable Fix: Use a voltmeter to verify that the black (hot) wire is connected to the L1 terminal and the white (neutral) wire is connected to the L2/N terminal. Ensure there is 0V between neutral and ground.

Frequently Asked Questions

Can I test a flame rod with a standard voltmeter?

A standard voltmeter cannot measure the microamp signal required to diagnose flame rectification. You must use a multimeter that specifically features a DC µA setting, as the signal is too small for the standard milliamp (mA) or Volts settings to detect accurately.

How often should a flame rod be cleaned or replaced?

Flame rods should be inspected annually during preventative maintenance. While they do not have a set expiration date, they typically require cleaning every 1-3 years depending on the air quality of the home. Replacement is only necessary if the ceramic insulator is cracked or the metal rod is severely pitted or warped.

Why does the furnace run for 5 seconds and then shut off?

This is the classic symptom of a failed flame recognition test. The control board allows a "trial for ignition" period where gas flows and a flame is lit, but if it does not receive a microamp signal back from the flame rod within that window, it shuts down the gas valve as a safety precaution.

Is it possible to bypass a flame rod for testing?

You cannot safely bypass a flame rod. Because the circuit requires a specific DC rectification from the flame itself, simply jumping the terminal to ground or to another power source will not work and could permanently damage the furnace control board or create a significant fire hazard.

Does a flame rod work the same as a thermocouple?

No, they are different technologies. A thermocouple generates its own small millivoltage through heat (the Seebeck effect), usually found in older standing pilot systems. A flame rod uses the flame as a conductor for an existing circuit provided by a control board, found in modern electronic ignition systems.
