How To Test Electric Water Heater Thermostat: A Step-by-Step Diagnostic Guide
Testing an electric water heater thermostat requires a digital multimeter to measure continuity and voltage across the upper and lower thermostats. By isolating the electrical power, checking the high-temperature reset button, and performing resistance checks at 120 volts or 240 volts, you can accurately isolate whether the thermostat or the heating element has failed.
Pre-Operation & Equipment Checklist
Diagnosing a residential electric water heater thermostat involves working around 240-volt single-phase circuits. Prioritize safety by assembling the correct diagnostic equipment and verifying that all power sources are completely disconnected before opening the access panels.
- Essential Gear, Tools, and Materials:
- CAT III or CAT IV digital multimeter (capable of measuring AC voltage and resistance/continuity).
- Non-contact voltage tester.
- Phillips and flathead screwdrivers.
- Work gloves and safety glasses.
- Mandatory Prerequisite Knowledge and Standards:
- Familiarity with standard residential branch circuit wiring (typically 10 AWG copper wire connected to a double-pole 30-amp breaker).
- Understanding of Ohm's Law and basic multimeter dial settings for continuity (ohms) and alternating current (volts AC).
- Estimated Budget and Duration Benchmarks:
- Tool cost: $20 to $60 (if purchasing a basic multimeter).
- Duration: 30 to 45 minutes from shutdown to final testing.
Step-by-Step Diagnostic and Testing Workflow
Step 1: De-energize the Water Heater and Remove Access Panels
Locate your home's main electrical service panel and switch the double-pole breaker dedicated to the water heater to the OFF position. Go to the water heater unit, remove the upper and lower metal access panels, and peel back the fiberglass insulation covering the thermostats and heating elements. Use a non-contact voltage tester directly on the terminal screws of both thermostats to verify that zero electrical current is present.
Warning: Never bypass the step of verifying zero voltage with a non-contact tester. Electric water heaters operate on 240 volts, which can cause severe injury or fatal electrocution.
Step 2: Inspect the High-Temperature Limit Switch (Reset Button)
Examine the upper thermostat assembly for the red or yellow reset button, which sits directly above the upper temperature control dial. If this safety switch has tripped, the button will be popped out or loose. Press the button inward; a distinct click indicates that an over-temperature condition previously occurred. If the button clicks, turn the power back on and monitor the water heater to see if it heats or trips again, indicating a failing thermostat or stuck relay.
Step 3: Test Incoming Power and Upper Thermostat Continuity
Turn the electrical breaker back ON temporarily to test incoming power and functional switching. Set your digital multimeter to measure AC Voltage (greater than 250V AC). Place the multimeter probes on the two incoming terminal screws (labeled L1 and L3) on the upper thermostat; your meter should read approximately 240 volts. Next, test power to the upper heating element terminals (T1 and T2) while the water is cold. If the upper thermostat is calling for heat, you should read 240 volts across the element terminals. If 240 volts registers at the incoming side but does not pass through to the element when the water is cold, the upper thermostat is defective.
Step 4: Test the Lower Thermostat Operation
Turn the electrical breaker back OFF before proceeding to the lower control panel. The lower thermostat receives its power supply from the upper thermostat through a designated terminal path once the upper tank section reaches its target temperature. Set your multimeter to the ohms (resistance) setting or continuity mode. Disconnect the wires leading to the lower heating element terminals, place your meter probes across the lower thermostat's brass screw terminals, and rotate the dial up and down. A functioning thermostat will toggle between zero ohms (closed circuit allowing current) and infinite resistance (open circuit stopping current).

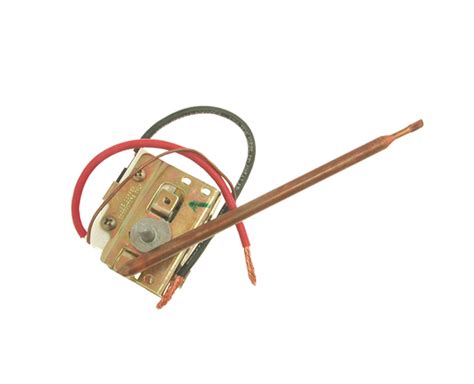

Are Electric Water Heater Thermostats Universal at Kathleen Perry blog
Technical Specifications and Thermostat Operating Parameters
| Parameter | Upper Thermostat Specification | Lower Thermostat Specification |
|---|---|---|
| Operating Voltage | 240 Volts AC (Standard Residential) | 240 Volts AC (Routed from Upper Thermostat) |
| Amperage Rating | Typically 25A to 30A resistive load | Typically 25A to 30A resistive load |
| Temperature Range | 90°F to 150°F (32°C to 65°C) | 90°F to 150°F (32°C to 65°C) |
| High-Limit Trip Point | Approximately 170°F to 180°F (77°C to 82°C) | Integrated into the Upper Unit |
Common Site Failures and Field Fixes
- Root Cause: The upper high-limit reset button trips repeatedly within minutes of restoring power.
- Actionable Fix: This points to a severe short circuit in the upper heating element, a failing lower thermostat causing a continuous loop, or a malfunctioning thermal sensor. Test the upper element for internal grounding using an ohmmeter set to the highest resistance scale.
- Root Cause: Water is completely cold, power is active at the upper thermostat, but zero voltage reaches the upper element.
- Actionable Fix: The internal bimetallic switch of the upper thermostat is stuck open or damaged. Replace the entire upper thermostat assembly, ensuring identical amperage and voltage ratings.
- Root Cause: Water is lukewarm, and the upper element is hot, but the lower element never activates.
- Actionable Fix: The internal switching mechanism on the upper thermostat fails to divert power down to the lower thermostat, or the lower thermostat itself is stuck open. Verify continuity across the lower thermostat terminals; replace whichever component fails the continuity test.
Frequently Asked Questions
Can I test an electric water heater thermostat while the power is turned on?
You can test incoming line voltage with the power on, but you must never test resistance or continuity with the power active. Testing continuity on a live circuit will instantly destroy your multimeter and create a severe arc-flash hazard. Always turn off the circuit breaker before performing resistance measurements.
How do I know if the thermostat or the heating element is bad?
Use your multimeter to isolate the components. If 240 volts reaches the thermostat terminals, but the thermostat fails to pass voltage to the element when the water is cold, the thermostat is bad. If voltage passes through the thermostat to the element, but the water remains cold, disconnect the element wires and test the element's internal resistance; a reading of zero ohms or infinite resistance indicates a burned-out element.
What causes an electric water heater thermostat to go bad?
Thermostats typically fail due to electrical surges, mineral scale buildup on the tank that alters thermal transfer rates, or normal wear and tear from thousands of thermal expansion cycles over the lifespan of the appliance.
Are upper and lower thermostats interchangeable?
No, they serve distinct operational functions. The upper thermostat contains the high-temperature safety reset switch and directs power either to the upper element or down to the lower thermostat. The lower thermostat solely regulates the lower heating element based on water temperature in the bottom of the tank.
Why does my water heater keep tripping the high-limit reset button?
The most common cause is a thermostat that fails to shut off, driving the water temperature past the safety limit of 170 degrees Fahrenheit. Alternatively, heavy sediment accumulation at the bottom of the tank can trap heat around the thermostat probe, triggering the safety mechanism prematurely.
Consult a licensed electrician or certified plumbing professional if you encounter complex wiring configurations or sustained electrical faults during your diagnostic routine.
