How To Set Well Pressure Switch: Complete Step-by-Step Adjustment Guide
Adjusting a well pressure switch requires safely shutting down the electrical supply, draining the pressure tank, and tuning the cut-in and cut-out nuts on the diaphragm mechanism to match your pump's specifications. Getting these calibration steps right prevents short cycling, ensures adequate water pressure, and extends the lifespan of your entire submersible or jet pump system.
Pre-Operation & Equipment Checklist
Properly calibrating a water well pressure switch demands a methodical approach to electrical safety and mechanical measurement. Before removing any housing covers, you must gather the correct equipment and verify that your system components can handle your desired PSI settings. Working with high-voltage circuits and pressurized water systems introduces distinct hazards, making structured planning essential for a successful adjustment.
- Essential Gear and Tools: Standard multimeter for verifying zero voltage, flathead and Phillips screwdrivers, needle-nose pliers, a 7/16-inch open-end wrench or socket for nut adjustments, a flashlight or headlamp, and a calibrated tire pressure gauge to check bladder tank pre-charge.
- Mandatory Prerequisite Knowledge: Familiarity with the 20/40, 30/50, and 40/60 PSI standard factory differentials. You must understand that the large nut controls the cut-in pressure (when the pump turns on), while the small differential nut controls the gap between cut-in and cut-out pressure (when the pump turns off).
- Time and Budget Benchmarks: The physical adjustment takes approximately 15 to 30 minutes. If you already own basic hand tools and a multimeter, the monetary cost is zero, though replacing a failing switch typically costs between thirty and sixty dollars.
Step-by-Step Pressure Switch Calibration Process
Step 1: Disconnect Power and Verify Zero Voltage
Before touching any internal components of the pressure switch, you must completely isolate the electrical circuit. Locate your main circuit breaker panel and flip the breaker that supplies power to the well pump. Return to the pressure switch mounted near the pressure tank, remove the plastic cover by unscrewing the central fastener, and use your multimeter set to AC volts to test across all live terminals. Confirm that the meter reads zero volts to ensure it is completely safe to proceed.
Warning: Well pressure switches typically handle 110V to 240V electricity. Touching live terminals inside the switch housing can cause severe shock or electrocution. Always double-check your voltage readings with a reliable multimeter.
Step 2: Drain the Pressure Tank and Check Bladder Pressure
With the power cut off, open the nearest downstream water faucet (such as an outdoor hose bibb or a laundry sink) to completely drain the water pressure tank. Let the water run until it stops completely and the pressure gauge on the tank reads zero PSI. While the system is completely empty of water, use a standard tire pressure gauge to check the air pressure valve (Schrader valve) located on top or bottom of the pressure tank.
Pro-Tip: The air pre-charge inside your bladder tank should always be set exactly 2 PSI below your desired cut-in pressure. For example, if you plan to set your switch to a 30/50 PSI range, your tank air pre-charge must be adjusted to 28 PSI before you turn the pump back on.
Step 3: Understand the Internal Adjustments

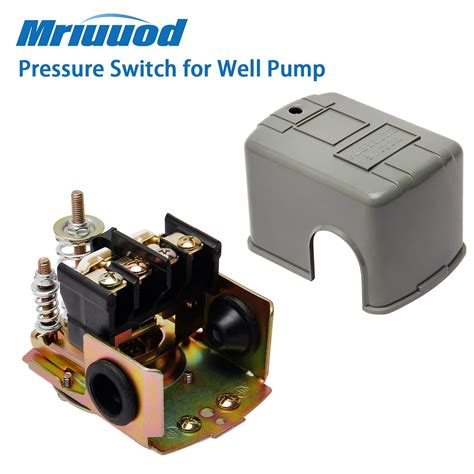

Examine the interior of the pressure switch housing to locate the two primary adjustment springs. The larger spring, controlled by the larger nut (often labeled Nut Number 1), dictates the cut-in pressure threshold. The smaller spring and nut control the differential, which is the exact amount of pressure added to the cut-in value to determine the cut-out point.
Step 4: Adjust the Cut-In and Differential Nuts
Close the faucet you opened earlier to allow the system to build pressure once power is restored. To raise the cut-in pressure, turn the large nut clockwise (typically one full turn raises the cut-in by about 2 PSI). To adjust the cut-out point without changing your cut-in pressure, turn the small differential nut clockwise to increase the cut-out pressure or counterclockwise to decrease it. Never adjust the nuts more than one full turn at a time before testing the results.
Step 5: Restore Power and Monitor Cycle Performance
Reinstall the safety cover over the switch terminals, then turn the circuit breaker back on to energize the well pump. Watch the system pressure gauge closely as the pump refills the pressure tank, noting the exact PSI reading when the pump clicks off (cut-out) and when it turns back on during water usage (cut-in). If the cycle points require further fine-tuning, repeat the power-down and adjustment steps until the pump operates within your desired parameters.
How to Adjust Pressure Switch on Well Pump | Angi
Well Pressure Switch Operating Standards
| Switch Type | Standard Cut-In PSI | Standard Cut-Out PSI | Recommended Tank Pre-Charge | Common Application |
|---|---|---|---|---|
| Standard Residential | 30 PSI | 50 PSI | 28 PSI | Most traditional homes with standard fixtures |
| High-Pressure Setup | 40 PSI | 60 PSI | 38 PSI | Multi-story homes or long pipe runs |
| Low-Pressure Setup | 20 PSI | 40 PSI | 18 PSI | Older irrigation systems or low-yield wells |
Troubleshooting Common Pressure Switch Malfunctions
- Root Cause: Sediment and mineral buildup inside the pressure switch nipple. Over time, hard water iron and calcium clog the small pipe inlet leading to the diaphragm.
- Actionable Fix: Turn off the power, drain the tank, remove the switch from the pipe nipple, and use a small drill bit or wire to clear out any mineral blockages. If corrosion is severe, replace the switch entirely.
- Root Cause: Pump short cycling due to a water-logged pressure tank or an incorrect differential setting. The pump turns on and off rapidly every few seconds, which can burn out the motor.
- Actionable Fix: Check the bladder tank air pre-charge while the tank is empty. If water sprays out of the Schrader valve, the internal bladder has ruptured and the tank must be replaced.
- Root Cause: Burned or pitted electrical contacts inside the switch caused by electrical arcing or age.
- Actionable Fix: Inspect the contact points inside the switch housing. If they appear blackened, melted, or deeply pitted, replace the entire pressure switch unit immediately to prevent electrical failure.
Frequently Asked Questions
Which nut on the pressure switch controls the pump cut-off pressure?
The small nut controls the differential, which is added to the cut-in pressure to determine the cut-out point. Turning the small nut clockwise increases the cut-out pressure, while turning it counterclockwise decreases it. You must adjust the large nut first if you want to change the baseline cut-in pressure.
Can I adjust a well pressure switch while the power is turned on?
No, you should never adjust a pressure switch while the system is energized. The adjustment springs are located close to high-voltage electrical contacts, creating a severe risk of accidental shock. Always flip the circuit breaker off and verify zero voltage before making adjustments.
What causes a well pressure switch to click continuously without shutting off?
Continuous clicking or failure to shut off usually indicates that the pump cannot reach the cut-out pressure threshold. This is typically caused by a failing pump impeller, a severe leak in the drop pipe inside the well, or a completely water-logged pressure tank.
How do I know if my pressure switch needs to be replaced?
If the switch fails to click on at the designated cut-in pressure, sticks in the closed position, shows visible physical damage or melting on the wire terminals, or fails to pass electrical continuity when closed, it must be replaced. Most standard mechanical switches last between five and ten years depending on water quality.
Ensure your home water system runs reliably by keeping your well components properly calibrated and maintained. Consult a licensed pump technician if you encounter persistent electrical issues or complex pressure fluctuations.
