Master The Telecaster Push-Pull Humbucker Setup: A Technical Modification Guide
Converting a Telecaster to utilize a push-pull humbucker configuration requires replacing the master volume or tone potentiometer with a DPDT (Double-Pole Double-Throw) switch pot to enable coil-splitting functionality. Successful implementation depends on accurately identifying 4-conductor humbucker wire color codes, maintaining a 500k Ohm impedance threshold for high-frequency retention, and ensuring the control cavity depth can accommodate the increased vertical profile of the push-pull component.
Pre-Modification Engineering and Component Selection
Before deconstructing the control plate of a Telecaster, a technician must evaluate the physical and electronic compatibility of the instrument. Standard Telecasters typically utilize 250k Ohm potentiometers and single-coil pickups. When transitioning to a humbucker, especially in the bridge or neck position, the electronic load must be recalibrated to prevent a "muddy" or muffled frequency response.
The primary objective of a push-pull setup in a Telecaster is usually coil-splitting, which allows the player to shunt one of the humbucker's coils to the ground, effectively returning the guitar to its native single-coil tonal character. This requires a 4-conductor lead wire on the humbucker. If your pickup only has a single braided shield or two wires, it cannot be split without invasive internal surgery on the pickup bobbins.
Technical Requirements and Tooling Checklist

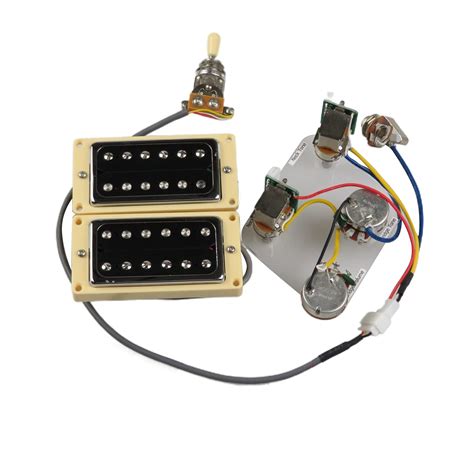

- Essential Hardware: One 500k Ohm Push-Pull Potentiometer (Audio Taper is preferred for volume; Linear Taper for tone), a 4-conductor humbucker, and 22 AWG gauge stranded copper hookup wire.
- Soldering Station Specs: A temperature-controlled soldering iron set between 650°F and 700°F (340°C - 370°C). Use 60/40 rosin-core solder or a high-quality lead-free equivalent with a separate flux pen.
- Measurement Tools: A digital multimeter for continuity testing and resistance verification, and a steel ruler to measure control cavity depth.
- Prerequisite Knowledge: Familiarity with the specific wire color codes of your pickup manufacturer (e.g., Seymour Duncan, DiMarzio, and Fender all use different color schemes for North/South starts and finishes).
- Estimated Duration: 60 to 90 minutes for a clean, professional-grade installation.
Systematic Installation: Converting Your Telecaster to a Coil-Split Powerhouse
Step 1: Control Cavity Assessment and Preparation
Begin by removing the strings and unscrewing the chrome control plate. Telecaster cavities are notoriously narrow and occasionally shallow. A standard potentiometer is roughly 12mm deep, whereas a push-pull DPDT pot can exceed 25mm in depth. Measure the distance from the bottom of the cavity to the top of the wood. If the cavity is less than 1.5 inches deep, you may need to use a "mini" push-pull pot or route additional wood from the floor of the cavity.
Once the plate is removed, desolder the existing connections from the volume or tone pot you intend to replace. Note the position of the "string ground" (usually a black wire coming from the bridge) and the output jack wires. Keep these organized to ensure a seamless re-integration later.
Step 2: Mapping the 4-Conductor Humbucker Leads
To achieve a push-pull split, you must identify the four wires coming from the humbucker. These represent the start and end of the North and South coils. In a standard series humbucking configuration, the "finish" of the first coil is soldered to the "start" of the second coil. This is known as the "series link."
For a Seymour Duncan humbucker, the standard color code is:
- Black: North Start (Hot signal)
- White: North Finish
- Red: South Finish
- Green: South Start (Ground)
- Bare: Baseplate Ground (Always Ground)
In this scenario, the Red and White wires are soldered together to create the series link. This link is the junction we will send to the push-pull switch.
Pro-Tip: Always solder the "Bare" wire to the back of the pot casing regardless of the switch position. This ensures the pickup remains shielded even when a coil is deactivated.
Step 3: Mechanical Mounting of the Push-Pull Potentiometer
Insert the push-pull pot into the control plate. Because Telecaster plates are metal, they act as a common ground. However, you must still provide a dedicated ground path between the casings of your volume and tone pots.
When tightening the nut on the push-pull pot, ensure the DPDT switch terminals (the six small pins on the bottom) are oriented so they do not touch the side walls of the cavity when the plate is reinstalled. If the cavity is shielded with conductive copper tape or graphite paint, any contact between a "hot" terminal and the wall will result in a total signal short.
Step 4: Soldering the DPDT Switch for Coil Splitting
The switch on the back of the pot consists of six lugs arranged in two columns of three. We will focus on one column to split a single humbucker.
- Identify the Middle Lug: Solder the "Series Link" (the Red and White wires in our Duncan example) to the middle lug of the DPDT switch.
- Identify the Top Lug (Closest to the pot body): Solder a small jumper wire from this lug to the back of the potentiometer casing (Ground).
- Operation Logic: When the pot is pushed in, the series link is "floating," and the humbucker operates normally in series. When the pot is pulled out, the switch connects the middle lug to the top lug, sending the series link to ground. This effectively kills one coil, leaving only the "Hot" coil active.
Warning: Excessive heat on the small DPDT lugs can melt the internal plastic headers of the switch. Apply heat for no more than 2-3 seconds per joint.
Step 5: Integrating the Master Volume and Tone Circuit
With the switch wired, you must complete the standard potentiometer connections. If you are using the push-pull pot for the Volume control:
- Connect the "Hot" lead from the pickup (Black wire) to the input lug (usually the left lug when looking at the pot with the lugs facing you).
- Connect the middle lug (Wiper) to the output jack's "Hot" terminal.
- Solder the right lug to the back of the pot casing to ground it.
If you are using 500k pots, your Telecaster will sound brighter. If the high-end is too aggressive, consider adding a 470k Ohm resistor in parallel when the single-coil bridge pickup is selected, or use a .022uF capacitor on the tone pot to smooth out the treble response.
Schaltplan: 3 Emg-Humbucker 1 Push-Pull Als Master-Vol - HHCT
Electronic Performance Benchmarks and Component Comparison
Selecting the right components is critical for balancing the output between a high-gain humbucker and a lower-output single coil (if you have a hybrid Telecaster setup). Use the following table to determine the optimal specifications for your build.
| Component | Standard Tele (Single Coil) | Humbucker-Equipped Tele | Tonal Impact |
|---|---|---|---|
| Potentiometer Value | 250k Ohms | 500k Ohms | Higher resistance prevents high-frequency bleed to ground. |
| Potentiometer Taper | Audio (Logarithmic) | Audio (Logarithmic) | Provides a natural human-ear volume swell. |
| Tone Capacitor | .047uF | .022uF | Lower values (.022uF) retain more mids when rolling back tone. |
| Switch Type | 3-Way Blade | 3-Way + DPDT | DPDT adds "hidden" modes without changing the aesthetic. |
| Wire Gauge | 22 AWG Cloth | 22 AWG PVC/Stranded | Stranded wire is more durable in cramped Tele cavities. |
Diagnostic Protocols for Common Circuit Failures
Even with precise soldering, the tight constraints of a Telecaster control cavity can lead to circuit issues. Use these diagnostic steps to resolve common failures.
- Problem: No sound when the pot is pulled out (Split Mode).
- Root Cause: The series link wires (Red/White) are not making a solid connection to the middle lug, or the ground jumper on the top lug is touching the middle lug accidentally.
- Actionable Fix: Re-flow the solder on the DPDT lugs. Ensure no stray wire strands are bridging the gap between the terminals. Use a multimeter to check for continuity between the middle lug and ground only when the switch is pulled.
- Problem: Excessive humming/buzzing that stops when you touch the strings.
- Root Cause: A missing or "cold" ground connection to the bridge plate.
- Actionable Fix: Ensure the black wire coming from the bridge is soldered securely to the back of the volume pot. Verify that all pot casings are linked together in a common ground loop.
- Problem: The humbucker sounds thin and weak in "normal" mode (Pushed In).
- Root Cause: The coils are wired out of phase or in parallel rather than series.
- Actionable Fix: Review the manufacturer's color code. Ensure the "Series Link" wires are specifically the Finish of Coil 1 and the Start of Coil 2. If they are swapped with the Hot or Ground leads, the coils will cancel each other out.
- Problem: Signal cuts out when the control plate is screwed back in.
- Root Cause: A "Hot" terminal on the push-pull switch or the 3-way blade is touching the conductive shielding or the side of the wood cavity.
- Actionable Fix: Apply a small piece of electrical tape to the side wall of the cavity where the switch sits. Ensure all wires are tucked away from the screw paths.
Frequently Asked Questions
Should I use a 250k or 500k push-pull pot for my Telecaster humbucker?
You should almost always use a 500k pot when a humbucker is involved. A 250k pot will load the humbucker too heavily, resulting in a loss of high-end clarity and a "dark" tone. If the single-coil settings become too bright, you can compensate by slightly rolling back the tone knob or adding a resistor to that specific switch position.
Can I split both a neck and bridge humbucker with a single push-pull pot?
Yes, a DPDT switch has two independent columns of lugs. You can wire the bridge series link to the left column and the neck series link to the right column. This allows one pull of the knob to split both pickups simultaneously.
What is the difference between coil-splitting and coil-tapping?
Coil-splitting involves shutting off one coil of a humbucker to achieve a single-coil sound. Coil-tapping involves a dedicated "tap" wire partway through a single coil's winding to reduce output and change the frequency response. Most Telecaster modifications use "splitting."
Do I need a treble bleed circuit for my push-pull volume pot?
A treble bleed is highly recommended when using 500k pots. It consists of a small capacitor (and sometimes a resistor) soldered across the input and output lugs of the volume pot. This prevents the tone from becoming muddy as you lower the volume, which is particularly noticeable on split humbuckers.
Upgrade Your Telecaster Tone Today
Mastering the electronics of your Telecaster unlocks a versatile tonal palette that bridges the gap between classic twang and modern high-gain saturation. By following these technical standards for push-pull integration, you ensure a professional, reliable instrument that performs flawlessly on stage and in the studio.
