How To See Tire Pressure On Honda Accord: A Comprehensive Driver’s Guide
Modern Honda Accord models utilize the Direct Tire Pressure Monitoring System (TPMS) which displays individual tire pressures on the Driver Information Interface (DII) located within the instrument cluster. Drivers can access these real-time metrics by navigating the steering wheel-mounted controls to the vehicle settings menu, ensuring optimal tire performance and safety benchmarks are maintained at the recommended 32 to 35 PSI range.
Essential Preparation and TPMS Calibration Prerequisites
Before accessing the tire pressure monitoring interface, it is essential to understand that the Honda Accord utilizes two distinct types of monitoring systems depending on the model year. Newer trims utilize sensors inside each wheel (Direct TPMS) that provide specific pressure data for each tire, while older models often utilize an indirect system that calculates pressure via wheel speed sensors and requires a manual calibration process rather than a live numerical readout.

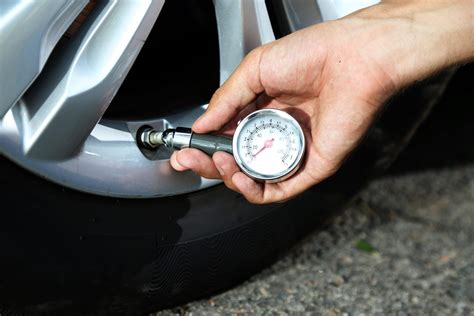

- Essential Equipment: A reliable digital tire pressure gauge for manual verification, a portable air compressor for adjustments, and the owner’s manual for specific trim-level PSI requirements.
- Mandatory Knowledge: Recognition of the TPMS warning light (a horseshoe shape with an exclamation point). If this light remains solid, one or more tires are low; if it flashes, there is a technical fault within the sensor system.
- Environmental Factors: Always measure tire pressure when the tires are "cold," meaning the vehicle has been parked for at least three hours or driven less than one mile. Heat generated by road friction expands the air inside the tire, leading to inaccurate, artificially high readings.
- Time Benchmark: Performing a full diagnostic check and air adjustment typically requires 5 to 10 minutes.
Procedural Workflow for Accessing Real-Time Tire Pressure Data
Step 1: Initialize the Instrument Cluster Interface
Sit in the driver’s seat and ensure the ignition is in the ON mode. On most modern Accord models (2018–present), locate the steering wheel-mounted controls on the left side. Use the scroll wheel or the "Menu" button to cycle through the Driver Information Interface (DII) display.
Step 2: Navigate to the Vehicle Information Menu
Scroll through the primary icons shown on the dashboard screen until you reach the "Maintenance" or "Vehicle Information" category. This is typically represented by an icon of a car or a wrench. Once highlighted, press the scroll wheel inward to select the menu.
Step 3: Select the Tire Pressure Monitor Screen
Once inside the Vehicle Information menu, use the scroll wheel to toggle through the available sub-pages. Look specifically for the "Tire Pressure" screen. On vehicles equipped with Direct TPMS, this screen will display a layout of the vehicle with a numerical PSI value for each of the four tires.
Pro-Tip: If the system displays "Calibration Started" instead of numerical values, your specific Accord trim uses Indirect TPMS. In this case, you cannot see specific pressure numbers on the dashboard; you must use a manual gauge to check each tire individually.
Step 4: Verify and Adjust Pressure
Compare the values on the screen to the recommended cold tire pressure listed on the Driver’s Door Jamb placard. If a tire indicates a pressure below the target, inflate it to the exact manufacturer specification using an accurate pump. The dashboard readout usually updates within a few minutes of driving as the wheel sensors register the new air volume.
How to check tire pressure correctly in winter and summer (PSI vs ...
Comparative Specifications for Honda Accord Tire Maintenance
The following table outlines the diagnostic requirements for the different TPMS architectures found across Honda Accord production years.
| Feature | Direct TPMS (Sensor-Based) | Indirect TPMS (Speed-Sensor Based) |
|---|---|---|
| Data Output | Numerical PSI for each wheel | No numerical output provided |
| Hardware | Pressure sensor inside each tire | ABS/Wheel speed sensor integration |
| Calibration | Automatic after driving | Manual calibration via DII settings |
| Accuracy | High (Real-time pressure) | Moderate (Detects relative pressure loss) |
| Sensor Battery | Approximately 7-10 year lifespan | N/A (Part of ABS system) |
Common Field Failures and Technical Troubleshooting
Despite the reliability of Honda's TPMS, owners occasionally encounter discrepancies or system errors that prevent accurate readings.
- System Displays "TPMS Calibration Failed":
- Root Cause: The calibration process was initiated while the vehicle was in motion or on uneven terrain.
- Actionable Fix: Park the vehicle on level ground, inflate all tires to the cold PSI listed on the door jamb, and re-initiate the calibration through the "Vehicle Settings" menu while the transmission is in Park.
- One Tire Shows "N/A" or Blank Space:
- Root Cause: A dead sensor battery or a damaged sensor following a tire change or impact.
- Actionable Fix: A diagnostic scan tool is required to identify which sensor is non-communicative. If the sensor is unresponsive, it must be replaced by a tire professional.
- Warning Light Remains On After Inflation:
- Root Cause: The system has not recognized the pressure change, or the threshold for the low-pressure trigger remains cached.
- Actionable Fix: Drive the vehicle for at least 15 minutes at speeds above 20 mph. This allows the system to receive updated signals from all wheel sensors to clear the alert automatically.
Frequently Asked Questions
Why does my Honda Accord not show specific tire pressures?
If your model year is generally pre-2018 or a lower trim level, it likely utilizes Indirect TPMS. This system does not monitor internal pressure but compares the rotational speed of tires; therefore, it cannot display numerical PSI values on the dashboard.
How often should I check my tire pressure manually?
Even with an active TPMS, industry standards dictate that you perform a manual check with a high-quality digital gauge at least once a month. This ensures the TPMS sensors remain calibrated and helps detect slow leaks that might not yet trigger a dashboard warning.
Does cold weather affect my tire pressure readings?
Yes, ambient temperature significantly impacts pressure. For every 10-degree Fahrenheit drop in outside temperature, your tire pressure typically drops by about 1 PSI. Always check your pressure during seasonal transitions to avoid a false TPMS alert.
Can I reset the TPMS light myself?
Yes, on virtually all Honda Accord models, you can reset the TPMS warning light through the "Vehicle Settings" menu on the DII display. Select "TPMS Calibration" and follow the screen prompts, ensuring all tire pressures have been physically verified first.
Maintain Your Honda Performance Standards
Ensuring your tire pressure is accurately monitored is the most effective way to improve fuel economy, extend tread life, and maintain precise handling. Consult your local authorized Honda service center if you suspect a faulty sensor or if the dashboard alerts persist after proper inflation and calibration.
