How To Repair A Fishing Rod: The Complete Guide To Blank, Guide, And Tip Restoration

Restoring a damaged fishing rod requires a precise understanding of composite material mechanics, thread tensioning, and chemical adhesive bonding. By mastering tip-top replacement, guide re-wrapping, and internal structural splicing, you can salvage compromised gear and return it to active service without sacrificing its original action or casting dynamics. This guide details the exact tolerances, tools, and technical procedures needed to perform permanent, professional-grade rod repairs at home.

Pre-Repair Inspection, Toolkit Assembly, and Workspace Setup

Before attempting any physical modifications, you must systematically evaluate the structural integrity of the damaged fishing rod. Not all structural failures are candidates for repair. A blank that has suffered a longitudinal split, splintering, or crushing from a car door or stepping incident cannot be reliably spliced because the structural hoop strength of the composite carbon fibers has been entirely compromised. However, clean transverse snaps, chipped guide inserts, and sheared tip-tops are highly repairable.

To execute these repairs successfully, prepare a clean, level, and well-ventilated workspace. You will need a rod cradle or a pair of V-notch cardboard boxes to support the rod blank horizontally, allowing it to rotate freely during wrapping and curing processes. Assemble the specialized components and materials outlined below to ensure your repairs meet industry performance standards.

Essential Equipment Checklist

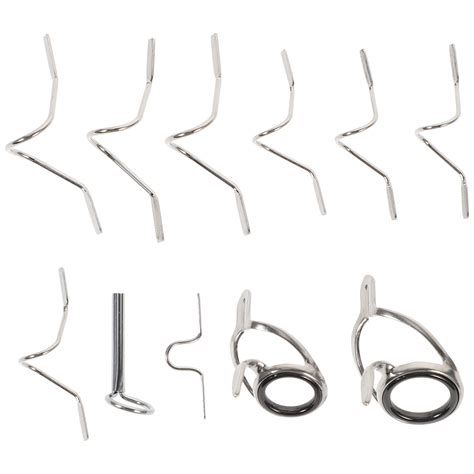

• Primary Repair Materials: Replacement guide frames (stainless steel, titanium, or chrome-plated), ceramic guide inserts (silicon carbide/SiC, Alconite, or aluminum oxide), matching tip-tops (measured to the exact sixty-fourth of an inch), and solid carbon fiber or fiberglass blank inserts for splicing.
• Adhesives and Finishes: Two-part high-build rod-wrapping epoxy (e.g., Flex Coat or U-40 Rod Bond), structural slow-cure marine-grade epoxy (24-hour cure), and high-temperature thermoplastic hot-melt tip-top adhesive.
• Wrapping Thread: Size A nylon or colorfast thread for light-to-medium rods; Size D thread for heavy-duty saltwater or casting rods.
• Precision Hand Tools: Digital micro-calipers, a fresh utility razor blade, a thread burnishing tool (or smooth plastic pen cap), a rotating rod dryer motor (9 to 15 RPM), an alcohol torch or butane lighter, masking tape, and 220-grit wet/dry sandpaper.
• Solvents and Cleaners: Isopropyl alcohol (91% or higher) and lint-free microfiber cloths.

Project Benchmarks

• Estimated Budget: $15 to $45 (depending on the quality of replacement guides and epoxies chosen).
• Execution Time: 30 minutes of active bench time for tips; 1 to 2 hours for guide wrapping; 24 to 48 hours of total curing time.
• Prerequisite Skill Level: Intermediate DIY mechanical aptitude; basic hand-eye coordination for tension wrapping.

Step-by-Step Rod Restoration: From Minor Tip Fixes to Advanced Blank Splicing

Step 1: Replacing a Broken or Chipped Tip-Top

The tip-top is the most frequently damaged component on a fishing rod, typically suffering from lost ceramic inserts or physical fractures close to the tip. If the blank is undamaged but the tip-top frame is bent or missing its ceramic ring, the old assembly must be cleanly removed without exposing the underlying carbon fibers to excessive, damaging heat.

1. Measure the Tip Diameter: Use your digital micro-calipers to measure the outer diameter of the rod blank immediately below the damaged tip-top tube. Tip-top tubes are sized in 64ths of an inch (e.g., a size 5 tube fits a blank tip measuring 5/64 of an inch). Buy a replacement tip-top matching this tube measurement and your desired ring size (typically 6mm to 8mm for casting/spinning rods).
2. Apply Controlled Heat: Secure the rod blank in your cradle. Light your butane lighter or alcohol torch. Pass the flame quickly back and forth over the metal sleeve of the damaged tip-top for 3 to 5 seconds.

Warning: Do not apply a direct flame directly to the bare carbon fiber or fiberglass rod blank. Excessive heat exceeding 250°F will vaporize the resin matrix holding the carbon fibers together, permanently softening and ruining the tip of your rod blank.

1. Pull the Damaged Tip-Top: Grasp the tip-top frame with a pair of pliers and pull gently in a straight line away from the blank. If the adhesive has softened, the tip-top will slide off effortlessly. If it resists, apply heat for another 2 seconds and try again.
2. Prep the Tip Area: Scrape away any residual hot-melt glue from the blank tip using your utility razor blade. Hold the blade perpendicular to the blank to avoid shaving into the carbon fibers. Clean the area thoroughly with a cloth soaked in isopropyl alcohol.
3. Install the Replacement Tip-Top: Shave a few small slivers of hot-melt tip-top adhesive and insert them directly into the tube of the new tip-top, or heat the stick of hot-melt glue and smear a thin, even layer directly onto the bare tip of the rod blank.
4. Align and Set: Heat the metal sleeve of the new tip-top for 2 seconds to liquefy the internal adhesive, then push it straight onto the prepared rod tip. Immediately align the ring of the tip-top so it is perfectly parallel with the running guides along the spine of the rod. You have roughly 10 seconds to adjust the alignment before the glue solidifies. Clean up any squeezed-out excess adhesive with your fingernail or a plastic scraper once it cools.

Step 2: Prepping and Wrapping a New Line Guide

When a guide frame bends, corrodes, or loses its ceramic liner, you must strip the guide off the blank and wrap a replacement in its place. Perfect thread tension and proper guide-foot preparation are essential to prevent the guide from slipping under heavy loads.

1. Remove the Damaged Guide: Place the rod blank on your workspace. Locate the epoxy finish covering the guide foot wrap. Carefully slide your razor blade along the top of the metal guide foot, cutting through the epoxy and thread.

Warning: Always cut along the top of the metal guide foot. Never slice downward or sideways against the bare rod blank, as the razor blade will easily score and compromise the thin walls of the composite carbon blank, causing it to snap under load.

1. Clean the Wrap Area: Peel away the old thread and epoxy shell. Use isopropyl alcohol and a coarse cloth to rub away any stubborn adhesive residue until the blank's surface is clean and smooth.
2. Prep the Replacement Guide Foot: Inspect the foot of the new guide. Out of the box, most guide feet have a blunt, squared-off edge. Use a fine file or sandpaper to grind the tip of the foot down to a smooth, feather-edged wedge. This allows the wrapping thread to climb smoothly from the blank up onto the guide foot without bunching, gapping, or binding.
3. Secure the Guide in Place: Align the new guide with the other guides on the blank. Use a tiny sliver of masking tape or a minuscule dot of hot-melt glue to temporarily secure the guide foot to the blank.
4. Initiate the Thread Wrap: Start your wrap approximately 1/4 inch away from the toe of the guide foot. Lay the thread end against the blank, wrap the running thread over itself to lock it down, and complete 5 to 8 tight, overlapping turns to anchor the thread.
5. Wrap Up onto the Guide Foot: Maintain steady, firm tension on your thread as you rotate the rod, guiding the thread wraps tightly against one another. Use your burnishing tool to pack the threads together, ensuring there are no gaps showing the blank underneath.
6. Insert the Tie-Off Loop: When you are roughly 1/8 inch away from finishing the wrap (near the upright neck of the guide), cut a 6-inch loop of monofilament line or dental floss. Lay this loop along the blank, with the closed loop pointing toward the guide neck and the open tag ends pointing back toward your completed wraps. Wrap the thread over the loop 5 to 6 times.
7. Lock and Cut: Secure the running thread with your thumb, snip it to leave a 2-inch tag end, and thread this tag end through the monofilament loop. Grasp the loose ends of the monofilament loop and pull them back under the thread wraps. This pulls the tag end of your wrapping thread cleanly under the wraps, locking it in place. Use a sharp razor blade to cut the thread flush with the wrap.

Step 3: Mixing and Applying High-Build Epoxy Finish

To protect your thread wraps from water infiltration, UV degradation, and physical abrasion, you must coat them with a professional two-part polymer rod finish.

1. Measure with Precision: Using clean syringes, measure exactly equal parts (1:1 ratio) of Part A (resin) and Part B (hardener) into a small, clean mixing cup. Do not estimate; an incorrect ratio will result in a tacky, weak finish that will never cure.
2. Mix Thoroughly but Slowly: Stir the two components together using a flat-ended plastic stir stick or spatula for a minimum of three minutes. Stir slowly to prevent whipping air bubbles into the thick liquid. The mixture will initially look cloudy but will turn crystal clear when fully mixed.
3. Apply the Epoxy: Mount the rod in your rotating dryer motor (set to spin at 9 to 15 RPM). Dip your nylon brush into the epoxy and apply it in smooth, horizontal strokes over the rotating thread wrap. Extend the epoxy roughly 1/16 of an inch past the edges of the thread onto the bare blank to create a complete, watertight seal.
4. Release Trapped Air Bubbles: If tiny bubbles appear in the wet epoxy, pass an alcohol torch or a lighter rapidly 2 inches below the rotating wrap. The radiant heat will temporarily thin the epoxy, allowing trapped air to escape instantly.
5. Rotational Cure: Leave the rod rotating on the dryer motor for at least 4 to 6 hours to prevent the epoxy from sagging or forming uneven runs. Allow the epoxy to fully cure in a dust-free environment for 24 hours before handling or fishing.

Step 4: Splicing a Snapped Rod Blank (Structural Joint)

If your rod blank snaps cleanly in two, you can restore its structural integrity by inserting an internal carbon fiber or fiberglass spigot (sleeve) across the break. This repair requires absolute precision to preserve the rod's power and flex curve.

1. Clean the Fracture Edges: Use a fine-tooth jewelry saw or a high-speed rotary tool equipped with a diamond cutoff wheel to trim away the splintered composite material from both broken ends of the blank. You must achieve clean, square, non-splintered edges on both the tip-ward and butt-ward segments.
2. Select the Spigot Insert: Find a solid carbon fiber or thick-walled fiberglass rod blank blank segment (often sourced from a donor rod) that matches the internal taper of your broken rod. The insert must fit snugly inside both halves of the broken blank.
3. Size the Insert: The internal spigot must extend at least 2 inches into the blank on both sides of the break (a minimum total length of 4 inches). Slide the insert into the lower (butt) section of the broken rod until it wedges tightly. Mark the insert at the break point, pull it out, and measure 2 inches past your mark. Cut the insert to size.
4. Dry Fit and Sand: Lightly sand the outer surface of the insert with 220-grit sandpaper to remove any slick gloss coat. Test-fit the insert inside both halves of the broken rod. The two broken ends should slide together and butt up perfectly flush against each other over the internal spigot.
5. Glue with Structural Epoxy: Clean the insert and the interior of the rod blank ends with isopropyl alcohol. Mix a batch of slow-cure structural epoxy (e.g., U-40 Rod Bond). Coat one half of the insert with epoxy and slide it deep into the lower blank segment until it wedges in place. Next, coat the exposed half of the insert and slide the upper blank segment over it.
6. Align the Spine and Clean: Align the rod's guides perfectly down the spine of the blank. Wipe away any excess epoxy that squeezes out of the joint using a paper towel dampened with alcohol.
7. Reinforce the Joint Externally: Once the internal epoxy has cured for 24 hours, wrap the outer joint area. Start 1/2 inch below the seam and wrap thread tightly across the break line to 1/2 inch above the seam. Apply two-part rod-wrapping epoxy over this wrap. This external thread wrap acts as a compression cuff, preventing the hollow blank walls from splitting open under heavy structural loads.

Fishing Rod Component and Repair Material Specifications

Choosing the correct materials and adhering to technical specifications is paramount to ensuring your repair lasts. Use the following reference table to select the appropriate components, sizing, and curing protocols for your specific rod restoration project.

Troubleshooting Common Rod Repair Pitfalls and Structural Failures

Scenario 1: Cloudy, Tacky, or Non-Curing Guide Epoxy

• Root Cause: This is caused by an imprecise 1:1 mixing ratio of the two-part epoxy, mixing in a cold environment (under 65°F), or failing to mix the resin and hardener thoroughly for the required three minutes.
• Actionable Fix: Do not try to apply another coat of epoxy over a tacky surface. Use a plastic scraper to scrape away the sticky, uncured epoxy. Clean the thread wraps thoroughly with a clean cloth soaked in isopropyl alcohol until all residue is removed. If the wrapping thread becomes frayed or loose, strip it off, re-wrap the guide, and apply a fresh batch of epoxy that has been precisely measured with syringes and mixed in a warm room (70°F to 75°F).

Scenario 2: The Repaired Tip-Top Twists Off-Center Under Cast Load

• Root Cause: Using low-temperature craft-store hot-melt glue instead of specialized rod-building cement can cause issues. The intense heat inside a closed car trunk or direct summer sunlight can soften low-quality adhesives, causing the tip-top to slip or rotate under the high torque of casting.
• Actionable Fix: Heat the metal tip-top sleeve for 3 seconds to loosen it, pull it off, and scrape away all traces of the inferior glue. Re-install the tip-top using high-temperature, professional-grade thermoplastic rod cement or 5-minute structural epoxy.

Scenario 3: Splice Joint Clicks, Creaks, or Fails Under Tension

• Root Cause: The internal spigot insert was either too short, not tapered correctly to match the inside of the blank, or suffered a void from a lack of slow-cure epoxy during installation, allowing the inner carbon core to slide or knock against the blank walls.
• Actionable Fix: Do not fish a clicking rod, as it will inevitably suffer a catastrophic shatter. Cut the blank cleanly at the edges of the original splice. Select a new, longer solid carbon insert (extending at least 3 inches in both directions), sand it for a tighter friction-fit, and glue it in place with a slow-cure structural adhesive. Make sure to apply a tight, continuous outer thread wrap across the joint to reinforce the connection.

Frequently Asked Questions

Can you fix a fishing rod that is broken in half?

Yes. You can repair a rod broken cleanly in half by inserting a tapered solid carbon fiber or fiberglass spigot inside the hollow core of the broken ends. This internal sleeve must be secured with structural, slow-cure epoxy and reinforced on the outside with a tightly wrapped nylon thread cuff. While this repair will slightly stiffen the rod's flex profile at the splice, it will fully restore the rod's structural strength.

What is the best glue to use for fishing rod guides?

For securing the thread wraps over the guide feet, you should exclusively use a specialized two-part polymer rod-wrapping epoxy, such as Flex Coat or U-40. Standard craft glues, superglues, and hardware store epoxies lack the UV resistance and flexibility needed to withstand the constant bending and environmental exposure of a active fishing rod blank.

How do I measure the tip size of a fishing rod?

To measure your rod's tip size, strip away the old tip-top and use a digital micro-caliper to measure the outer diameter of the bare blank tip in inches or millimeters. Rod building components use sixty-fourths of an inch for tube sizes, so convert your decimal measurement to the nearest 64th (e.g., 0.078 inches equates to a size 5/64, or a size 5 tube).

Why did my newly wrapped rod guide crack its finish?

Cracks in guide epoxy are typically caused by applying the finish too thickly in a single pass, or fishing the rod before the epoxy has fully cured (at least 24 hours). If the thread wrapping itself is too loose, the guide foot can shift slightly under load, causing the overlying epoxy shell to fracture.

Restore Your Fishing Gear and Get Back on the Water

Learning to repair your own fishing rods is a valuable skill that keeps your favorite gear in peak performing condition for years to come. Explore our selection of professional-grade rod-building components, structural epoxies, and replacement guides to restore your gear today.
