How To Refill A 1lb Propane Tank: A Step-by-Step Technical Guide

Transferring liquid propane from a 20lb donor tank into a 1lb cylinder requires a brass QCC1 refill adapter, a digital scale, and strict adherence to mass-based fill limits. By freezing the recipient 1lb tank to drop its internal vapor pressure while keeping the donor tank at ambient temperature, thermal pressure differentials enable liquid propane to flow smoothly into the smaller vessel. Safety protocols demand performing this process outdoors with protective eyewear and cryogenic gloves, ensuring total net fuel weight never exceeds 16 ounces (80% liquid volume limit).

Pre-Operation Setup, Regulatory Compliance, and Safety Protocols

Refilling small propane containers involves manipulating liquified petroleum gas (LPG) stored under high vapor pressure (typically 100 to 200 PSI depending on ambient temperature). Before initiating a fluid transfer, you must understand container classifications, regulatory standards, and physical hazard mitigation.

Commercial single-use 1lb propane cylinders are manufactured under the Department of Transportation DOT-39 specification. Federal regulation (49 CFR § 173.301) prohibits transporting refilled DOT-39 single-use cylinders on public roadways, carrying criminal penalties for violations. For lawful highway transport and reusable long-term operation, certified refillable cylinders (such as DOT-4E or DOT-4BA compliant 1lb containers) featuring built-in overfill prevention mechanisms must be used. If you elect to refill standard DOT-39 cylinders for immediate private, off-road use, inspect them rigorously for sidewall denting, collar rust, foot-ring deformation, and valve stem deterioration. Never attempt to refill a cylinder exhibiting structural corrosion or damaged threads.

Propane transitions from liquid to gas at its boiling point of -44°F (-42°C). Rapid venting of liquid propane causes extreme localized cooling capable of inflicting severe cryogenic skin burns and frostbite. Furthermore, propane vapor is heavier than air (specific gravity ~1.50 relative to air), causing released gas to settle in low-lying depressions, creating explosive flash-fire hazards if exposed to static electricity, open flames, or pilot lights.

Required Materials and Operational Benchmarks

• Essential Hardware & Tools:

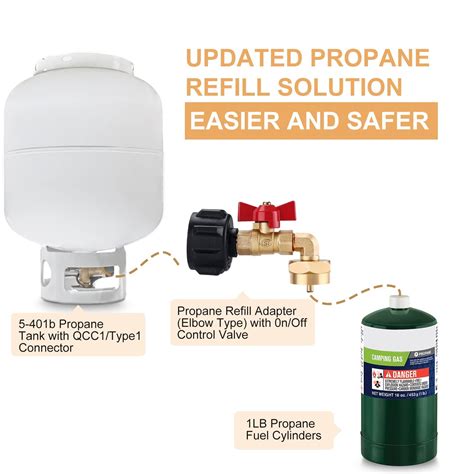

  • Solid brass QCC1 (Type 1) to 1"-20 UNEF male throwaway cylinder adapter fitted with a internal shutoff control valve.
  • 20lb donor propane tank (equipped with an active OPD valve and guaranteed to contain liquid propane).
  • Digital kitchen or postal scale with 0.1-ounce (1-gram) resolution and at least 5lb total mass capacity.
  • Commercial gas-leak detection fluid or a 50/50 mixture of liquid dish soap and water in a spray bottle.
  • Valve cap removal tool or needle-nose pliers (for resetting stubborn internal Schrader valves).
• Mandatory Personal Protective Equipment (PPE):


  • ANSI Z87.1-approved safety goggles or full-face shield.
  • Heavy leather work gloves or low-temperature neoprene/nitrile cryogenic handling gloves.
  • 100% cotton long-sleeve shirt and denim pants to prevent static discharge accumulation.
• Time & Cost Benchmarks:


  • Estimated Hardware Budget: $20 – $40 (one-time purchase for brass adapter and digital scale).
  • Thermal Conditioning Duration: 30 to 60 minutes (freezing empty cylinder).
  • Active Transfer Execution: 3 to 5 minutes per cylinder.

Liquid Propane Transfer and Pressure Management Workflow

Step 1: Calculate Tare Weight and Establish Maximum Fill Target

Place your empty 1lb cylinder on the calibrated digital scale. Read the stamped Tare Weight (TW) located on the metal collar or base of the cylinder. A standard single-use 1lb cylinder generally exhibits a Tare Weight ranging between 13.8 oz and 15.0 oz (391g to 425g).

Calculate your maximum safe gross target weight using the mass conservation formula:

Max Target Gross Weight = Tare Weight (TW) + 16.0 oz (453.6g) of net propane fuel

Warning: Never attempt to fill a 1lb cylinder beyond its designated 16.0 oz net propane rating. Propane expands at approximately 1.5% per 10°F rise in temperature. Overfilling eliminates the critical 20% vapor expansion space, leading to uncontrolled hydrostatic pressure buildup and catastrophic vessel rupture upon temperature increase.

Step 2: Establish the Thermal Pressure Gradient

Propane flows from regions of high vapor pressure to regions of low vapor pressure. To induce fluid flow without manual pumping, lower the internal vapor pressure of the receiving vessel:

1. Place the empty, inspected 1lb cylinder inside a standard domestic freezer (set at 0°F / -18°C) for a minimum of 30 to 45 minutes.
2. Maintain the donor 20lb tank at room temperature or outdoor ambient temperature (60°F to 80°F / 15°C to 27°C).

Do not heat the donor tank with external heat sources, torches, or boiling water; ambient temperature differentials provide more than enough kinetic driving force.

Step 3: Mount and Seat the Brass Adapter Assembly

Set the donor 20lb tank upright on a level, stable surface outdoors in a well-ventilated area, away from structures, ignition sources, or air intake vents.

1. Inspect the female inner threads and rubber O-ring inside the donor tank’s QCC1 connection port for dirt, cracking, or grit.
2. Thread the brass refill adapter firmly onto the 20lb tank valve. Hand-tighten the large plastic or brass black collar clockwise until it bottoms out against the threads, then apply an additional quarter-turn by hand to compress the inner seal.
3. Ensure the shutoff valve on the adapter assembly (if equipped) is set to the fully closed position.

Step 4: Mount the Chilled Cylinder and Invert the Donor Supply

Retrieve the chilled 1lb cylinder from the freezer. Immediately thread its female 1"-20 UNEF top connection onto the male threads of the adapter module. Thread the cylinder smoothly to avoid cross-threading the soft brass components. Tighten firmly by hand until a gas-tight seal is formed against the internal gasket.

Once the connection is secured:

1. Carefully invert the entire 20lb donor tank upside down on your workspace so that the main valve points toward the ground.
2. Elevate the base of the donor tank slightly using a stable wooden block or rig. Inverting the tank positions the internal dip tube underwater in liquid propane, ensuring that liquid fuel—rather than gaseous vapor—is drawn into the bottom cylinder.

Pro-Tip: If using a high-end refill adapter equipped with an integrated pressure-relief purge valve, briefly open the purge valve for 1 second while inverted to bleed off residual air pockets from the neck before opening the main feed line.

Step 5: Execute Liquid Transfer and Monitor Auditory Signals

With the donor assembly inverted and the chilled cylinder positioned vertically beneath it:

1. Slowly rotate the main valve wheel of the 20lb donor tank counter-clockwise to the fully open position.
2. If your adapter has an inline control valve, open it completely.
3. You will hear a distinct rushing sound as liquid propane flows through the adapter into the cold cylinder. The cold walls of the receiving container condense the incoming propane vapor back into liquid.
4. Continue the fluid transfer for approximately 60 to 90 seconds until the rushing sound completely ceases. The cessation of sound indicates that vapor pressures between the two containers have equalized.

Step 6: Close Valves, Disconnect, and Perform Mass Verification

1. Turn the main valve handle on the 20lb donor tank clockwise until fully closed. Close the inline adapter valve if present.
2. Rotate the entire 20lb donor assembly back to its upright vertical orientation.
3. Carefully unscrew the filled 1lb cylinder counter-clockwise from the adapter. A short 0.5-second hiss of trapped vapor escaping the adapter body during disconnect is normal.
4. Place the refilled cylinder on your digital scale immediately to determine actual gross weight.

If the gross weight matches your calculated Tare Weight + 16.0 oz benchmark, the fill is complete.

Warning: If your total gross weight exceeds your target threshold (meaning more than 16 oz of fuel transferred), you must immediately bleed off the excess fuel outdoors using a small brass bleeder cap or screw-on tool until the net weight drops back down to 16.0 oz or lower. Never store or transport an overfilled cylinder.

Step 7: Leak Testing and Internal Valve Seating

Apply a few drops of soapy water leak detection solution directly into the central valve opening (Schrader valve pin) of the refilled cylinder.

Inspect the fluid carefully for 30 seconds:

• No Bubbles: The central check-valve has fully seated. Apply a plastic protective cap over the threads to shield them from debris.
• Growing Soap Bubbles: Liquid or vapor is escaping through the internal valve seal. Depress the central valve pin briefly with a small blunt tool or needle-nose pliers for a fraction of a second to reset the inner spring and clear trapped debris. Re-test with soapy water. If bubbling continues, safely evacuate the cylinder outdoors away from ignition sources and discard the vessel.

Propane Container Specifications and Operational Parameters

The technical matrix below outlines critical design thresholds, fill tolerances, and physical metrics for common LPG transport vessels.

Field Troubleshooting for Fluid Refill Failures

Scenario 1: Minimal Fuel Transfer (Cylinder Weighs Only 3 to 5 oz Net After Transfer)

• Root Cause: Insufficient thermal differential or premature pressure equalization. If the receiving 1lb cylinder was not chilled long enough, its internal vapor pressure matches the donor tank’s pressure before liquid fills the volume. Alternatively, the donor 20lb tank was not fully inverted, drawing gas instead of liquid.
• Actionable Fix: Re-freeze the 1lb cylinder for a full 45 minutes at 0°F. Verify that the 20lb donor tank is inverted 180 degrees vertically so liquid propane completely covers the internal outlet port during the transfer procedure.

Scenario 2: Donor OPD Valve Tripping and Stopping Flow Completely

• Root Cause: Opening the 20lb donor tank valve too quickly trips the internal Overfill Prevention Device (OPD) excess-flow check valve, which interprets the rapid initial surge of fluid as a severe line break.
• Actionable Fix: Close the 20lb tank valve completely. Wait 30 seconds for the internal check valve mechanism to click and reset. Re-open the main donor valve extremely slowly—turning the handwheel only 1/4 turn initially to pressurize the line smoothly before opening fully.

Scenario 3: Continuous Micro-Bubbling from Schrader Valve Post-Disconnect

• Root Cause: Rubber seal contamination or weakened internal valve return spring within the small cylinder stem. Debris or tiny ice crystals formed during fluid transfer prevent the spring pin from sealing flush against the brass valve seat.
• Actionable Fix: Wear safety glasses, take the tank to a clear outdoor area, and use a small driver or key to quickly tap and depress the center valve pin down and up twice. This flushes trapped grit from the valve seat. Re-test with soapy water solution. If continuous bubbling persists, thread a solid brass sealed storage cap equipped with a rubber inner gasket tightly onto the cylinder top, or vent the tank safely outdoors and discard it.

Scenario 4: Gas Spraying From Adapter Threads During Operation

• Root Cause: Damaged internal rubber O-ring inside the brass adapter connection, or cross-threaded interface between the 1"-20 UNEF threads and cylinder neck.
• Actionable Fix: Instantly close the main valve on the 20lb donor tank. Disconnect the cylinder once pressure dies down. Inspect the male and female threads for stripping or gouges. Replace missing or dry-rotted rubber O-rings inside the adapter housing before attempting further refill cycles.

Frequently Asked Questions

Is it legal to refill standard disposable 1lb propane tanks?

Refilling disposable DOT-39 single-use 1lb propane cylinders for private use on your own property is legal in most jurisdictions. However, federal DOT regulations strictly prohibit transporting refilled single-use DOT-39 cylinders on public roads or highways. For legal transport, purchase certified refillable 1lb cylinders (such as Flame King DOT-4E certified tanks).

Why must I freeze the 1lb propane tank before refilling?

Freezing the 1lb cylinder significantly cools the liquid propane and vapor inside, lowering its vapor pressure below that of the warmer 20lb donor tank. This pressure differential acts as a natural pump, allowing liquid propane to flow quickly into the cold cylinder without generating back-pressure resistance.

How do I know when the 1lb propane tank is completely full?

You cannot rely on sound or time alone to judge when a tank is full. You must use a digital scale to verify that the net weight of the transferred propane equals 16.0 ounces (453.6 grams) above the empty Tare Weight (TW) stamped on the tank collar. Never fill past this calculated mass threshold.

What should I do if I accidentally overfill a 1lb propane cylinder?

If the total gross weight of your cylinder exceeds your calculated target mass, the tank is overfilled and lacks the mandatory 20% expansion space. Take the cylinder outdoors to a well-ventilated area away from any ignition sources, screw on a manual relief fitting or adapter, and bleed off excess liquid/vapor until the scale confirms the target weight is reached.

How many times can a certified 1lb propane tank be refilled?

Specially designed, DOT-4E certified refillable 1lb cylinders can be safely refilled for up to 10 years from their manufacture date, after which they must be inspected or replaced. Standard disposable DOT-39 single-use cylinders are not rated for repeated metal fatigue stress cycles and should generally not be refilled more than a few times due to high valve failure rates.

Technical Gas Systems and Equipment Maintenance

Maintaining precise records of cylinder tare weights and utilizing high-precision brass transfer fittings guarantees maximum thermodynamic efficiency and fuel safety during portable LPG operations. Equip your workshop with certified safety gear, calibrated digital scales, and proper gas-leak detection solutions to maintain long-term compliance and operational integrity.
