How To Rebuild A CV Axle: A Professional Technical Guide
Rebuilding a Constant Velocity (CV) axle involves disassembling the inner and outer joints, thoroughly degreasing the components, inspecting for pitting or stress fractures, and re-lubricating with molybdenum disulfide grease before installing a new boot kit. Achieving a successful rebuild requires strict cleanliness to prevent abrasive contaminants from causing premature joint failure, ensuring the vehicle maintains proper power transfer to the wheels.
Essential Preparation and Tooling Requirements
Rebuilding a CV axle is a cost-effective alternative to purchasing new units, provided the internal race and cage assemblies remain within tolerance. Before beginning, evaluate the existing axle; if the joint displays significant "clicking" during tight turns or deep scoring on the ball tracks, the internal metal is fatigued, and the component should be replaced rather than rebuilt.
- Essential Tooling: A quality boot clamp installation tool, heavy-duty snap ring pliers, a brass drift punch for internal race removal, a dead-blow hammer, and a torque wrench capable of reaching factory hub nut specifications.
- Required Materials: High-temp CV joint grease (molybdenum disulfide), a comprehensive axle boot kit (must include boots, clamps, snap rings, and grease packets), brake cleaner for solvent washing, and lint-free shop rags.
- Safety Protocols: Always use jack stands rated for the vehicle’s gross weight. Never work on a vehicle supported solely by a hydraulic floor jack.
- Benchmarks: Budget approximately 2 to 3 hours per axle for a first-time rebuild. Ensure a clean, dust-free workbench area to prevent grit from entering the precision-machined races.
Step-by-Step Mechanical Disassembly and Rebuild Process
Step 1: Axle Extraction and External Boot Removal
Begin by securing the vehicle on jack stands and removing the wheel assembly. Remove the axle hub nut using an impact wrench or a long breaker bar, as these are often torqued to over 200 lb-ft. Disconnect the lower ball joint or strut bolts to provide enough swing-arm clearance to pull the axle out of the hub. Once the shaft is removed from the vehicle, place it on the workbench. Use side cutters to snip the metal boot bands. Slide the old, torn boots toward the center of the shaft to expose the joints.
Step 2: Inner and Outer Joint Disassembly
Most inner joints are of the "tripod" style, held in by a retaining clip on the end of the shaft. Remove the clip and slide the tripod housing off. Mark the orientation of the tripod bearings relative to the housing. For the outer joint, which usually utilizes a "Rzeppa" style ball-bearing race, pull the cage and balls out of the housing once the snap ring is expanded.
Warning: Never use a steel hammer directly on the race or cage, as this causes microscopic fractures in the hardened steel. Always use a brass drift or a block of wood to distribute force evenly.
Step 3: Solvent Cleaning and Internal Inspection
Place all metallic components into a parts washer or a basin with solvent. Scrub every race, ball bearing, and cage pocket thoroughly to remove old, gritty grease. Once clean, dry the parts with compressed air or lint-free cloths. Inspect the ball tracks for "brinelling"—small, dimpled indentations—or heat-scorching marks. If you detect deep scoring with your fingernail, the joint is compromised and will fail shortly after reassembly.
Step 4: Re-Greasing and Boot Installation
Slide the new, narrow end of the axle boots onto the shaft first. Apply the provided molybdenum disulfide grease liberally into the ball tracks and cage assembly. Do not be sparing; the grease acts as both a lubricant and a heat sink. Reassemble the inner tripod or outer ball cage, ensuring all snap rings are seated firmly in their grooves. Use the specialized boot clamp tool to pull the metal bands tight; loose bands will allow centrifugal force to spray grease inside the wheel well and eventually lead to moisture ingress.

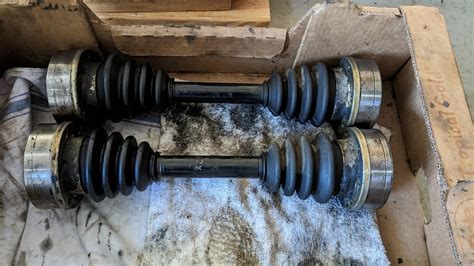

Cv axle rebuild - LSPECDATSUN
Technical Specifications and Joint Lubrication Parameters
| Parameter | Inner Joint (Tripod) | Outer Joint (Rzeppa) |
|---|---|---|
| Bearing Type | Three-point sliding needle rollers | Multi-ball caged bearing |
| Axial Play Tolerance | 0.005 - 0.010 inches | Near-zero lash |
| Grease Specification | Moly-Disulfide (High Temp) | Moly-Disulfide (High Temp) |
| Primary Failure Mode | Pitting from boot failure | Mechanical fatigue/clicking |
| Cleaning Method | Solvent dip and air dry | Solvent dip and air dry |
Common Field Failures and Remediation
- Vibration Under Acceleration: This is frequently caused by a worn inner tripod joint. Actionable Fix: Check the inner joint housing for "gouges" where the needle rollers sit. If damaged, you must source a replacement housing, as this cannot be repaired.
- Clicking Noise During Turns: This indicates excessive clearance in the outer CV joint cage. Actionable Fix: Disassemble and verify that all ball bearings are uniform in size. If the clicking persists after cleaning and fresh greasing, the outer housing is worn beyond the factory spec, and the entire axle requires replacement.
- Grease Leaking from Boot Seam: This occurs when the band clamp is not tightened to the correct tension. Actionable Fix: Re-tension the clamp using an axle-specific banding tool. If the boot itself is punctured, replace it immediately to prevent internal bearing contamination from road debris.
Frequently Asked Questions
Is it necessary to replace the axle nut after a rebuild?
Yes, most manufacturers specify the use of a new axle nut, as many are "staked" or one-time-use self-locking nuts. Reusing the old nut compromises the clamping force required to hold the wheel bearing assembly together.
How much grease should I pack into the CV joint?
You must use the entire packet provided in the boot kit, usually containing between 80 to 120 grams of grease. Over-packing is rarely an issue, but under-packing will cause the joint to overheat and seize due to lack of lubrication.
Can I mix different types of grease during the rebuild?
No, never mix synthetic grease with traditional lithium-based grease. Stick strictly to the high-molybdenum disulfide grease supplied by the boot kit manufacturer to ensure compatibility with the high-pressure loads of the CV joint.
How do I know if the axle boot is damaged?
Inspect for thick, black, tar-like grease splattered on the inside of the wheel, suspension components, or subframe. Even a pinhole-sized tear will eventually allow water and road grit to destroy the bearing races, leading to complete joint failure.
Maintain Your Drivetrain Integrity
Mastering the CV axle rebuild process preserves your vehicle’s performance while significantly reducing long-term maintenance overhead. Use high-quality components and ensure absolute clinical cleanliness during the assembly phase to achieve a service life that matches or exceeds an original factory installation.
