How To Mount A Fire Extinguisher: Step-by-Step NFPA 10 Compliance Guide

Properly mounting a fire extinguisher requires securing a compatible steel mounting bracket to a load-bearing wall stud or solid masonry substrate in accordance with National Fire Protection Association (NFPA) 10 standards. For portable units weighing less than 40 pounds, the top of the extinguisher must sit no higher than 5 feet (60 inches) above the finished floor, while units heavier than 40 pounds must not exceed a maximum height of 3.5 feet (42 inches). Executing this installation ensures rapid, reliable egress accessibility and prevents dangerous structural pull-out failures during emergency deployments.

Pre-Installation Planning: Tools, Code Requirements, and Location Strategy

Mounting a fire extinguisher is more than a simple home improvement task; it is a regulated safety installation. Unmounted fire extinguishers sitting on floors, countertops, or tucked away deep in closets are highly susceptible to physical damage, corrosion, accidental discharge, or becoming misplaced. In commercial environments, failing to mount an extinguisher securely to a wall or placing it in an unapproved cabinet is a direct violation of OSHA 1910.157 and NFPA 10 codes.

Before drilling into any wall surface, you must identify a strategic location. Fire extinguishers must be situated along normal paths of travel, highly visible, and readily accessible without requiring the user to navigate through hazardous areas. For Class A fire hazards (ordinary combustibles like wood and paper), the maximum travel distance to an extinguisher is 75 feet. For Class B hazards (flammable liquids), the travel distance must not exceed 30 to 50 feet, depending on the hazard level of the occupancy. Keep extinguishers at least 10 to 15 feet away from potential heat or fire sources, such as kitchen ranges or workshop machinery, to ensure they remain accessible if a fire erupts in those zones.

Pre-Installation Project Checklist

• Essential Tools & Safety Gear:


  • Electronic stud finder with deep-scanning capability
  • Spirit level (minimum 9-inch torpedo level)
  • Power drill with variable speed trigger
  • Drill bits: 7/64-inch high-speed steel bit (for wood studs); 1/2-inch spade or brad-point bit (for drywall toggle bolts); 3/16-inch carbide-tipped masonry bit (for brick/concrete)
  • Handheld Phillips and flathead screwdrivers
  • Tape measure and marking pencil
  • Safety glasses and dust mask
• Mandatory Hardware & Materials:

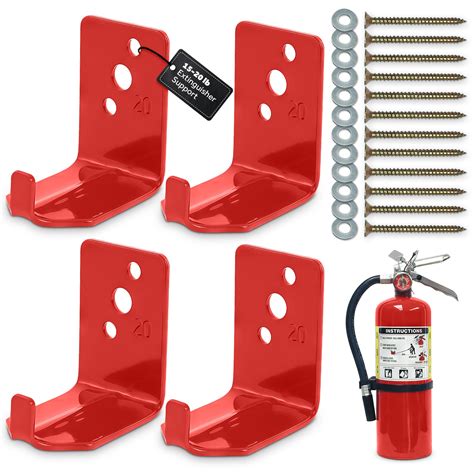

  • OEM mounting bracket (typically shipped with the extinguisher; ensure it matches the cylinder diameter)
  • For wood studs: Two #10 or #12 heavy-duty wood screws (minimum 1.5-inch length)
  • For hollow drywall: Two 3/16-inch or 1/4-inch steel toggle bolts (do not use plastic push-in anchors)
  • For masonry/concrete: Two 3/16-inch Tapcon concrete screws or expansion sleeve anchors
• Projected Benchmarks:


  • Estimated Budget: $5 to $20 USD for hardware (assuming the fire extinguisher includes the base mounting bracket).
  • Estimated Duration: 15 to 30 minutes per mounting location.
  • Code Compliance Standards: NFPA 10 (Standard for Portable Fire Extinguishers), OSHA 1910.157 (Portable Fire Suppression Equipment), and ADA Section 307 (Protruding Objects limit of 4 inches maximum into walks, halls, corridors, or aisles if mounted between 27 and 80 inches above the floor).

Step-by-Step Fire Extinguisher Mounting and Calibration

Step 1: Weigh the Unit and Determine the Vertical Height Target

Before marking your wall, weigh your fully charged fire extinguisher on a scale or read the manufacturer's specification sheet to determine its total gross weight. This weight dictates your maximum height threshold under NFPA 10 guidelines.

For units with a gross weight under 40 pounds (such as standard 2.5-pound, 5-pound, and 10-pound ABC dry chemical extinguishers), the top of the extinguisher cylinder must be mounted no higher than 5 feet (60 inches) from the floor. However, targeting a comfortable mid-range height of 48 to 54 inches is recommended for universal accessibility.

For units with a gross weight over 40 pounds (such as heavy 20-pound or 30-pound industrial units), the top of the extinguisher must be mounted no higher than 3.5 feet (42 inches) from the floor.

Under all circumstances, the bottom clearance of the fire extinguisher must be at least 4 inches (102 mm) off the finished floor to prevent moisture-induced bottom rust and allow for easy floor maintenance.

Warning: Do not measure the mounting height based solely on the bracket position. You must account for the "hang drop offset." This is the vertical distance between the top handle of the fire extinguisher and the hook/slot on the back of the cylinder that rests on the bracket. Measure this offset first, then adjust your bracket height downward from your targeted top-of-unit height.

Step 2: Locate a Wood Stud or Map Substrate Layout

Never rely on standard plastic wall expansion plugs or adhesive strips to support a fire extinguisher. The dynamic pull force exerted during an emergency—when a user forcefully grabs and pulls the heavy cylinder downward and outward—can easily tear plastic anchors directly out of the drywall sheetrock, dropping the unit and rendering it useless.

Use an electronic stud finder to locate the center of a wood or metal stud at your target height. Once found, mark the center line with a pencil. If your ideal location does not align with a wall stud, or if you are mounting on a hollow partition, you must use heavy-duty steel toggle bolts to secure the bracket through the drywall. If mounting onto concrete, brick, or cinder block, prepare to drill directly into the masonry.

Step 3: Align the Mounting Bracket and Mark Drill Holes

Place the mounting bracket flat against the wall surface, centering its screw holes over your vertical pencil line (or stud center line). Use a spirit level held flush against the side of the bracket to ensure it is perfectly vertical.

While holding the bracket steady and level, insert a pencil through the mounting screw holes to mark the exact drilling locations on the wall. Most residential brackets feature a two-hole vertical layout, while heavy-duty commercial running-board brackets may utilize a three- or four-hole pattern. Mark all available points to maximize load distribution.

Step 4: Drill Pilot Holes Tailored to the Wall Material

Depending on your wall substrate, choose the appropriate drilling technique to ensure a tight, secure hold:

• For Wood Studs: Drill pilot holes using a 7/64-inch high-speed steel bit to a depth of 1.5 inches. This prevents the wood stud from splitting when you drive the #10 wood screws.
• For Drywall (Using Toggle Bolts): If no stud is present, drill holes using a 1/2-inch spade or brad-point bit to accommodate the folded wings of a 3/16-inch toggle bolt. Clean the drywall dust from the hole.
• For Masonry/Concrete: Drill holes using a 3/16-inch carbide-tipped masonry drill bit with a hammer drill set to its low-speed setting. Drill to a depth 1/4-inch deeper than the overall length of your concrete screws, then clear out all dust using a blower or vacuum.

Pro-Tip: Always check for hidden utilities before drilling. Use a non-contact voltage detector or wire finder behind the drywall sheet, especially when working in kitchens or close to electrical outlets and light switches. If drilling near wet walls (bathrooms or laundry spaces), proceed with caution to avoid puncturing copper or PEX water supply lines.

Step 5: Secure the Bracket and Perform a Load Test

Align the bracket back over your drilled holes and secure the hardware based on your chosen mounting system:

• For Wood Studs: Drive the #10 wood screws through the bracket holes directly into the wood pilot holes using a variable-speed drill or a manual screwdriver. Tighten until the screw heads are seated firmly against the bracket surface without stripping the wood fibers.
• For Drywall Toggle Bolts: Insert the 3/16-inch machine screws through the mounting bracket holes first, then thread the spring-loaded toggle wings onto the threaded shaft with the wings facing the screw head. Squeeze the wings shut, push them entirely through the drilled 1/2-inch drywall holes until you hear the wings snap open behind the sheetrock, and then pull the bracket forward to create tension. Tighten the screws completely with a manual screwdriver until the bracket is held tightly against the wall face.
• For Concrete/Masonry: Drive your Tapcon masonry screws through the bracket directly into the pre-drilled concrete holes using a nut driver or hex head bit, ensuring a flush and tight fit.

Once mounted, conduct a physical pull test. Grip the bracket firmly and apply a downward and outward force of approximately 30 to 40 pounds. The bracket must remain perfectly rigid, showing zero play, movement, or flexing against the wall surface.

Step 6: Hang, Inspect, and Label the Extinguisher

Lift the fire extinguisher cylinder and carefully seat its mounting neck, loop, or rear hanger hook into the cradle of the wall bracket. If using a strap-style bracket (often found on vehicle or marine mounts), wrap the metal or plastic strap around the center of the cylinder body and buckle the quick-release latch securely.

Confirm that the pressure gauge dial is pointing outward and is clearly legible from a distance of several feet. The safety pin must be fully inserted through the handle assembly, secured in place with an unbroken plastic tamper seal. Finally, if you are in a commercial or public facility, install a highly visible 3D or flat "Fire Extinguisher" wall sign directly above the mounted unit at a height of 6 to 7 feet from the floor to ensure it can be located even if smoke starts to accumulate in the upper half of the room.

NFPA 10 Mounting Metrics and Fastener Selection Matrix

The following table outlines the mechanical parameters, height thresholds, and fastener requirements for securing fire extinguishers across different structural materials:

Common Wall Mounting Failures and Immediate Remedies

• Scenario 1: The bracket loosens and pulls away from the wall after several months of use.




  • Root Cause: The installer used plastic expansion anchors or self-drilling plastic wall anchors directly in drywall. Over time, vibration, accidental bumps, or the weight of the extinguisher causes the gypsum core of the drywall to crumble, degrading the anchor's grip.
  • Actionable Fix: Remove the loose bracket and plastic anchors. Relocate the bracket horizontally to align with a solid wood stud, or patch the damaged holes and reinstall the bracket using heavy-duty 1/4-inch steel spring-wing toggle bolts that distribute the mechanical load across the back face of the sheetrock.

• Scenario 2: The cylinder swings side-to-side or hangs at an awkward angle on the wall.




  • Root Cause: The lower bumper spacer is missing, or the upper hook is not properly seated inside the cylinder's recessed mounting slot. This is common when using generic third-party brackets that do not match the specific diameter of the fire extinguisher tank.
  • Actionable Fix: Replace the generic bracket with the manufacturer-approved OEM bracket designed for that specific cylinder model. Ensure that the integrated rubber or plastic bumpers are installed on the lower portion of the bracket to keep the cylinder parallel to the wall surface.

• Scenario 3: Drilling into plaster and lath walls causes cracking and fails to hold the screws.




  • Root Cause: Old plaster is highly brittle and lacks the structural integrity to support concentrated loads, while thin wooden lath behind the plaster splits easily under screw pressure.
  • Actionable Fix: Do not use drywall anchors or standard wood screws directly in plaster. Drill a clean pilot hole using a masonry bit through the plaster layer without hammering, then use toggle bolts to clamp the bracket directly against the sturdier wood laths behind the plaster. Alternatively, mount a 1x4-inch wood backing board securely to the underlying wall studs first, and then mount the extinguisher bracket directly to that backing board.

Frequently Asked Questions

Can I mount a fire extinguisher horizontally?

No, standard dry chemical fire extinguishers must not be mounted horizontally. Dry chemical units contain a pressurized gas charge that pushes a dry powder through a siphon tube running down the center of the cylinder; if the cylinder is horizontal, the siphon tube may draw out only the pressurized gas, leaving the chemical powder trapped inside. Only specialized cartridges or specific clean-agent units rated explicitly by the manufacturer for horizontal installation can be mounted in this orientation.

Do I have to mount a fire extinguisher to a wall?

Yes, NFPA 10 standards require all portable fire extinguishers to be safely secured on a wall hanger, bracket, or placed in a dedicated cabinet or floor stand. Keeping a fire extinguisher unmounted on the floor leaves it exposed to physical damage, tip-overs, and moisture, and it can be easily blocked or moved during day-to-day operations, making it hard to find in an emergency.

How far off the kitchen stove should a fire extinguisher be mounted?

A fire extinguisher should be mounted roughly 10 to 15 feet away from the stove. This distance ensures that if a grease fire erupts on the stovetop, you can safely reach and retrieve the fire extinguisher without having to reach through the flames or intense heat to grab it.

What size screws should I use to mount a fire extinguisher?

For securing a standard household extinguisher bracket to a wood stud, use #10 or #12 pan-head wood screws that are at least 1.5 inches long. If you are mounting onto concrete or brick, use 3/16-inch or 1/4-inch diameter masonry screws (such as Tapcons) with at least 1.25 inches of embedment depth.

How do I mount a fire extinguisher in a vehicle or RV?

To mount an extinguisher in a vehicle, RV, or boat, you must use a metal strap bracket with a quick-release latch designed to withstand high vibrations and impacts. Mount the bracket directly into the vehicle's structural frame or a solid interior wall panel using through-bolts with backing washers and locking nuts, ensuring the cylinder cannot break loose and become a projectile during a sudden stop or collision.
