How To Measure For Drawer Slides: A Master Cabinetmaker’s Guide To Perfect Fits

To measure for drawer slides, measure the overall exterior depth of the drawer box (excluding the decorative drawer front) and select a slide length that matches this dimension or is rounded down to the nearest even-inch standard. You must also measure the cabinet's internal opening width and compare it to the drawer box width to ensure a precise side clearance gap of exactly 1/2 inch (12.7 mm) per side for side-mount slides, or match the precise bottom-recess requirements for undermount configurations. Accurate measurements down to 1/32 of an inch are critical to prevent binding, sagging, or improper alignment of your cabinet hardware.

Understanding Cabinet Anatomy and Pre-Measurement Preparation

Before taking a single measurement, you must identify the structural style of your cabinetry and the specific profile of the hardware you intend to install. Cabinet drawer slides are precision-engineered mechanical systems that rely on strict spatial tolerances to operate smoothly. Minor miscalculations of even 1/16 of an inch can lead to binding, friction, noise, or complete mechanical failure.

Start by identifying whether your cabinetry is built using face-frame construction or frameless (European-style) construction. Face-frame cabinets feature a solid wood frame attached to the front edge of the cabinet box, which creates a lip that overhangs the interior walls. Frameless cabinets feature flush interior walls where the front edge of the cabinet box is completely open. This distinction dictates how you will mount the slides and how you must measure the interior clear space.

Essential Preparation Checklist

To ensure your measurements are flawless, prepare your workspace with the following tools and baseline parameters:

• Essential Measurement Tools: A high-quality flexible steel tape measure with clean 1/32-inch markings, a digital caliper for verifying precise clearance gaps, a torpedo level, a straightedge, a pencil, and a dedicated notepad to record dimensions.
• Mandatory Prerequisite Knowledge: Understand that drawer slides are manufactured in standard industry lengths, almost always in 2-inch increments (typically ranging from 10 inches up to 28 inches). Custom sizes exist but are rare and cost-prohibitive.
• Project Benchmarks: Plan for approximately 10 to 15 minutes of measurement time per drawer cavity. Budgeting for hardware depends on slide capacity and features, ranging from $10 for basic roller slides to over $40 per pair for heavy-duty soft-close undermount slides.

Step-by-Step Protocol for Measuring Drawer Slides

Measuring for drawer slides requires systematic assessment of both the movable drawer box and the stationary cabinet carcass. Follow these steps in sequence to gather the precise data required for your installation.

Step 1: Identify and Select Your Slide Mounting Style

The physical mounting location of the slide determines the required clearance dimensions. You must choose your slide style before final measurement:

1. Side-Mount Slides: Installed horizontally on both sides of the drawer box and the cabinet interior. They require a universal, non-negotiable clearance gap of exactly 1/2 inch (12.7 mm) on each side.
2. Undermount Slides: Mounted beneath the drawer box, completely hidden from view when the drawer is open. These require strict drawer box construction parameters, including a specific bottom-recess depth (typically 1/2 inch) and maximum drawer side-wall thicknesses (usually 5/8 inch or 1/2 inch).
3. Center-Mount Slides: A single channel mounted directly under the center-bottom of the drawer box. These are common in vintage or light-duty furniture and have highly forgiving side clearances but limited weight capacities.

Step 2: Measure the Exterior Drawer Box Depth

The depth of the drawer box is the primary metric that dictates the length of your slide.

1. Remove the drawer box entirely from the cabinet opening.
2. Place the drawer box on a flat, level work surface.
3. Measure the exterior length of the drawer box from the front-most face of the wooden box structure to the back-most face.
4. Do not include the decorative applied drawer front (the finished faceplate that matches your cabinet doors) in this measurement. The decorative front sits outside the cabinet carcass and does not interact with the slide length.

Pro-Tip: If your drawer box measures a non-standard depth, such as 21-3/8 inches, always round down to the nearest even standard slide size. In this scenario, purchase a 20-inch drawer slide. Using a slide that is longer than the drawer box can prevent the drawer from closing fully and flush against the cabinet frame.

Step 3: Measure the Internal Cabinet Depth (Clearance Depth)

You must verify that the cabinet carcass has enough internal depth to accommodate the slide length calculated in Step 2.

1. Extend your tape measure inside the cabinet opening.
2. Measure from the inside front face of the cabinet frame (or the front edge of a frameless cabinet) straight back to the rear wall or the back panel of the cabinet.
3. Ensure the tape measure is perfectly perpendicular to the cabinet face to avoid diagonal inflation of the measurement.
4. Check for internal obstructions such as plumbing lines, electrical conduit, structural stretchers, or pocket screw joints that could impede the rearward travel of the slide.

Warning: Your measured internal cabinet depth must be at least 1/8 inch to 1/2 inch deeper than the nominal slide length you intend to buy. For example, a standard 22-inch slide requires an absolute minimum internal cabinet clear depth of 22-1/8 inches (and ideally 22-1/4 inches for undermount configurations) to prevent the slide mechanism from bottoming out.

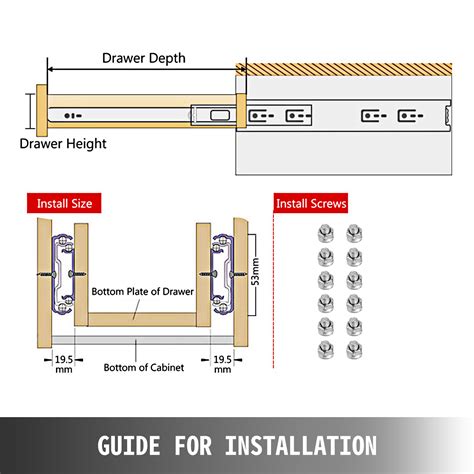

Step 4: Measure the Opening Width and Calculate Side Clearance

For side-mount slides to roll smoothly without binding, the gap between the drawer box and the cabinet interior walls must be uniform.

1. Measure the clear internal width of the cabinet opening at the top, middle, and bottom of the opening.
2. Measure the overall exterior width of your drawer box using a digital caliper or a high-precision tape measure.
3. Subtract the drawer box width from the internal cabinet opening width.
4. For standard side-mount slides, this difference must equal exactly 1.0 inch (yielding 1/2 inch of space on each side). If the difference is less than 1.0 inch, the drawer will bind; if it is greater than 1-1/16 inches, the slide members may fail to engage or will sag under load.

Step 5: Measure and Verify Vertical Clearance

Ensure there is adequate vertical clearance for the drawer box to clear horizontal rails or face frame lips.

1. Measure the height of the cabinet opening from the bottom rail to the top rail.
2. Measure the overall height of the drawer box.
3. Compare the measurements to ensure there is at least 1/8 inch of clearance at both the top and bottom of the drawer box. Undermount slides require additional bottom clearance (typically 9/32 inch to 15/32 inch) to allow room for the locking devices.

Technical Clearance and Sizing Specifications by Slide Type

To streamline your selection process, reference this table comparing the spatial requirements, standard formulas, and clearance profiles across the most common slide architectures.

Common Sizing Failures and On-Site Corrective Actions

Even with careful planning, spatial deviations can occur due to warped wood, out-of-square cabinet boxes, or settling walls. Below are the most common mechanical failures experienced during installation, their root causes, and how to resolve them on-site.

The Drawer Binds, Catches, or Requires Excessive Force to Open

• Root Cause: The cabinet opening is too narrow for the drawer box, or the cabinet walls are out of square (bowed inward in the middle). This compresses the ball bearings within the slide channels, preventing free travel.
• Actionable Fix: Use a digital caliper to locate the tight spot. If the cabinet walls are out of square, unscrew the cabinet-side slide member and insert thin plastic shims or veneer strips behind the slide at the tightest points to establish a uniform 1/2-inch clearance. If the entire drawer box is built too wide, use a hand plane or a belt sander to remove up to 1/16 inch of material from both outer side panels of the drawer box, then refinish and reinstall.

The Drawer Sags, Pops Off the Tracks, or Moves Laterally

• Root Cause: The cabinet opening is too wide relative to the drawer box width, leaving a combined side clearance gap greater than 1-1/16 inches. The inner drawer-side slide cannot securely engage with the outer cabinet-side track.
• Actionable Fix: Remove the cabinet-side slides. Install wooden spacer blocks or shim washers behind the cabinet slide members to bring the slides closer to the drawer box. Continue shimming until the overall interior distance between the mounting faces of the left and right slides matches the exact width of the drawer box plus 1.0 inch.

The Drawer Box Protrudes Past the Cabinet Face Frame

• Root Cause: The slide length selected is too long for the available interior clearance, or the slide was mounted too far forward on the face frame, preventing the cabinet member from fully recessing.
• Actionable Fix: Verify that the slide length does not exceed your drawer box depth. If the slide size is correct, loosen the mounting screws and setback the cabinet-side slide member. The front edge of the cabinet-side slide must sit precisely 1/16 inch to 1/8 inch setback from the front face of the cabinet frame (or frameless front edge) to ensure the drawer face sits flush.

Frequently Asked Questions

Should drawer slides be the same length as the drawer box?

Yes, for the vast majority of standard side-mount, ball-bearing, and European roller slides, the slide length should match the overall exterior depth of the drawer box. If you have a non-standard drawer box length, always round down to the nearest standard even-inch slide size to ensure proper clearance and operation.

How much smaller should a drawer box be than the cabinet opening?

For standard side-mount drawer slides, the drawer box must be exactly 1.0 inch narrower than the internal width of the cabinet opening. This provides a precise 1/2-inch clearance gap on each side. For undermount slides, the width calculation depends on the thickness of your drawer sides, requiring a specific clearance formula provided by the manufacturer.

What is the standard setback for mounting drawer slides?

For overlay drawer fronts, the front of the drawer slide should be mounted with a setback of 1/16 inch to 1/8 inch from the front edge of the cabinet opening. For inset drawer fronts, the setback must equal the thickness of the decorative drawer front panel plus 3/32 inch to ensure the drawer face sits flush with the cabinet face frame when closed.

Can I install a 22-inch drawer slide if my cabinet depth is exactly 22 inches?

No. A 22-inch slide requires an absolute minimum internal clearance depth of 22-1/8 inches to prevent the rear of the slide from pressing against the back panel of the cabinet. If your internal cabinet depth is exactly 22 inches, you must purchase a 20-inch slide to guarantee adequate installation clearance.
