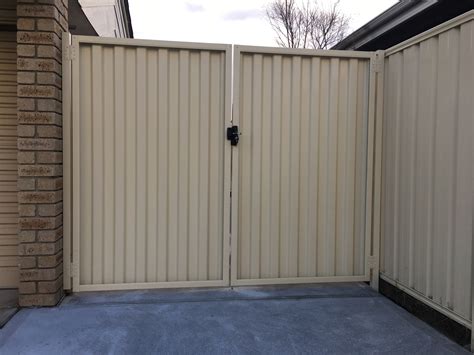

How To Build A Colorbond Gate: A Professional DIY Construction Guide

Constructing a durable Colorbond gate requires precise measurements of the daylight opening, the fabrication of a galvanized steel internal frame, and the integration of genuine BlueScope steel cladding. For optimal longevity, the assembly must account for a 20mm to 30mm hardware clearance and utilize cold-cutting techniques to prevent the edge-corrosion common with abrasive grinding.

Engineering Essentials and Material Procurement

Before initiating the fabrication of a Colorbond gate, you must understand that the gate is a dynamic structure subject to wind loading and constant mechanical stress. Unlike a fixed fence panel, a gate requires a rigid, squared frame—typically made from galvanized SHS (Square Hollow Section) or specialized gate-frame kits—to prevent sagging over time. Using the fence's "infill" sheets alone without a structural perimeter will result in immediate structural failure.

Standard Colorbond gates are usually designed for a 900mm to 1000mm opening, but custom widths are common. If your gate exceeds 1200mm in width, it is categorized as a "wide gate" and requires diagonal cross-bracing (a "brace and bit" configuration) to transfer the load from the top of the latch side to the bottom of the hinge side.

Material and Tool Checklist

• Core Materials:




  • Colorbond Infill Sheets (Standard height is 1800mm, profile to match existing fence).
  • Galvanized SHS Frame (25x25mm or 50x50mm depending on gate size).
  • Colorbond C-Channels (U-shaped tracks that hold the sheet edges).
  • Self-drilling "Tek" screws (10-16 x 16mm, color-matched to the steel).
  • Heavy-duty gate hinges (G-brackets or wrap-around hinges).
  • Gravity latch or D-latch assembly.
  • Cold-galvanized primer spray (for treating cut steel edges).

• Prerequisite Tools:




  • Power drill and impact driver with magnetic hex bits.
  • Metal-cutting circular saw with a cold-friction blade or a specialized nibbler.
  • Angle grinder with a 1mm flap disc (for deburring only).
  • Spirit level (minimum 900mm).
  • String line and chalk.
  • Heavy-duty F-clamps.

• Project Benchmarks:




  • Estimated Budget: $150 – $350 AUD depending on hardware quality and steel gauge.
  • Estimated Duration: 4 to 6 hours for a single-leaf gate.
  • Mandatory Knowledge: Proficiency in metal cutting, vertical leveling, and torque management for self-drilling fasteners.

Executing the Colorbond Gate Fabrication Process

Step 1: Measuring the "Daylight Opening"

The most critical step in gate construction is determining the exact dimensions of the frame. Measure the distance between the two gate posts at three points: the top, the middle, and the bottom. If the posts are not perfectly plumb, use the narrowest measurement as your baseline.

To determine the frame width, subtract 30mm from the total opening width. This provides 15mm on the hinge side for pivot clearance and 15mm on the latch side for the strike plate and latch engagement. For the height, the gate should typically match the height of the adjacent fence panels, usually allowing for a 50mm ground clearance to prevent the accumulation of debris and moisture at the bottom of the Colorbond sheet.

Step 2: Fabricating the Galvanized Frame

Layout your galvanized SHS on a flat, level surface. You have two primary methods for joining the frame: mitered corners (45-degree cuts) or butt joints (90-degree cuts). Mitered corners offer a more professional, "closed" finish that prevents water from entering the tube, but they require high precision.

1. Cut the two vertical "stiles" and two horizontal "rails" to your calculated dimensions.
2. If you are not welding the frame, use internal plastic or steel corner joiners. If welding, ensure you use a MIG or ARC welder to tack the corners first, checking for squareness by measuring the diagonals. The diagonals must be identical within a 2mm tolerance.
3. Once the frame is squared and fixed, apply cold-galvanized spray to any welds or cut edges. This creates a sacrificial anode layer that prevents rust from forming under the Colorbond cladding.

Warning: Never leave raw, unpainted steel edges exposed. In coastal or high-humidity environments, an untreated edge will begin to oxidize within weeks, leading to "bleeding" rust stains on your Colorbond sheets.

Step 3: Installing the C-Channel and Infill

The Colorbond sheet sits inside a U-shaped C-channel which is fastened to the internal perimeter of your frame.

1. Measure and cut the C-channels to fit the inside dimensions of your frame.
2. Secure the C-channels to the frame using color-matched Tek screws spaced every 400mm. Ensure the screws are driven straight; tilted screws will prevent the Colorbond sheet from sliding in smoothly.
3. Cut the Colorbond infill sheet to size. When cutting, avoid using an abrasive thin-cut blade on an angle grinder if possible. The heat generated by abrasive blades destroys the galvanized coating and the paint's bond to the steel. A metal-cutting circular saw (cold cut) or manual tin snips are preferred.
4. Slide the sheet into the C-channels. If the gate is wide, you may need to overlap two sheets. Ensure the overlap "faces away" from the primary line of sight (usually the street side) for a cleaner aesthetic.

Step 4: Securing the Cladding

Once the sheet is seated within the channels, it must be fastened to prevent rattling and to add shear strength to the gate.

1. Drive Tek screws through the C-channel and into the "valleys" (the flat parts) of the Colorbond profile.
2. Fasten the sheets at the top and bottom rails.
3. For taller gates (1.8m+), add a screw in the center of the vertical stiles to ensure the sheet does not bow during high winds.

Pro-Tip: Use a lead-free pencil or a fine-tip marker for measurements. Standard graphite pencils contain carbon, which reacts electrochemically with the Zincalume coating on Colorbond steel, causing accelerated corrosion.

Step 5: Mounting Hinges and Hanging the Gate

The longevity of the gate depends entirely on how it is hung. The "heavy" side of the gate is the hinge side; it bears all the rotational torque.

1. Attach the hinges to the gate frame while the gate is still on the ground. Position the top hinge approximately 150mm from the top and the bottom hinge 150mm from the bottom.
2. Prop the gate up in the opening using wooden blocks or "packers" to set the ground clearance.
3. Use a spirit level to ensure the gate is perfectly vertical.
4. Fix the hinges to the post. If the post is steel, use heavy-duty 14-gauge Tek screws. If the post is timber, use galvanized coach screws.
5. Remove the blocks and test the swing. The gate should stay in place at any angle; if it swings open or shut on its own, the hinge axis is not plumb.

Step 6: Latch Alignment and Finishing

Install the latch at a convenient height, typically 1000mm to 1200mm from the ground. Ensure the striker pin has enough "travel" to account for any future settling of the gate posts. If you are using a double gate, install a "drop bolt" on the stationary leaf to secure it into the ground.

Technical Standards for Colorbond Gate Components

Rectifying Common Structural and Aesthetic Defects

Even with careful planning, metal fabrication can present challenges. Addressing these issues immediately during the build phase prevents long-term maintenance headaches.

• Gate Sagging (Latch-side Drop)




  • Root Cause: Lack of diagonal bracing or insufficient wall thickness in the frame steel, causing the frame to "parallelogram" under its own weight.
  • Actionable Fix: Install a stainless steel turnbuckle cable kit diagonally from the top hinge corner to the bottom latch corner. Tighten the turnbuckle to pull the latch side back up into square.

• Excessive Noise and Rattling




  • Root Cause: The Colorbond infill sheet is slightly smaller than the internal C-channel dimensions, or there are insufficient fasteners.
  • Actionable Fix: Apply a small bead of color-matched silicone in the "valleys" where the sheet meets the C-channel. Ensure there is a Tek screw in every second rib of the profile.

• Premature Surface Rust at Edges




  • Root Cause: Use of an angle grinder to cut sheets, which "burns" the protective coating and leaves jagged, unsealed edges.
  • Actionable Fix: Remove the affected sheet, sand the edge back to shiny metal, and apply a high-quality etch primer followed by a Colorbond-matched touch-up spray. In the future, always use cold-cutting tools.

• Hinges Binding or Squeaking




  • Root Cause: Misalignment of the hinge pin axis or over-tightening of the fasteners, causing the hinge leaf to warp.
  • Actionable Fix: Loosen the fasteners and use thin metal shims (packers) behind the hinge leaf to ensure the pins of the top and bottom hinges are on the exact same vertical plane.

Frequently Asked Questions

Can I build a Colorbond gate without welding?

Yes, you can use specialized internal corner "elbows" or "joiners" designed for 25mm or 50mm SHS. These are secured by Tek screws or pop rivets, creating a mechanical bond that is sufficient for standard residential gate widths without the need for a welding machine.

How do I stop my Colorbond gate from blowing open in the wind?

The surface area of a Colorbond gate acts as a sail. To prevent damage, install a heavy-duty gravity latch with a padlocking facility. For double gates, a "monkey tail" drop bolt that engages at least 50mm into a concrete sleeve or metal pipe in the ground is essential.

Is it necessary to use a middle rail on a Colorbond gate?

For a standard 1.8m high gate, a middle rail is highly recommended. It provides an extra fastening point to prevent the infill sheet from "oil canning" (popping in and out) during temperature fluctuations and increases the overall torsional rigidity of the frame.

What is the best way to cut Colorbond sheets for a gate?

The industry standard is to use a circular saw fitted with a specialized metal-cutting blade (often called a "cold cut" blade). This method produces minimal sparks and keeps the steel cool, preserving the integrity of the galvanized and painted layers.

Master Your Perimeter Construction

Building a Colorbond gate provides a seamless, secure, and low-maintenance entrance that perfectly complements modern steel fencing. By adhering to precise engineering tolerances and using high-quality galvanized frames, you ensure a professional result that will withstand the elements for decades.
