How To Lock A Trailer Hitch Securely To Prevent Theft And Damage

Securing a trailer hitch requires deploying a combination of coupler locks, receiver pin locks, and heavy-duty security chains that match your specific towing class and tongue weight capacities. By selecting hardened steel locking mechanisms and following a strict multi-point locking protocol, you can eliminate opportunistic theft and ensure your rig remains firmly attached to your tow vehicle.

Pre-Operation and Equipment Checklist

Before attempting to secure your towing setup, you must assess the structural specifications of your equipment, including your hitch receiver size, coupler style, and gross vehicle weight rating (GVWR). Using mismatched or substandard security hardware can compromise your defense against trailer theft or cause structural failure under dynamic highway loads.

• Essential Gear, Tools, and Materials:


  • Heavy-duty coupler lock (pin-style, universal adjustable, or custom-fit latch lock)
  • Hardened steel receiver lock (matching your 1-1/4 inch, 2-inch, or 2-1/2 inch hitch receiver)
  • Weather-resistant graphite lubricant or silicone spray
  • High-security heavy-duty padlock or integrated sleeve lock
  • Safety chain extension links (if required for slack management)
• Mandatory Prerequisite Knowledge and Standards:


  • Verification of SAE J684 towing standards for coupler security
  • Identification of ball mount shank dimensions and pin hole diameters (typically 5/8-inch or 1/2-inch)
  • Understanding of keyed-alike systems versus individual keys for multi-point security
• Budget and Duration Benchmarks:


  • Financial investment: $30 to $150 depending on steel grade and lock complexity
  • Time required: 5 to 10 minutes for full multi-point installation

Step-by-Step Procedure for Securing a Trailer Hitch

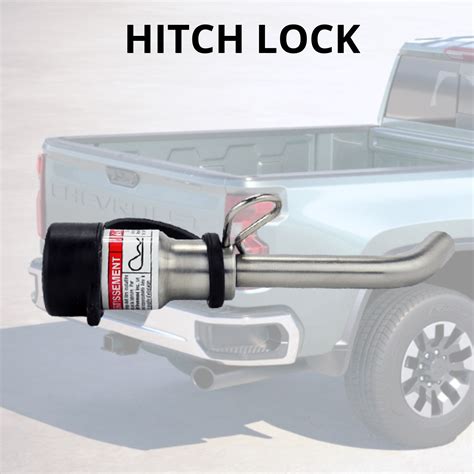

Step 1: Secure the Hitch Receiver to the Vehicle Frame

1. Insert the solid steel or hollow steel ball mount shank into your vehicle's hitch receiver tube until the cross-drilled mounting holes align perfectly with the holes on the receiver collar.
2. Slide a hardened steel receiver pin through the aligned holes from the driver side to the passenger side, ensuring the threaded or groove end passes completely through the opposite side.
3. Attach the locking mechanism head or locking cotter pin to the exposed end of the receiver pin and engage the internal locking cylinder.
4. Warning: Never use standard non-locking bolts, standard hardware store carriage bolts, or bent wire cotter pins in place of a certified Class III or Class IV hitch pin, as these can easily shear under braking forces or be pulled out by hand.

Step 2: Lower and Engage the Trailer Coupler over the Hitch Ball

1. Crank your tongue jack down until the trailer coupler socket settles completely and securely over the top of the trailer hitch ball.
2. Snap the coupler locking lever or handwheel down into the closed position to trap the ball securely inside the steel housing.
3. Visually and physically inspect the underside of the coupler head to ensure the internal jaw or clamping mechanism has fully locked around the lower circumference of the ball.
4. Pro-Tip: Raise the trailer tongue slightly using the jack after latching the coupler; if the trailer lifts the rear suspension of your tow vehicle slightly, you have confirmed a true, positive mechanical connection.

Step 3: Install the Primary Coupler Lock

1. Take your specific coupler lock (such as a universal arched lock or a pin-style coupler lock) and insert the locking shaft directly through the lock holes on the coupler latch mechanism.
2. For coupler designs utilizing a latch handle that folds down, insert the pin through the safety hole in the handle to prevent it from vibrating open or being manually lifted.
3. For universal adjustable lock designs, insert the solid hardened steel bar through the throat of the coupler cavity where the ball would normally sit, and slide the locking body onto the end until it clicks.
4. Turn the key clockwise or counterclockwise to engage the internal tumbler mechanism, then pull firmly on the lock body to ensure the shackle is fully seated and cannot be yanked free.

Step 4: Hook Up and Cross the Safety Chains

1. Cross your safety chains in an "X" pattern underneath the coupler tongue before attaching them to the designated loops on your hitch receiver.
2. Ensure the chains have enough slack to allow for tight turning radiuses without dragging on the asphalt, but remain short enough to cradle the tongue if the primary ball connection fails completely.
3. Secure the chain hooks using built-in spring latches or specialized screw-gate shackles to prevent them from bouncing loose during transit.

Comparison of Trailer Hitch Locking Mechanisms

Common Site Failures and Field Fixes

• Frozen or Rusted Lock Cylinders:


  • Root Cause: Moisture intrusion combined with road salt and oxidation jams the internal tumbler pins inside the lock core.
  • Actionable Fix: Apply a specialized graphite-based lubricant or aerosol penetrating fluid directly into the keyway. Insert the key and gently jiggle it while tapping the lock body with a small rubber mallet to break up internal corrosion without bending the key.
• Receiver Pin Misalignment:


  • Root Cause: Sagging suspension, heavy tongue weight, or debris inside the receiver tube prevents the pin holes from lining up.
  • Actionable Fix: Use your tongue jack to adjust the vertical height of the trailer or place chocks under the tires and gently nudge the vehicle forward or backward until the holes align with zero binding pressure on the pin.
• Key Loss or Jammed Locking Mechanism:


  • Root Cause: Debris buildup inside the locking pawls or lost keys during transit leave the lock permanently engaged.
  • Actionable Fix: Spray the mechanism generously with penetrating oil. If the key is lost, use a cordless angle grinder equipped with a thin metal-cutting abrasive disc to carefully slice through the hardened steel shackle while shielding the trailer finish with a welding blanket.

Frequently Asked Questions

Can I leave my trailer hitch lock on while driving?

Yes, you should always leave your receiver pin lock and latch-style coupler lock fully engaged while towing down the highway. These locks are specifically engineered to withstand the dynamic shear loads, vibrations, and tensile forces experienced during transit. Never use universal block-style storage locks while driving, as they are designed exclusively for parked, unhitched trailers.

What is the most secure type of trailer hitch lock?

Integrated heavy-duty coupler locks and high-grade boron steel puck locks offer the highest level of security available on the market today. These devices feature thick shields that completely encase the locking shackle, leaving zero exposed metal for bolt cutters, crowbars, or hydraulic rescue tools to grip.

How do I prevent my trailer locks from rusting shut?

Prevent moisture damage by spraying your lock cylinders and moving parts with a dry PTFE lubricant or specialized graphite spray every three to four months. Additionally, invest in rubber dust caps or weather-resistant covers that snap directly over the key slots to block out road salt, rain, and dirt during storage.

Are all hitch receiver pins the same size?

No, hitch receiver pins come in two primary standard diameters: 1/2-inch pins designed for smaller Class I and Class II light-duty hitches (1-1/4 inch receivers), and 5/8-inch pins designed for heavy-duty Class III, IV, and V hitches (2-inch and 2-1/2 inch receivers). Always verify your specific hitch tube dimensions before purchasing a replacement lock set.

What should I do if someone tries to drill out my trailer lock?

If a thief attempts to compromise your lock with a drill bit, the hardened steel internal pins will typically destroy the drill bit, but the lock body may become permanently jammed. You will need to use a portable rotary tool with a carbide grinding bit or a cutting torch to carefully remove the damaged lock without gouging or weakening the structural steel of your hitch coupler.
