How To Level The Floor: The Ultimate Pro Guide For Subfloor Restoration
Leveling an uneven floor requires a systematic approach involving laser surveys, precise moisture testing, and the application of self-leveling compounds or structural shims. Achieving a structurally sound and flat substrate ensures that finished flooring materials like luxury vinyl tile, hardwood, or large-format tiles do not crack, buckle, or prematurely fail.
Pre-Operation & Equipment Checklist
Tackling a subfloor leveling project demands careful site preparation, specialized measuring equipment, and strict adherence to material mixing ratios. Skipping diagnostic checks regarding structural deflection or moisture vapor emission rates will inevitably lead to bond failure or finished floor distortion.
- Essential gear, tools, and materials: Rotary laser level or aluminum box level, high-output Milwaukee or DeWalt mixing drill with a paddle mixer, spiked roller, gauge rake, heavy-duty scraping tool, moisture meter, vacuum, primer roller, self-leveling underlayment bags, and heavy-duty concrete primer.
- Mandatory prerequisite knowledge and standards: Verification that floor joists meet minimum deflection standards (L/360 for standard tile, L/720 for natural stone) and ensuring ambient room temperatures remain between 65°F and 85°F during installation.
- Estimated budget and duration benchmarks: Expect material costs ranging from $1.50 to $3.00 per square foot depending on the depth of correction, with a total execution timeline of 24 to 48 hours to account for mandatory primer and compound curing times.
Step-by-Step Subfloor Preparation and Leveling Workflow
Step 1: Surface Inspection and Structural Remediation
Begin by completely clearing the room of baseboards, fasteners, and existing flooring materials down to the structural subfloor, whether it is plywood, OSB, or concrete. Sweep and industrial-vacuum the entire surface to eliminate dust and debris that could compromise bond strength. Inspect the exposed subfloor for loose panels, protruding screw heads, and structural damage, driving down any high fasteners and replacing rotted or delaminated wood sections.
Warning: Never pour self-leveling compound over active cracks in concrete without first routing them out and filling them with a structural epoxy crack filler.
Step 2: Laser Surveying and Deflection Mapping
Set up a rotary laser level in the center of the space and project a 360-degree reference plane across the room. Measure down from the laser line to the subfloor at grid intersections spaced roughly three feet apart to map out high and low spots. Mark the lowest point in the room as your baseline, and identify the highest point, which dictates the absolute minimum thickness required for your self-leveling pour.
Step 3: Priming and Perimeter Sealing
Seal off all potential escape routes for liquid underlayment, including floor vents, door thresholds, gaps along the base of walls, and pipe penetrations, using expanding foam or closed-cell foam tape. Apply a manufacturer-approved acrylic primer or moisture-mitigating primer using a push broom or roller. Work the primer thoroughly into the pores of the concrete or wood subfloor, ensuring complete coverage without leaving puddles.
Pro-Tip: For wood subfloors, always staple down metal lath or wire mesh over a layer of felt paper before priming to provide the mechanical keying necessary for cementitious underlayments.

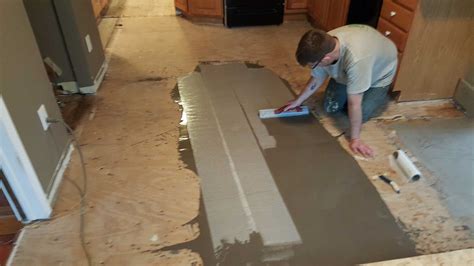

Step 4: Mixing and Pouring the Self-Leveling Compound
Calculate the total bag yield and bucket requirements based on your square footage and maximum depth deficiencies. Measure clean potable water into your mixing vessel first, slowly adding the self-leveling powder while continuously mixing with a high-torque drill at 650 RPM for two to three minutes. Pour the mixed material continuously, maintaining a wet edge, and use a gauge rake to spread the compound to your target depth before running a spiked roller through it to release trapped air bubbles and eliminate roller marks.
How To Level Plywood Floor For Tile | Viewfloor.co
Comparative Analysis of Floor Leveling Methods
| Leveling Method | Ideal Substrate | Maximum Thickness | Cure Time to Foot Traffic | Primary Application |
|---|---|---|---|---|
| Self-Leveling Underlayment | Concrete, Plywood | 1.5 inches (unextended) | 4 hours | Whole-room correction and severe slopes |
| Cementitious Patching Compound | Concrete, Plywood | Up to 1 inch | 30 to 60 minutes | Spot repairs, trenches, and localized low spots |
| Plywood Shimming & Underlayment | Wood Subfloors | Variable (per shim specs) | Immediate | Correcting structural framing sag and height transitions |
| Screed Strips & Lightweight Concrete | Concrete Subfloors | 3+ inches | 24 to 72 hours | Heavy commercial applications and extreme height builds |
Common Site Failures and Field Fixes
- Root Cause: Rapid drying or draft exposure causing surface cracking and curling.
- Actionable Fix: Close all windows, shut off HVAC systems during the pour and initial 24-hour cure window, and mist the surface if specified by the manufacturer.
- Root Cause: Delamination or separation of the self-leveling compound from the subfloor.
- Actionable Fix: Scrape away loose material, diamond-grind or scarify the concrete substrate to expose clean pores, vacuum thoroughly, and reapply a dedicated bonding primer before repouring.
- Root Cause: Compound leaking into adjacent rooms or subfloor cavities through unsealed gaps.
- Actionable Fix: Immediately dam the leak area with expanding foam or fast-setting hydraulic cement, allow it to set, and top-dress the affected low spot with a secondary batch of underlayment once cured.
Frequently Asked Questions
How thick can self-leveling compound be poured?
Standard self-leveling underlayments can typically be poured up to one inch thick in a single application. If your floor requires depths greater than one inch, you must mix washed pea gravel into the underlayment according to the manufacturer's aggregate extension guidelines or build up the low spot in multiple layered pours.
Can I level a plywood subfloor the same way as concrete?
Yes, but wood subfloors require specific preparatory steps because wood flexes and expands differently than concrete. You must verify that the wood subfloor is structurally rigid, apply a specialized wood primer, and often install a galvanized metal lath mesh to give the cementitious compound a mechanical anchor point.
How long do I need to wait before installing flooring over leveled concrete?
Cure times vary based on ambient humidity, temperature, and product formulation, but most modern self-leveling compounds accept foot traffic in two to four hours. However, moisture-sensitive finished flooring like hardwood or luxury vinyl planks requires waiting anywhere from 24 to 72 hours and passing a strict relative humidity moisture test.
What happens if I miss a gap during the perimeter sealing process?
If a gap is left unsealed, the liquid self-leveling compound will quickly flow into the void, potentially leaking into crawlspaces, wall cavities, or lower levels. Always double-check your perimeter foam tape barriers and use expanding foam to seal off all potential escape points prior to mixing any material.
