Structural Bamboo Joinery: A Comprehensive Guide To Professional Connections And Lashing

To successfully join bamboo poles for structural applications, builders must utilize techniques that account for the culm's hollow geometry and high longitudinal tensile strength while mitigating its tendency to split under radial pressure. Professional-grade joints rely on precise nodal placement, where connections occur within 50mm of a node to leverage the natural diaphragms for crush resistance, combined with high-tension lashing or reinforced mechanical fasteners. Adherence to ISO 22156 standards ensures that these connections maintain structural integrity by distributing loads across the culm’s fibrous perimeter rather than concentrated points.

Engineering Requirements and Pre-Construction Preparation

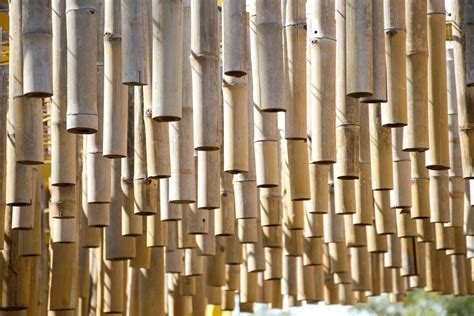

Before initiating any bamboo construction, it is critical to understand that bamboo is a non-homogeneous material. Unlike timber, it cannot be easily nailed or screwed without immediate splitting. The success of a joint depends heavily on the curing state of the bamboo and the tools used to manipulate its silicate-rich outer skin. Structural bamboo must be seasoned to a moisture content of 10% to 15% to prevent shrinkage post-assembly, which would otherwise loosen all lashing and friction-fit joints.

Essential Equipment and Material Benchmarks

• Cutting Tools: Japanese pull saws (Dozuki or Kataba) for fine-tooth precision, high-speed steel (HSS) drill bits to prevent splintering, and sharp chisels for mortise work.
• Measurement Gear: Calipers for matching culm diameters (essential for fishmouth joints), contour gauges, and spirit levels for alignment.
• Binding Materials: UV-stabilized polyester cord, galvanized steel wire (1.6mm to 2.0mm), or traditional natural fibers like rattan and hemp treated with borax.
• Mechanical Fasteners: M8 to M12 galvanized bolts, threaded rods, and bamboo or hardwood dowels (pins).
• Estimated Duration: A complex structural frame typically requires 2 to 4 man-hours per major multi-pole intersection, accounting for marking, fitting, and lashing.
• Mandatory Standards: All load-bearing poles should be Grade A culms with a minimum wall thickness of 10mm for primary structural members.

Step-by-Step Execution of Structural Bamboo Joints

The following methods represent the industry standard for creating rigid, load-bearing connections in bamboo architecture.

Step 1: Strategic Nodal Positioning and Marking

The most common failure in bamboo construction is the crushing of the hollow internode. Every primary joint must be positioned as close to a node (the ring-like partition) as possible. The internal diaphragm of the node acts as a natural reinforcement that prevents the culm from collapsing when tightened or loaded.

1. Identify the "bottom" (butt) and "top" (tip) of each pole to ensure the taper is accounted for in your design.
2. Mark your cut lines so that the intersection point of the joining pole sits within 3cm to 5cm of a node.
3. Use a paper template wrapped around the culm to ensure a perfectly perpendicular cut line, as bamboo is rarely perfectly circular.

Step 2: Crafting the Fishmouth (Birdsmouth) Joint

The fishmouth joint is the gold standard for perpendicular or angled connections, providing a concave seat for one pole to rest securely against the convex surface of another.

1. Measure the diameter of the receiving pole (Pole B) using calipers.
2. Transfer this diameter to the end of the joining pole (Pole A). Use a contour gauge to replicate the curve of Pole B onto the end of Pole A.
3. Use a coping saw or a fine-toothed pull saw to make two angled cuts, forming a "V" or "U" shape.
4. Refine the curve using a half-round rasp or a drum sander attachment on a drill until the two poles fit together with zero visible gaps.

Pro-Tip: A tight "wood-to-wood" fit is essential; if the joint relies solely on the lashing to fill gaps, it will eventually rack and become unstable.

Step 3: Implementing the Pin and Bolt Method

For high-shear applications, mechanical fasteners are necessary. However, a bolt through a hollow internode will eventually split the bamboo as it is tightened.

1. Drill a pilot hole through both poles at the intersection point.
2. Insert a hardwood or bamboo dowel (the pin) through the pilot hole. This pin should fit snugly.
3. If using a steel bolt, you must fill the hollow cavity of the bamboo at the joint site with a mortar mix (1 part cement, 3 parts sand) or an epoxy resin. Allow this to cure before final tightening.
4. Apply a large washer to both the bolt head and the nut side to distribute the pressure across the outer skin.

Warning: Never over-torque bolts in unfilled bamboo. The radial tension will cause a longitudinal split that travels the entire length of the culm, destroying its structural value.

Step 4: Technical Lashing and Frapping

Lashing provides the "muscle" of the joint. The key to a structural lash is the "frap"—the turns made between the two poles that pull the lashing taut.

1. Start with a clove hitch on the vertical pole, just below the intersection.
2. Wrap the cord around both poles in a square lashing pattern, maintaining high tension with every pass. Complete at least 5 to 7 wraps.
3. Execute "frapping turns" by winding the cord between the two poles, effectively tightening the previous wraps. This is where the majority of the joint's tension is generated.
4. Finish with another clove hitch or a timber hitch, and tuck the tail securely.

Step 5: Gusset Plate Reinforcement for Multi-Way Joints

Where more than two poles meet (such as a ridge beam or a tripod), use plywood or steel gusset plates.

1. Sandwich the bamboo poles between two pieces of 12mm exterior-grade plywood.
2. Pass threaded rods through the plywood and the bamboo.
3. Ensure the bamboo culms at these points are filled with mortar to resist the clamping force of the plates.

Comparative Metrics for Bamboo Connection Methods

The selection of a joining method depends on the intended load, the skill of the builder, and the available budget. The following table provides a technical comparison of the most common techniques used in modern bamboo engineering.

Common Structural Failures and Field Fixes

Even with precise execution, bamboo’s organic nature can present challenges during and after construction. Identifying the root cause of a failure is the only way to apply a permanent fix.

• Scenario: Longitudinal Splitting at the Bolt Site




  • Root Cause: Excessive torque applied to a hollow internode without internal support or mortar filling.
  • Actionable Fix: Remove the bolt and wrap the split section tightly with galvanized wire or stainless steel hose clamps. Inject an epoxy adhesive into the split. Re-drill and use a threaded rod with extra-large washers after filling the cavity with non-shrink grout.

• Scenario: Lashing Loosening Over Time




  • Root Cause: Natural shrinkage of the bamboo culm or the use of hygroscopic natural fibers like untreated hemp.
  • Actionable Fix: Replace loosened natural lashings with UV-stabilized synthetic cord or use a "wire twister" tool to apply high-tension galvanized wire ties. Always ensure bamboo is fully seasoned before the initial lashing.

• Scenario: Joint Racking (Wobbling) in the Structure




  • Root Cause: Lack of diagonal bracing or poor fitment in the fishmouth cuts.
  • Actionable Fix: Install "knee braces" (short diagonal poles) at 45-degree angles to the main intersections. Use the pin-and-bolt method for these braces to ensure they cannot slide under lateral wind loads.

• Scenario: Biological Decay at Ground-Contact Joints




  • Root Cause: Untreated bamboo ends absorbing ground moisture through capillary action.
  • Actionable Fix: Elevate the structure using concrete footings or steel "shoes." If a joint has already begun to rot, cut out the affected section and replace it with a "sleeve joint," where a slightly larger diameter culm is slid over the original pole and pinned.

Frequently Asked Questions

Which bamboo species are best for load-bearing joints?

Species such as Guadua angustifolia (from South America) and Dendrocalamus asper (found in Southeast Asia) are preferred for structural work due to their thick walls and high fiber density. These species are less likely to split during the drilling or carving process compared to thinner-walled species like Phyllostachys edulis (Moso).

Can I use wood glue to join bamboo poles?

Standard PVA wood glue is generally ineffective on the outer skin of bamboo because of its high silica content, which acts as a natural repellent. For glue to work, you must sand away the outer "skin" to reveal the fibers and use a high-quality polyurethane or epoxy adhesive.

How do I prevent bamboo from splitting while drilling?

Always use a high-speed drill and apply very light pressure. It is often helpful to place a piece of masking tape over the drill site to prevent the fibers from lifting. Starting with a small pilot hole and gradually increasing the bit size also significantly reduces the risk of radial fractures.

Is it better to use wire or cord for lashing?

For permanent structures, galvanized steel wire or UV-rated polyester cord is superior to natural fibers. Wire allows for "tightening by twisting," which provides a much higher clamping force than manual cord tensioning, though cord is often preferred for its aesthetic appeal and flexibility.

Build Your Sustainable Future with Bamboo

Mastering the art of bamboo joinery allows you to create carbon-sequestering structures that are both beautiful and incredibly resilient. Start your next project by sourcing high-quality, borax-treated culms and applying these professional-grade connection techniques to ensure a lifetime of structural stability.
