How To Install Pallet Racking: Complete Structural Guide

Proper pallet racking installation requires precise slab evaluation, exact vertical alignment, and strict adherence to RMI standards to ensure warehouse safety and seismic compliance. This guide outlines the rigorous engineering steps, anchoring protocols, and safety checks required to assemble industrial storage systems from the ground up.

Pre-Installation Engineering & Site Verification

Installing heavy-duty industrial storage structures demands thorough site analysis, specialized heavy machinery, and strict layout planning before any steel components touch the warehouse floor. Operators must verify that the concrete slab thickness and concrete compressive strength meet or exceed the rack manufacturer specifications, typically requiring a minimum of 3,000 PSI concrete that is at least four to six inches thick.

• Essential Gear and Materials: Rotary hammer drills, industrial-grade wedge anchors (typically 1/2-inch by 4-inch minimum), laser levels, chalk lines, heavy-duty impact wrenches, shims of various gauges, safety harnesses, rigging equipment, fork trucks, and scissor lifts.
• Prerequisite Standards & Knowledge: Installers must review the Rack Manufacturers Institute (RMI) guidelines, inspect the concrete for expansion joints or structural cracks, and ensure crew members are trained in OSHA-compliant elevated work and material handling.
• Operational Benchmarks: A standard two-man crew can typically assemble and anchor 30 to 40 bays of selective pallet rack per 8-hour shift, assuming staging areas are clear and material is staged directly adjacent to the installation zone.

Step-by-Step Pallet Racking Assembly and Anchoring

Step 1: Floor Layout, Chalk Lines, and Grid Mapping

Begin by establishing a baseline parallel to the longest unobstructed wall or established warehouse grid line using a high-precision laser level and chalk. Measure out the precise dimensions of the rack rows, accounting for standard aisle widths, fire sprinkler clearance zones, and forklift turning radiuses. Mark every upright frame location on the floor with high-visibility spray paint, ensuring that row spacing matches the length of the cross beams exactly plus the width of the upright columns.

Warning: Never anchor pallet rack frames directly over expansion joints, saw cuts, or structural cracks in the concrete slab, as this severely compromises the holding capacity of the wedge anchors and can lead to structural failure under load.

Step 2: Upright Frame Assembly and Staging

If your frames arrived knocked-down (KD), assemble the front and rear columns on a flat surface using horizontal and diagonal bracing members secured with manufacturer-specified bolts, nuts, and lock washers. Use a tape measure diagonally from corner to corner of the assembled frame to check for squareness, adjusting the lacing until both diagonal measurements match precisely. Staging the assembled frames upright along the chalk lines requires at least two technicians to prevent structural twisting or impact damage to the column lips.

Step 3: Beam Placement and Initial Leveling

Stand the first two frames of a row upright and temporarily support them by snapping the bottom load beams into place at the lowest beam level. Insert safety locking pins or drop-in clips immediately into every beam connector to prevent accidental dislodgement from forklift impacts. Move to the opposite end of the bay, insert another set of beams, and use a magnetic spirit level or laser level to check that the entire starter bay is perfectly square and plumb in both directions.

Step 4: Shimming and Floor Anchoring

With the starter bay plumb, inspect the baseplates of the upright columns for any gaps between the steel plate and the concrete floor. Insert structural steel shims underneath the baseplates to eliminate gaps, ensuring that the full weight of the column rests squarely on the shim pack rather than hanging unsupported on the anchor bolt. Drill through the pre-drilled holes in the baseplates directly into the concrete using a rotary hammer drill with a carbide-tipped masonry bit matching the anchor manufacturer specifications. Clear concrete dust from the drilled holes using compressed air or a vacuum, insert the heavy-duty wedge anchors through the baseplates, and torque them to the exact ft-lbs specified by the anchor manufacturer using a calibrated torque wrench.

Step 5: Row Spacers, Wall Ties, and Column Protectors

Install row spacers between back-to-back rack rows at specified vertical intervals to maintain uniform aisle spacing and transfer seismic loads evenly across the system. If installing single rows against perimeter walls, attach structural wall ties to secure the top of the frames to the building structure if required by local seismic engineering codes. Finish the installation by bolting heavy-duty steel column protectors and end-of-row guard rails to the floor around high-impact exposure zones to defend against forklift collisions.

Pallet Racking Technical Specifications and Component Matrix

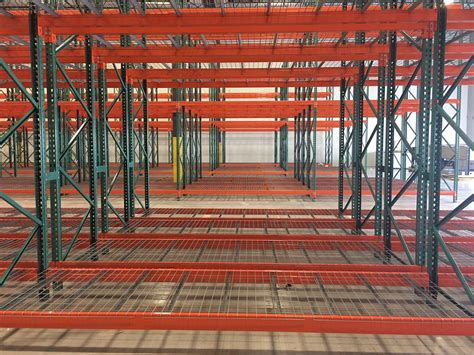

Common Installation Errors and Field Fixes

• Root Cause: Upright frames are out of plumb due to an uneven or sloping concrete warehouse floor.


  • Actionable Fix: Loosen the anchor bolts slightly, insert heavy-gauge structural steel shims under the low side of the baseplate until the vertical column bubble level reads dead center, re-torque anchors, and re-check diagonal bay measurements.
• Root Cause: Beam connectors fail to seat fully into the upright punch holes or safety pins are missing.


  • Actionable Fix: Strike the top of the beam connector near the upright with a rubber mallet to seat the clips securely, and immediately install mandatory safety lock pins or J-bolts before loading inventory.
• Root Cause: Anchor bolts spin in the hole without tightening during torque application.


  • Actionable Fix: The drill hole is likely oversized or has hit aggregate stone that deflected the bit. Extract the anchor, fill the hole with high-strength structural non-shrink epoxy grout, allow it to cure, and re-drill a new hole at least three inches away from the compromised spot.

Frequently Asked Questions

How deep should pallet rack anchor bolts be embedded into the concrete?

Industrial pallet rack anchors generally require a minimum embedment depth of 3 to 3.25 inches into sound, uncracked concrete to achieve their rated pull-out and shear capacities. Installers must avoid drilling through the entire slab thickness or contacting sub-grade moisture barriers.

Can I install pallet racking myself or do I need certified installers?

While facility maintenance teams can assemble simple selective rack systems, complex configurations, high-bay installations, and systems in high seismic zones legally require certified industrial installation contractors to ensure compliance with local building codes and RMI standards.

What is the maximum allowable out-of-plumb tolerance for upright frames?

According to RMI specifications, an upright frame is permitted a maximum plumb deviation of 1/16 of an inch per foot of height from the vertical axis. Any column exceeding this threshold under load requires immediate unloading, shimming, and realignment.

Do I need a building permit to install pallet racking in my warehouse?

Yes, most local municipalities require a commercial building permit, plan review, and structural engineering sign-off for pallet rack installations exceeding 5 to 8 feet in height to verify seismic safety, fire sprinkler clearance, and egress compliance.
