How To Install A Humidifier On A Furnace: A Comprehensive DIY Technical Guide
Installing a whole-house humidifier directly onto your forced-air furnace requires precise coordination between the HVAC ductwork, the plumbing water supply, and the furnace control board. By injecting moisture into the return or supply plenum, you maintain optimal indoor relative humidity levels between 30% and 50%, significantly reducing respiratory irritants and structural damage to wood flooring and furniture.
Pre-Installation Requirements and Tooling Strategy
Before beginning the installation, ensure your HVAC system is powered down at the service disconnect switch to prevent electrical shorts or blower motor engagement during the procedure. Most furnace-mounted humidifiers are either bypass, fan-powered, or steam models; this guide focuses on the standard bypass flow-through humidifier, which is the most common residential configuration.
- Essential Toolset: Power drill with a 6-inch hole saw, sheet metal snips (left, right, and straight cuts), nut driver set (1/4-inch and 5/16-inch bits), adjustable wrench, pipe cutter for copper tubing, and a level.
- Materials Required: Humidifier kit (including solenoid valve, humidistat, and bypass ducting), 1/4-inch copper or plastic supply line, 5/8-inch drain tubing, wire connectors, and foil HVAC tape (UL 181A-P rated).
- Prerequisite Knowledge: Basic familiarity with low-voltage (24V) HVAC wiring, the ability to cut through 26-gauge galvanized sheet metal, and knowledge of how to shut off main water supplies.
- Benchmarks: Estimated time for a professional-grade installation is 3 to 5 hours. Always verify that your furnace control board supports 24V accessories; if not, an external 24V transformer is mandatory.
Procedural Workflow for Humidifier Integration
Step 1: Mapping the Plenum and Template Placement
Identify the optimal location on your furnace ductwork. For a bypass humidifier, the mounting template should be applied to the warm air supply plenum (the vertical duct rising from the furnace) or the return air duct, depending on the manufacturer’s specifications. Ensure the location allows for at least 12 inches of clearance around the unit for future maintenance, such as pad replacement. Secure the mounting template with masking tape, double-checking for obstructions inside the duct using a flashlight before cutting.
Step 2: Cutting the Ductwork and Mounting the Chassis
Using your hole saw and sheet metal snips, carefully cut the opening defined by the template. Take care to avoid structural screws or internal dampers. Once the hole is cut, fold back any sharp edges with pliers to prevent injury and airflow turbulence. Insert the humidifier chassis into the opening and secure it with self-tapping sheet metal screws. Use a spirit level to ensure the unit is perfectly vertical; an unlevel unit will cause uneven water distribution across the humidifier pad, leading to mineral buildup and inefficient operation.

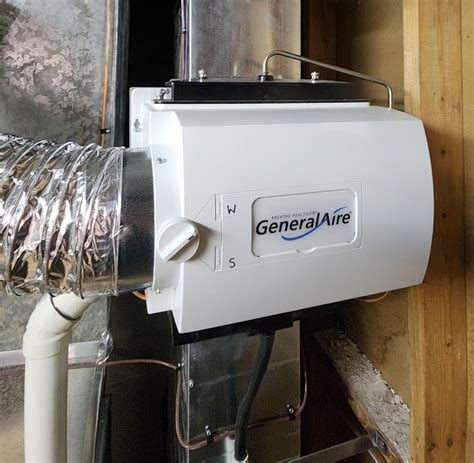

Step 3: Installing the Bypass Ducting
The bypass duct carries air from the return plenum to the humidifier. Connect the 6-inch starting collar to the return plenum, ensuring a tight seal with screws and high-quality foil HVAC tape. Attach the flexible insulated ductwork from the collar to the intake port of the humidifier.
Warning: Never use duct tape for this step; the heat of the furnace will cause the adhesive to dry and peel over time. Only use UL-rated foil tape or specialized mastic sealant to ensure airtight integrity.
Step 4: Plumbing the Water Supply and Drain
Mount the solenoid valve, typically included with the humidifier, to a convenient location near the water source. Use a saddle valve or a T-fitting to tap into your cold-water supply line. Run 1/4-inch tubing from the valve to the humidifier’s distribution tray. Finally, install the 5/8-inch drain line at the bottom of the humidifier chassis. Ensure the drain line has a continuous downward slope toward a floor drain; if the line runs uphill or level, water will back up into the furnace cabinet, causing severe rust and potential electrical failure.
Step 5: Electrical Wiring and Control Setup
Connect the humidifier’s solenoid valve to the humidistat, which should be mounted on the return air duct or wall. Follow the wiring diagram included with your specific unit to tap into the furnace’s 24V accessory terminals (usually labeled HUM). If your furnace lacks these terminals, wire the solenoid to an external 24V transformer plugged into a standard wall outlet. Double-check all wire nuts and connections to ensure they are secure and away from hot surfaces or moving parts like the blower wheel.
Honeywell He360a Furnace Humidifier Wiring Diagram - Wiring Diagram
Technical Specifications and Operational Parameters
| Feature | Standard Requirement | Performance Impact |
|---|---|---|
| Relative Humidity | 30% - 50% | Prevents static shock and wood shrinkage. |
| Duct Pressure | > 0.1" W.C. | Required for proper bypass airflow. |
| Voltage Input | 24V AC | Ensures compatibility with HVAC control boards. |
| Water Feed | 1/4" Copper Line | Provides consistent flow to the water panel. |
| Drain Slope | 1/4" per foot | Prevents stagnant water and bacterial growth. |
Troubleshooting Common Installation Failures
- Leaking at the Solenoid: Usually caused by a loose compression fitting or debris in the valve. Verify the arrow on the valve body indicates the correct water flow direction. Clean the strainer screen if the flow is restricted.
- Inadequate Humidity Levels: Often a result of the bypass damper being left in the summer (closed) position. Ensure the damper is set to "Winter" or "Open" and check that the humidistat is calibrated correctly against a secondary hygrometer.
- Water Pooling in the Furnace: The drain line is likely obstructed or lacks sufficient pitch. Flush the drain tubing with a mild vinegar solution and ensure it is not kinked or sagging at any point along its path to the drain.
- Humidifier Not Engaging: Check the 24V circuit with a multimeter. If there is no power at the solenoid, test the humidistat switch and the furnace blower sail switch, which prevents the humidifier from operating unless the furnace fan is active.
Frequently Asked Questions
Can I install a humidifier if I have an electric furnace?
Yes, installation on an electric furnace is similar to a gas furnace, but you must ensure your blower motor provides enough airflow to support the humidifier's bypass requirements. Always check for internal heating elements before cutting the ductwork to avoid permanent damage to the heating core.
Do I need a professional to calibrate the humidistat?
While manufacturers provide setting guidelines based on outdoor temperatures, you can calibrate it yourself. Start at 35% humidity and adjust by 5% increments until you reach your comfort level while monitoring windows for condensation; if windows fog up, lower the setting to prevent mold growth.
How often should the humidifier pad be replaced?
The humidifier pad, or evaporator media, should be replaced at least once every heating season, typically in the late autumn. If your home uses hard water, you may need to replace it twice per season to prevent mineral scale from blocking airflow and reducing unit efficiency.
Is a bypass humidifier compatible with heat pumps?
Yes, but they function differently because heat pump air is generally cooler than gas furnace air. You may need a steam-powered humidifier instead of a bypass unit to achieve the desired moisture levels since steam units generate their own heat and do not rely solely on the temperature of the HVAC air stream.
Contact Your Local HVAC Professional
If you encounter complex wiring configurations or feel uncomfortable breaching your ductwork, contact a licensed HVAC technician to ensure your installation meets local building codes and manufacturer warranty standards. Proper expert consultation guarantees the long-term integrity of your furnace investment and home air quality.
