How To Install A Bench Vise For Maximum Stability And Longevity

Successfully installing a bench vise requires precise alignment where the stationary rear jaw is positioned slightly proud of the workbench edge to allow for unobstructed vertical clamping. Utilizing high-tensile Grade 5 through-bolts combined with oversized fender washers on the underside ensures the mounting system can withstand the hundreds of foot-pounds of torque generated during heavy-duty filing, sawing, or bending operations.

Engineering Your Workspace: Pre-Installation Bench Assessment and Tool Requirements

Before drilling into your primary work surface, you must evaluate the structural integrity of the mounting location. A bench vise is not merely a clamp; it is an extension of the workbench that facilitates the transfer of massive kinetic energy. If the bench is too light, the entire assembly will "walk" across the floor during use. If the top is too thin, the bolts will eventually tear through the wood or composite fibers under lateral load.

A professional-grade installation assumes the workbench is either bolted to the floor or possesses enough mass (typically 150 lbs or more) to remain stationary. The ideal mounting location is directly over a structural leg or a heavy-duty support stringer. This transfers the downward force of hammering directly into the floor rather than flexing the middle of the benchtop.

Essential Equipment and Hardware Checklist

• Primary Mounting Hardware: Three to four Grade 5 or Grade 8 hex-head bolts (1/2 inch diameter is standard for 4-6 inch vises), matching nylon-insert lock nuts, and oversized fender washers or a dedicated steel backing plate.
• Precision Layout Tools: Center punch, fine-point marker or carpenter’s pencil, and a combination square for edge alignment.
• Drilling Apparatus: High-torque corded or 18V cordless drill, a high-speed steel (HSS) drill bit sized 1/16th of an inch larger than your bolt diameter, and a scrap block of wood to prevent "blowout" on the underside of the bench.
• Wrenches and Torquing Tools: Two adjustable wrenches or a socket set with a breaker bar to provide sufficient leverage for final tightening.
• Reinforcement Materials: A piece of 3/4-inch thick plywood or 1/4-inch steel plate (optional, for reinforcing thinner benchtops).
• Estimated Duration: 45 to 90 minutes.
• Budget Benchmark: $15–$40 for premium mounting hardware (excluding the cost of the vise).

The Precision Installation Workflow: A Five-Step Integration Guide

The following procedure focuses on the "flush-mount" technique, which is the industry standard for mechanics and general-purpose metalworking. This method ensures that long workpieces can be clamped vertically without hitting the front edge of the workbench.

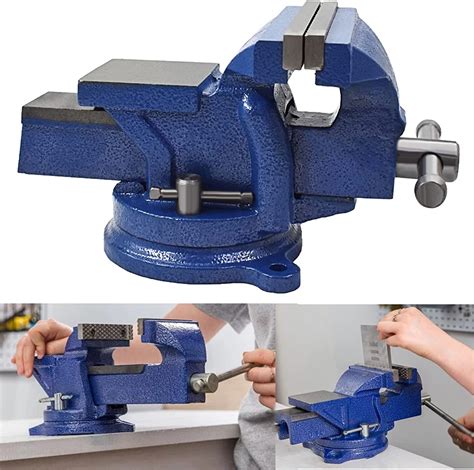

Step 1: Geometric Alignment and Positioning

The most critical error in vise installation is mounting the base too far back on the bench. Open the vise jaws slightly and place the unit on the corner of your workbench. Observe the position of the stationary (rear) jaw. This jaw must be perfectly flush with, or slightly protruding past, the edge of the workbench.

If the stationary jaw is recessed behind the bench edge, you will be unable to clamp long objects vertically, such as pipes or long pieces of angle iron, because the workbench itself will block the path of the material. Use your combination square to ensure the rear jaw's face is parallel to the bench edge. If you are installing a swivel-base vise, ensure the swivel lock handles have full range of motion and do not strike the bench surface or other mounted tools when rotated.

Pro-Tip: If your workbench has a significant overhang (more than 3 inches), you may need to add a "blocking" piece of 4x4 timber underneath the overhang to bridge the gap between the benchtop and the structural frame, preventing the top from cracking under heavy clamping pressure.

Step 2: Transferring the Bolt Pattern

Once the vise is positioned, use it as its own template. Most professional vises feature three or four mounting holes integrated into the cast-iron base. Using a center punch, mark the exact center of each mounting hole. Do not simply trace the circles with a pencil; a center punch creates a physical indentation that prevents the drill bit from "walking" during the initial penetration of the wood or metal.

If the vise is too heavy to hold steady while marking, create a cardboard template of the base and holes. However, using the actual vise is preferred to account for any casting irregularities in the iron base.

Step 3: Executing the Clearance Holes

Remove the vise from the bench to clear the workspace. Select a drill bit that is 1/16 inch larger than your mounting bolts (e.g., use a 9/16-inch bit for a 1/2-inch bolt). This extra clearance allows for minor adjustments during the final alignment and prevents the bolts from binding if the wood expands or contracts.

Place a scrap block of wood firmly against the underside of the bench where the drill bit will exit. This "sacrificial" block prevents the drill from splintering the bottom of your benchtop, a phenomenon known as blowout, which can compromise the seating of your washers. Drill perfectly vertical holes; if your holes are canted, the bolt heads will not sit flush against the vise base, leading to uneven stress distribution and potential base fracture.

Warning: Check the underside of the bench for hidden electrical conduit, drawer slides, or structural metal supports before drilling. Hitting a steel frame with a wood bit can cause immediate tool damage or injury.

Step 4: Reinforcement and Hardware Installation

For any wooden workbench under 2 inches thick, a reinforcement plate is mandatory. A 6-inch by 6-inch piece of 3/4-inch plywood or a 1/4-inch steel plate should be placed on the underside. This spreads the clamping force across a wider surface area, preventing the bolts from pulling through the bench under extreme load.

Drop your Grade 5 bolts through the vise base and into the holes. From the underside, install the following in order: the reinforcement plate (if used), the oversized fender washers, and finally the nylon-insert lock nuts. Hand-tighten all nuts first to ensure the vise remains in its intended alignment.

Step 5: Final Torquing and Calibration

Using a socket and a wrench, tighten the bolts in a "star pattern" or "cross pattern" to ensure even pressure. You want the bolts to be tight enough to compress the wood slightly but not so tight that you crack the cast-iron base of the vise. Cast iron is brittle and has low tensile strength; over-torquing can cause the mounting "ears" of the vise base to snap off.

Once secured, rotate the vise (if it has a swivel base) to check for smooth operation. Open and close the jaws fully to ensure the lead screw is not binding. If the vise feels stiff, it may be due to the bench surface being slightly uneven, causing the base to flex. In this case, use thin metal shims between the base and the bench to level the unit before a final tightening.

Comparative Hardware Standards and Mounting Torque Specifications

Choosing the correct hardware is the difference between a tool that lasts a lifetime and a dangerous projectile. Never use lag screws (wood screws) for a primary bench vise, as they will eventually pull out of the grain under vibration.

Post-Installation Troubleshooting and Load-Bearing Failures

Even with a careful installation, the extreme forces applied to a vise can lead to structural issues over time. Monitoring these scenarios will prevent equipment damage.

• Scenario: The Vise "Shudders" During Sawing




  • Root Cause: This is usually caused by mounting the vise too far from a structural leg, causing the workbench top to act like a drumhead and vibrate.
  • Actionable Fix: Install a "leg-to-top" brace directly under the vise or add a 4x4 vertical support post between the floor and the benchtop directly under the mounting bolts.

• Scenario: The Swivel Base Slips Under Load




  • Root Cause: Oil or grease has contaminated the swivel serrations, or the lockdown bolts are bottoming out before they apply full pressure.
  • Actionable Fix: Disassemble the swivel base, degrease the contact surfaces with brake cleaner, and ensure the locking T-handles are not cross-threaded.

• Scenario: Bolts Constantly Loosen




  • Root Cause: Rhythmic vibration from hammering or filing is backing off standard nuts, especially on wooden benches that compress over time.
  • Actionable Fix: Replace standard nuts with nylon-insert lock nuts and add a secondary "jam nut" if the problem persists. Check and re-torque the bolts 30 days after the initial installation to account for initial wood compression.

Frequently Asked Questions

Should I mount my vise on the corner or the center of the bench?

Mounting on the corner is superior because it allows you to clamp long workpieces that extend past the side of the bench. Corner mounting also provides better access for three-sided woodworking or metal fabrication.

Can I install a bench vise on a metal-topped workbench?

Yes, but you must ensure the steel is thick enough (at least 3/16 inch) to prevent oil-canning or warping. If the metal is thin, weld a 1/2-inch thick steel doubler plate to the underside of the mounting area before drilling.

What is the best height for a bench vise?

The top of the vise jaws should generally be at the height of your elbow when your arm is bent. If the vise is too low, you will suffer from back strain; if it is too high, you cannot put your body weight behind a file or saw.

Do I need to lubricate a new vise after installation?

Yes. Factory grease is often a "storage" grease designed to prevent rust during shipping. Clean the lead screw and the guideways, then apply a high-quality lithium grease or dry graphite lubricant to ensure smooth travel.

Optimize Your Workshop Performance

A properly mounted bench vise is the cornerstone of mechanical precision and workshop safety. By following these engineering standards, you ensure that your equipment remains a stable, reliable partner for every project you undertake.
