How To Install A Toilet Wax Ring: A Professional Plumbing Guide

Installing a toilet wax ring requires precise alignment between the bowl horn and the closet flange to prevent raw sewage leaks and foul sewer gas emissions. By removing old wax residue entirely, verifying the flange height relative to the finished floor, and evenly torquing the floor bolts, you establish a permanent, water-tight seal that protects your subfloor from catastrophic rot.

Pre-Operation & Equipment Checklist

Replacing a toilet wax ring is a fundamental plumbing maintenance task that safeguards your bathroom's structural integrity. Before unbolting your toilet, assemble the necessary tools and establish a clean, organized work area to minimize downtime and prevent porcelain damage.

• Essential Gear, Tools, and Materials:

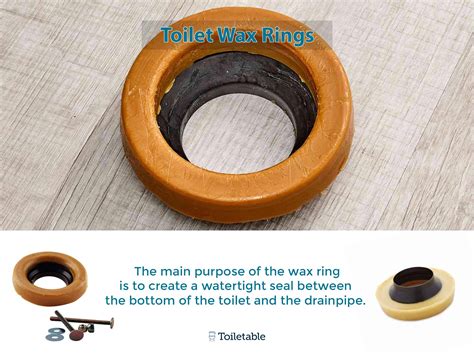

  • Standard heavy-duty wax ring (with or without a plastic horn depending on your flange configuration; choose a reinforced wax ring if your closet flange sits below the finished floor level).
  • Adjustable wrench and deep-well socket set (typically 1/2-inch or 7/16-inch for closet bolt nuts).
  • Putty knife or flexible scraper for clearing old wax.
  • Sponge and bucket for bailing out residual water.
  • New brass closet bolts and washers (replace corroded old hardware).
  • Level, tape measure, utility knife, and disposable rags.
  • Sanitary silicone caulk (optional, for sealing the base to the floor after installation).
• Mandatory Prerequisite Knowledge and Standards:


  • Comply with local plumbing code guidelines regarding fixture set distances and structural floor stability.
  • Ensure the toilet bowl is completely free of water and debris before lifting to prevent spills.
• Estimated Budget and Duration Benchmarks:


  • Total time investment: 45 to 90 minutes for a standard replacement.
  • Financial cost: Between 10 and 25 dollars for materials unless replacing damaged flange components or a cracked bowl.

Step-by-Step Toilet Wax Ring Installation Workflow

Step 1: Supply Shut-Off and Bowl Drainage

1. Turn the toilet supply valve clockwise until completely closed to halt water flow into the tank.
2. Flush the toilet to drain as much water as possible from both the tank and the bowl.
3. Use a sponge and bucket to remove any remaining standing water inside the bowl trap. Disconnect the supply line from the bottom of the toilet tank, keeping a small towel underneath to catch residual drops.

Warning: Never skip draining the bowl completely; lifting a half-full toilet will cause contaminated greywater to spill across your bathroom floor, creating a severe slip hazard and messy cleanup.

Step 2: Unbolting and Removing the Toilet

1. Pry off the plastic bolt caps on either side of the toilet base using a flathead screwdriver or putty knife.
2. Loosen and remove the nuts securing the closet bolts to the floor flanges. If the bolts spin freely in their slots, grip the shaft with locking pliers while turning the nut.
3. Gently rock the toilet bowl side-to-side to break the seal of the old wax ring and silicone caulking.
4. Lift the toilet straight up off the floor flange, ensuring you do not twist it, and set it down carefully on a padded surface of folded cardboard or old towels to prevent the porcelain foot from cracking.

Step 3: Flange Cleaning and Surface Preparation

1. Stuff a clean rag into the open drain hole to block noxious sewer gases from escaping into your home while you work.
2. Scrape away every trace of the old wax ring from the underside of the toilet horn and the top of the closet flange using your putty knife.
3. Wipe the metal or plastic closet flange with a damp rag until the surface is completely clean and dry. Inspect the flange slots for cracks or rust, replacing damaged components before proceeding.

Pro-Tip: If your closet flange sits flush with or below the finished subfloor, use two wax rings stacked together, or a reinforced horn-style ring, to guarantee adequate compression height against the bottom of the bowl.

Step 4: Installing Hardware and Setting the Wax Ring

1. Remove the rag from the drain pipe. Insert new brass closet bolts into the floor flange channels, sliding them until they align parallel to the back wall and point straight up.
2. Invert the toilet bowl and set it gently on its side or back on your protective padding.
3. Press the new wax ring firmly onto the porcelain horn on the underside of the bowl, centering it uniformly so the adhesive wax grips the ceramic lip.

Step 5: Positioning and Securing the Bowl

1. Lift the toilet with a helper if possible, aligning the closet bolts with the mounting holes in the toilet base ceramic foot.
2. Lower the toilet straight down over the bolts in one smooth, vertical motion. Do not rock or tilt the bowl once the wax makes contact with the flange, as this distorts the seal.
3. Stand over the bowl and press your weight downward evenly, shifting your body weight slightly to compress the wax ring until the bottom of the porcelain base makes direct contact with the finished floor.

Step 6: Final Tightening and Trim Assembly

1. Place the metal washer and nut onto each closet bolt. Hand-tighten both nuts alternately, switching back and forth from left to right to maintain level pressure.
2. Use an adjustable wrench to snug the nuts, taking care not to over-tighten; excessive torque will crack the porcelain toilet base instantly.
3. Snap the plastic bolt caps into place over the washers. Reconnect the water supply line, open the shut-off valve, and test-flush the toilet multiple times while inspecting the base for leaks.

Technical Specifications & Material Thresholds

Common Site Failures & Field Fixes

• Root Cause: Water seeping from underneath the toilet base immediately after installation.


  • Actionable Fix: The wax ring failed to compress uniformly or shifted off-center during placement. Lift the toilet, clean away all compromised wax, inspect the flange height, and install a fresh wax ring following precise vertical alignment.
• Root Cause: Foul sewer gas odors permeating the bathroom without visible water leaks.


  • Actionable Fix: The wax seal has a minor gap, or the toilet was not pressed down far enough to form an airtight gasket. Re-set the bowl with an extra-thick wax ring and apply an antimicrobial silicone bead around the perimeter base after a successful pressure test.
• Root Cause: The toilet wobbles or rocks back and forth when seated upon.


  • Actionable Fix: The floor is uneven or the shims were omitted. Insert plastic toilet shims around the base perimeter to stabilize the ceramic foot before tightening the floor nuts, preventing stress fractures in the wax seal.

Frequently Asked Questions

Can I reuse an old wax ring if I just removed the toilet for flooring work?

No, you must never reuse an old wax ring. Once compressed, wax loses its malleability and structural integrity, making it impossible to form a reliable watertight and airtight seal a second time. Always install a brand-new wax ring whenever a toilet is lifted.

Do I need a wax ring with a plastic horn or a standard plain wax ring?

Use a standard wax ring if your closet flange sits slightly above or flush with the finished floor. Use a wax ring with a plastic horn if your flange sits below the finished floor level, as the plastic funnel directs waste safely past the gap into the drain pipe.

How tight should I torque the floor bolts on a toilet?

You should hand-tighten the nuts and then use a wrench to give them a quarter-turn until snug. Never crank down hard on porcelain fixtures, as excessive tightening places localized stress on the ceramic base and will cause the bowl to crack.

What should I do if my closet flange is broken or sits too low?

If the flange is broken, install a heavy-duty stainless steel repair ring over top of the existing flange and anchor it securely to the subfloor. If the flange sits too low, use stackable wax rings or a specialized flange extender kit to bridge the height gap safely.

Should I caulk around the base of the toilet after installation?

Yes, run a bead of sanitary silicone caulk around the perimeter where the toilet base meets the floor for aesthetic reasons and stability. Leave a small two-inch gap at the back lowest point so that if a leak ever develops, water escapes visibly onto the floor rather than hiding underneath and rotting your subfloor.

Secure Your Bathroom Infrastructure Today

Properly installing a toilet wax ring ensures long-term sanitation and protects your home's structural framing from hidden water damage. Take your time during the alignment phase, utilize quality brass hardware, and verify a tight, stable seal to guarantee a professional-grade plumbing repair.
