Master Techniques For Extracting A Stripped Allen Bolt: Professional Mechanical Recovery Guide

Successfully removing a stripped internal-wrenching socket head (Allen) bolt requires a strategic escalation of force and specialized tooling to overcome lost engagement and fastener seizure. By utilizing friction-enhancing compounds, interference-fit Torx drivers, or reverse-spiral extractors, you can restore mechanical leverage even when the original hexagonal geometry has completely failed.

Precision Tooling and Workspace Preparation

Before attempting extraction, identifying the root cause of the failure—whether it is galvanic corrosion, over-torquing, or tool cam-out—is essential for selecting the correct recovery method. Fasteners manufactured under ASME B18.3 (inch) or ISO 2936 (metric) standards have specific hardness ratings, typically ranging from Property Class 8.8 to 12.9, which dictates the type of cutting or drilling tools required for destructive removal.

Essential Recovery Inventory and Benchmarks

• Standard Tooling: High-torque Allen keys, hammer, and a locking-jaw plier (Vise-Grips).
• Specialized Extraction Gear: Hardened steel Torx bits (T-series), left-hand drill bits, and spiral-flute screw extractors.
• Chemical and Thermal Agents: Professional-grade penetrating oil (e.g., Kroil or PB Blaster), valve grinding compound, and a propane or butane torch.
• Protective Equipment: ANSI Z87.1 rated safety glasses and heat-resistant gloves.
• Estimated Duration: 15 minutes to 2 hours depending on the degree of seizure and accessibility.
• Budgetary Scope: $10 (basic consumables) to $150 (professional extractor sets and induction heaters).

Systematic Escalation of Fastener Extraction Methods

The primary goal is to maximize surface contact within the damaged socket. As the internal hex rounds out, the surface area for torque transfer decreases, leading to further deformation. Follow this hierarchical approach, starting with the least destructive method.

Step 1: Enhancing Friction and Mechanical Grip

Before moving to mechanical alteration, attempt to bridge the gap between the tool and the rounded fastener walls. A common cause of stripping is a marginal gap between the tool and the bolt, often exacerbated by dirt or debris.

1. Thoroughly clean the socket head using a dental pick or compressed air to ensure the tool can seat to the full depth of the socket.
2. Apply a small amount of valve grinding compound or a dedicated friction fluid into the socket; the suspended grit increases the coefficient of friction.
3. If a minor gap remains, place a wide rubber band or a piece of thin latex over the head of the Allen key and force it into the socket. This creates a temporary gasket that fills the voids caused by the rounding of the hex corners.
4. Apply significant downward pressure (axial force) while slowly turning the wrench counter-clockwise to prevent the tool from lifting and further damaging the bolt.

Pro-Tip: Always use a "T-handle" wrench for this step if possible. T-handles provide balanced torque, whereas L-shaped Allen keys create asymmetrical side-loading that encourages the tool to tilt and cam out of the socket.

Step 2: The Torx Bit Interference Fit

When the internal hex is too far gone for friction aids, the Torx (star) bit method is the most effective "shop secret" for mid-level stripping. Torx bits have six lobes that can bite into the rounded vertices of a hex socket.

1. Select a Torx bit that is slightly larger than the Allen socket. For example, a T-40 bit often fits perfectly into a stripped 6mm Allen bolt.
2. Use a ball-peen hammer to drive the Torx bit into the stripped socket. The hardened steel of the Torx bit will cut new grooves into the softer bolt material, creating a high-strength interference fit.
3. Ensure the bit is driven deep enough to engage at least 70% of the socket depth.
4. Attach a socket wrench to the Torx bit and apply steady, slow pressure. The multi-point engagement of the star pattern is far less likely to slip than the original hex.

Step 3: Chemical Penetration and Thermal Shock

If the bolt is stuck due to corrosion (oxidation) or thread-locking compounds, mechanical force alone may snap the tool or the bolt head. You must break the molecular bond between the threads.

1. Saturate the bolt circumference with a high-performance penetrating oil and allow it to dwell for at least 30 minutes.
2. Apply heat directly to the fastener or the surrounding housing using a torch. If the bolt is threaded into an aluminum housing, heating the housing will cause it to expand faster than the steel bolt, loosening the fit.
3. For bolts secured with permanent thread-locker (Red Loctite), you must reach a temperature of approximately 450°F (232°C) to liquefy the adhesive.
4. Once heated, immediately apply the extraction tool. The combination of thermal expansion and lubrication often releases the initial "stiction" that prevents removal.

Warning: Be extremely cautious when using torches near fuel lines, plastic components, or painted surfaces. Always have a fire extinguisher nearby and ensure all flammable cleaners have evaporated before applying an open flame.

Step 4: External Gripping and Structural Modification

If the bolt head is accessible and not recessed, you can bypass the internal socket entirely and use the outer diameter of the head for leverage.

1. Use a pair of high-quality locking pliers (Vise-Grips). Tighten them onto the outer circumference of the bolt head until the jaws bite into the metal.
2. If the head is smooth, use a metal file or a Dremel tool with a cutoff wheel to create two flat parallel sides. This provides a "wrench flat" that allows a standard adjustable wrench to gain a secure hold.
3. Alternatively, use the Dremel to cut a single deep slot across the diameter of the head. This allows for the use of a large flat-head screwdriver or, more effectively, a manual impact driver.

Step 5: Professional Screw Extractors and Reverse Drilling

When the head is flush or recessed, or if previous steps have failed, you must utilize specialized extraction bits. This is a "point of no return" method as it involves drilling into the fastener.

1. Center-punch the exact middle of the bolt head to prevent the drill bit from wandering.
2. Use a left-hand drill bit (reverse twist). Select a bit size that is roughly half the diameter of the bolt shank.
3. Set your drill to "Reverse." As you drill into the bolt, the heat and vibrations combined with the counter-clockwise torque of the drill bit will often catch and back the bolt out naturally.

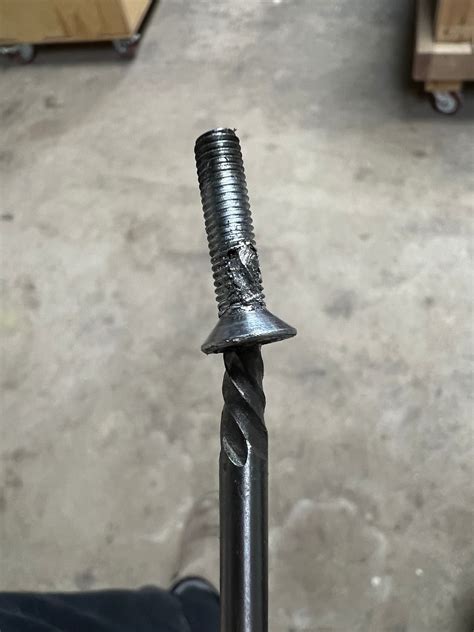

4. If the bolt remains seated, insert a spiral-flute or square-flute extractor (often called an "Easy-Out") into the pilot hole. Tap it in with a hammer and use a tap handle to turn it counter-clockwise. The deeper you turn the extractor, the harder it bites into the inner walls of the bolt.

Technical Comparison of Extraction Methods

The following table outlines the mechanical trade-offs between common extraction strategies, based on a standard M8 or 5/16" socket head cap screw.

Mechanical Failures and Remedial Actions

Fastener recovery is rarely a linear process. Encountering complications is common, particularly when dealing with hardened alloy steels or extreme galvanic corrosion.

• Scenario: The Bolt Head Snaps Off Completely




  • Root Cause: The torque applied exceeded the shear strength of the bolt shank, or the threads were "galled" (cold-welded) to the housing.
  • Actionable Fix: Grind the remaining stub flat. Re-center punch and use the left-hand drill bit method. If the threads are destroyed, you must drill the hole out to a larger size and install a thread repair insert like a Heli-Coil or Time-Sert.

• Scenario: The Screw Extractor Breaks Inside the Bolt




  • Root Cause: Extractors are made of extremely hard, brittle tool steel. If they are twisted with uneven force or in a hole that is too small, they will snap.
  • Actionable Fix: Broken extractors cannot be drilled with standard High-Speed Steel (HSS) bits. You must use a solid carbide burr or a diamond-tipped bit at high RPMs to slowly grind away the extractor material, or use an EDM (Electrical Discharge Machining) service for high-value parts.

• Scenario: Torx Bit Spins and Further Rounds the Socket




  • Root Cause: The Torx bit selected was too small, or the metal of the bolt is harder than the bit.
  • Actionable Fix: Move up one size in Torx bits. If you were using a T-40, attempt to hammer in a T-45 or use a multi-spline extractor. Ensure you are using "Impact Rated" bits which are designed for higher shock loads.

Frequently Asked Questions

Why do Allen bolts strip more easily than Hex bolts?

Allen bolts rely on internal surface area, which is significantly smaller than the external surface area of a standard hex bolt. Furthermore, "cam-out" occurs more easily in internal sockets when the tool is not perfectly perpendicular, leading to localized deformation of the six internal corners.

Can WD-40 be used as a penetrating oil for stripped bolts?

While WD-40 Multi-Use Product provides some lubrication, it is not a dedicated penetrant. For seized or stripped bolts, use a specialized product like Liquid Wrench or PB Blaster, which has a lower surface tension and can migrate into the thread gaps through capillary action more effectively.

Is it better to use a power drill or hand tools for extraction?

Hand tools are generally preferred for the initial "break" of a stuck bolt because they provide better tactile feedback. Using a power drill or impact wrench on a stripped bolt often results in the tool spinning too fast, generating heat that softens the metal and completes the rounding-out process before you can react.

What is the best way to prevent Allen bolts from stripping in the future?

Apply an anti-seize lubricant to the threads during installation, especially when joining dissimilar metals like steel and aluminum. Additionally, always ensure you are using the correct unit of measure; using a 5mm hex key in a 3/16" (4.76mm) socket is a primary cause of rounded fasteners.
