How To Find Your Mic Latency: Exact Measuring Methods For Ultra-Low Audio Delay

Finding your microphone latency requires calculating the total delay introduced by your analog-to-digital converter, host audio driver buffer, and software monitoring path. You can measure this delay precisely using built-in Digital Audio Workstation (DAW) latency readouts, hardware loopback transient recording tests, or real-time diagnostic utilities. Target an acceptable round-trip mic latency of under 10 milliseconds to eliminate audible vocal echo and phasing during live monitoring.

Audio Latency Diagnostics Setup Checklist

Before measuring your microphone delay, you must establish a baseline testing environment. Audio latency—the time elapsed between speaking into your microphone diaphragm and hearing the processed signal in your headphones—is governed by sample rates, driver buffer sizes, digital-to-analog conversion speeds, and operating system audio pipelines.

Essential Diagnostics Equipment & Tools

• Microphone & Transducer Interface: An XLR microphone connected via an audio interface with native drivers (ASIO for Windows, CoreAudio for macOS) or a direct USB microphone with a dedicated control panel.
• Monitoring Hardware: Studio-grade wired headphones connected directly to the audio interface or microphone zero-latency headphone output. Wireless Bluetooth headphones must be completely disconnected, as they add 100 to 300 milliseconds of hardware latency.
• Testing Software: A Digital Audio Workstation (DAW) such as Reaper, Ableton Live, Pro Tools, or Studio One, alongside broadcast software like OBS Studio.
• Physical Loopback Infrastructure: A standard 1/4-inch TRS or XLR patch cable to connect your interface input directly to its output for hardware-level transient testing.

Mandatory System Standards & Prerequisite Parameters

• Base Sample Rate: 48.0 kHz (48,000 samples per second) standard for broadcast and video production, or 44.1 kHz for standard music production.
• Driver Architecture: Exclusive ASIO drivers on Windows (avoid MME, DirectSound, or generic Windows WASAPI Shared drivers) and native low-latency CoreAudio engines on macOS.
• Buffer Baseline: Set initial buffer size to 128 samples to establish a standard baseline before testing high-load scenarios.

Diagnostics Scope & Resource Benchmarks

• Estimated Execution Time: 15 to 30 minutes for a complete hardware and software measurement cycle.
• Estimated Financial Investment: $0 (utilizing free or trial DAW software and existing routing cables).

Step-by-Step Workflows to Measure Microphone Latency

Step 1: Calculate Theoretical Latency via DAW Driver Settings

Your audio interface and host software automatically calculate a theoretical latency based on your configured sample rate and buffer size. This provides an immediate mathematical baseline for your system's input and output delay.

1. Launch your Digital Audio Workstation and open the Preferences or Audio Setup menu.
2. Select your dedicated low-latency audio driver device (such as Focusrite Thunderbolt ASIO, Universal Audio ASIO, or CoreAudio).
3. Set your system Sample Rate to 48,000 Hz (48 kHz).
4. Navigate to the Buffer Size (or Block Size) configuration panel and select 128 samples.
5. Inspect the status panel adjacent to the driver settings. Modern DAWs display three distinct latency figures:


   • Input Latency: The time required for the analog signal from your mic to pass through the Analog-to-Digital Converter (ADC) and fill the input buffer.
   • Output Latency: The time required for the software audio stream to clear the output buffer and pass through the Digital-to-Analog Converter (DAC).
   • Round-Trip Latency (RTL): The combined total of input latency, output latency, and software engine processing overhead.

To manually calculate the theoretical buffer latency without software assistance, divide the buffer size by the sample rate and multiply by 1,000 to convert to milliseconds. For example, a 128-sample buffer running at 48 kHz produces a buffer delay of 2.66 milliseconds on input, and 2.66 milliseconds on output, totaling 5.33 milliseconds before converter overhead.

Pro-Tip: Software-reported latency values only reflect the theoretical driver buffer. They do not account for physical converter chips, motherboard bus delays, or internal VST plugin processing delays. Proceed to Step 2 for exact real-world measurement.

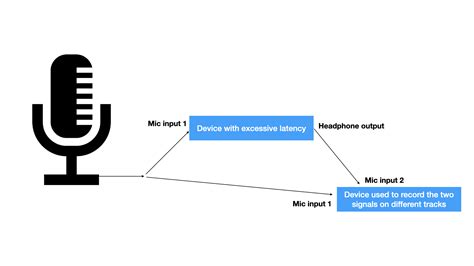

Step 2: Perform a Physical Loopback Transient Recording Test

The physical loopback test is the absolute gold standard for discovering your true, real-world mic and system latency. It measures the physical signal path down to the precise sample count.

1. Disconnect your microphone from Channel 1 of your audio interface.
2. Connect a physical patch cable directly from Line Output 1 (or a dedicated headphone output) into Line Input 1 on the front or back of your interface.
3. Turn down your main studio monitor speakers completely to prevent feedback loops.
4. Create two audio tracks in your DAW:


   • Track 1 (Source): Insert a sharp transient audio file, such as a 1-millisecond single-frame click sound, digital snare snap, or short sine wave burst. Route the output of this track directly to Output 1.
   • Track 2 (Record): Set the input of this track to Input 1. Arm Track 2 for recording. Disable software monitoring on Track 2 within the DAW to prevent feedback loops.
5. Hit Record in the DAW to send the click impulse out of Output 1 and capture it simultaneously on Track 2 via Input 1.
6. Stop recording after capturing the impulse burst.

Warning: Ensure all internal processing, master channel limiters, and VST audio plugins are completely bypassed or removed prior to running the loopback test. Active plugins introduce hidden delay compensation buffers that skew hardware measurements.

Step 3: Analyze Sample Offset and Convert to True Milliseconds

Once the transient click is recorded back into your DAW, you must measure the exact space between the original sound wave and the incoming recorded wave.

1. Zoom in deeply on the waveforms of both Track 1 (Source) and Track 2 (Record) until you can see individual peak spikes.

2. Set your DAW time ruler display format from "Bars and Beats" or "Minutes:Seconds" to Samples.

3. Place your cursor directly at the initial rising edge of the source transient on Track 1.

4. Drag a selection marquee from the source peak over to the exact start of the recorded transient peak on Track 2.

5. Read the selection length indicator in your DAW toolbar. This number represents your exact hardware and system round-trip latency measured in samples (for example, 480 samples).

6. Convert the sample offset into real-world milliseconds using this formula:

   Latency in Milliseconds = (Measured Distance in Samples / Active Sample Rate in Hertz) × 1000

   Example: If your recorded impulse lags by 384 samples at a sample rate of 48,000 Hz: (384 / 48000) × 1000 = 8.0 milliseconds of true Round-Trip Latency.

Step 4: Measure Broadcast Software Latency (OBS Studio Workflow)

If you broadcast live or record commentary via streaming platforms, your DAW settings may not reflect the additional delay introduced by video capture cards and scene filters.

1. Open OBS Studio and navigate to the Audio Mixer panel.
2. Click the gear icon next to your primary microphone audio source and select Advanced Audio Properties.
3. Create a video scene that contains both your webcam (or video capture device) and your microphone input.
4. Turn on Audio Monitoring for your microphone by setting its option to "Monitor and Output".
5. Perform a physical "Clap Test": Position your hand clearly in front of your camera lens and clap your hands sharply into the microphone once.
6. Record a brief 10-second video clip using your live encoding settings.
7. Import the recorded video file into your DAW or video editing software (such as Premiere Pro or DaVinci Resolve).
8. Unlink the audio track from the video track. Locate the exact video frame where your palms touch, then zoom down to the audio track to find the initial transient spike of the clap.
9. Measure the distance between the visual palm contact point and the audio transient spike on your timeline. If the audio spike appears 150 milliseconds after visual contact, apply a negative Sync Offset of -150 ms in the OBS Advanced Audio Properties menu.

Audio Driver Architectures & Latency Benchmarks

Selecting the correct driver architecture and buffer hardware parameters drastically alters system latency. The table below outlines empirical round-trip latency metrics across standard audio configurations running at a uniform baseline sample rate of 48 kHz.

Common Audio Latency Failures & Field Fixes

Scenario 1: Extreme Delay (Over 50ms) When Speaking Into a USB Microphone

• Root Cause: The microphone is utilizing generic system audio drivers (such as Windows MME or DirectSound) running through shared operating system mixers with high buffer allocations (often 1024 to 2048 samples).
• Actionable Fix: Download and install the dedicated ASIO driver supplied by your USB microphone manufacturer. If your manufacturer does not provide a native driver, install ASIO4ALL, configure it to access your microphone in exclusive mode, and lower your software buffer size to 128 samples. On macOS, ensure your application bypasses system sound effects and claims direct access to the CoreAudio device.

Scenario 2: Persistent Echo and Delay During OBS Live Streams

• Root Cause: Dual-monitoring path duplication. The operator is hearing both the hardware zero-latency monitor from their audio interface and the processed software audio monitor coming out of OBS Studio simultaneously.
• Actionable Fix: Open the OBS Audio Mixer, navigate to Advanced Audio Properties, and switch your microphone monitoring mode from "Monitor and Output" to "Monitor Off". Rely exclusively on your audio interface's direct hardware monitoring knob for real-time vocal feedback.

Scenario 3: Audio Pops, Crackles, and Dropouts at Low Latency Settings

• Root Cause: Buffer underrun. The computer CPU cannot process the incoming audio frames within the tiny timeframe allowed by a 32-sample or 64-sample buffer, causing missed samples (CPU spikes).
• Actionable Fix: Step up your buffer size incrementally from 64 samples to 128 samples or 256 samples until audio dropouts cease completely. Disable background applications, turn off CPU power-throttling profiles in your operating system, and set your computer power plan to "High Performance".

Scenario 4: Latency Gradually Increases over Time During Long Recording Sessions

• Root Cause: Sample rate clock drift between independent digital devices. This occurs when your microphone and your audio interface operate on separate internal crystal clocks that are running at slightly different sample frequencies (for example, 47,998 Hz versus 48,002 Hz).
• Actionable Fix: Consolidate your audio hardware into a single integrated interface where input and output channels share a single internal clock source. If using separate USB microphones and multi-channel outputs, lock their sample rates within your OS aggregate device utility or sync them using a master word-clock setup.

Frequently Asked Questions

What is an acceptable mic latency for live monitoring?

An acceptable microphone latency for live vocal monitoring is 10 milliseconds or lower, with optimal real-time performance occurring below 5 milliseconds. Latencies exceeding 12 to 15 milliseconds create an audible comb-filtering effect and echo that disrupts a performer's natural speaking and singing cadence.

Why does my mic have latency even when plugged directly into my interface?

Microphone latency occurs because physical analog sound waves must be translated into digital bits through Analog-to-Digital Converters, buffered in computer memory, processed by software, and converted back into analog signals. Even hardware circuits require a minute fraction of a millisecond to digitize audio frames.

How do I lower microphone latency in Windows 10 and 11?

To lower mic latency on Windows, switch your audio driver model from WASAPI Shared or MME to a native ASIO driver within your recording software settings. Decrease your audio buffer size to 64 or 128 samples, match your operating system and software sample rates to 48 kHz, and plug your audio interface directly into a dedicated USB port on your motherboard.

Does a higher sample rate reduce mic latency?

Yes, running your system at a higher sample rate (such as 96 kHz instead of 48 kHz) reduces theoretical buffer latency because the system processes sound frames at a faster rate. However, doubling your sample rate doubles the CPU processing load, which can cause audio pops and crackles if your hardware cannot sustain the throughput at small buffer sizes.

Can wireless or Bluetooth headphones affect my microphone latency?

Yes, wireless and Bluetooth headphones introduce significant output latency ranging from 40 to 300 milliseconds due to digital audio encoding, packetization, and wireless transmission delays. To measure true microphone latency and monitor sound without delay, you must use wired headphones connected directly to your audio interface or microphone output.
