To crimp a wire without a dedicated crimping tool, use a pair of needle-nose or lineman's pliers, a bench vise, or a hammer and flathead screwdriver to deform the terminal barrel directly around the bare wire strands. Strip the wire to approximately 1/4 inch, insert the conductor fully into the terminal, and compress the metal sleeve systematically to establish a high-density, gas-tight connection. Finish by applying adhesive-lined heat-shrink tubing over the joint to guarantee mechanical strain relief and environmental insulation.


Pre-Operation Tool Selection and Wire Safety Checklist

Crimping is more than just bending metal around copper strands; it is a mechanical process designed to achieve a cold weld. Under proper compression, the wire strands and the terminal barrel deform together, eliminating voids where oxygen can enter. If air is trapped within the connection, oxidation occurs over time, increasing electrical resistance, causing voltage drops, and potentially generating enough thermal energy to ignite a fire.

When you do not have a specialized crimping tool on hand, you must select alternative tools that can apply concentrated, localized force to deform the terminal metal without cutting through it. This procedure requires careful attention to the gauge of the wire and the material properties of the terminal.

Before starting, review the essential tools, safety parameters, and preparation benchmarks below to ensure your DIY connection meets mechanical and electrical standards.



Essential Gear and Tools



  • Alternative Compression Tools: Lineman’s pliers, needle-nose pliers, vise-grip locking pliers, a bench vise, or a small hammer paired with a dull flathead screwdriver.
  • Stripping Tools: Utility knife, razor blade, or standard wire strippers.
  • Insulation and Protection: Adhesive-lined polyolefin heat-shrink tubing or high-grade vinyl electrical tape.
  • Heat Source: Heat gun, butane pocket torch, or a lighter (for securing the heat-shrink tubing).
  • Terminals: Seamless copper or brass crimp connectors (butt splices, ring terminals, or spade terminals). Avoid cheap, brittle aluminum connectors.


Prerequisite Knowledge and Safety Standards



  • Voltage Limitations: Emergency crimping methods should only be used on low-voltage DC applications (such as 12V/24V automotive, marine, or electronics hobby projects). Do not use these uncertified methods on 120V/240V AC residential or industrial mains wiring, as this violates National Electrical Code (NEC) standards and poses a severe fire hazard.
  • Wire Compatibility: Match your wire gauge (AWG) precisely to the terminal size. Standard color-coded insulation sleeves indicate size: Red (22-16 AWG), Blue (16-14 AWG), and Yellow (12-10 AWG).
  • Stranded vs. Solid Wire: Only crimp stranded copper wire. Solid-core wire does not deform uniformly under compression and is highly prone to slipping out of emergency crimps.


Estimated Budget and Project Benchmarks



  • Estimated Cost: $0 (assuming common household hand tools are already available).
  • Project Time: 5 to 10 minutes per connection.
  • Target Mechanical Pull Force: 10 to 50 pounds of tensile resistance, depending on the wire gauge (conforming closely to UL 486A-486B standards).

Emergency Wire Crimping Methods: Step-by-Step Workflows

Depending on the tools you have available and the gauge of the wire you are working with, select one of the three field-tested methods detailed below.



Method 1: The Dual-Stage Pliers Compression Method

This method is highly effective for smaller wires ranging from 22 AWG down to 14 AWG. It uses standard pliers to mimic the dual-point indentation of a professional crimping tool.

Step 1: Strip the Conductor

Using wire strippers or a utility knife, carefully remove exactly 1/4 inch (6.4 mm) of the outer insulation jacket. Be careful not to nick, cut, or scrape any of the internal copper strands, as damaged strands reduce the current-carrying capacity of the wire and create weak points that break under tension.

Step 2: Twist and Insert

Gently twist the exposed copper strands clockwise between your thumb and forefinger to bundle them into a tight, cohesive cylinder. Insert the bundled conductor into the metal barrel of the terminal until the insulation jacket butts directly against the base of the terminal barrel. Ensure that no bare copper strands are left exposed outside the rear of the connector barrel.

Step 3: Execute the Primary Crimp

Position the flat, cross-hatched gripping jaws of a pair of lineman's pliers or locking vise-grips over the center of the terminal barrel. If you are using an insulated terminal, place the jaws directly over the plastic sleeve surrounding the metal barrel. Squeeze the handles together with firm, steady pressure. Your goal is to flatten the round barrel into an oval profile.

Step 4: Apply the Secondary Indentation

To ensure a gas-tight seal, you must create a deep indentation along the centerline of your flattened oval. Take the nose of a pair of needle-nose pliers—or the blunt cutting edge of a pair of side-cutters—and place it perpendicular to the flattened barrel, right in the center. Squeeze firmly to press a localized dimple directly into the metal.

Warning: If using side-cutters or wire cutters for the indentation step, apply pressure gradually. Excessive force will slice through the insulation and the underlying metal barrel, destroying the connection and severing the copper strands.

Step 5: Perform a Pull Test

Grasp the wire in one hand and the connector in the other. Pull apart with moderate force (approximately 10 to 15 pounds of tension). The wire must not slip, wiggle, or back out of the terminal barrel. If you notice any movement, repeat the indentation step with slightly more force, or cut the wire and start over with a fresh terminal.



Method 2: The Hammer and Flathead Screwdriver Indentation Method

This mechanical impact method is best suited for heavy-duty, uninsulated terminals, such as large battery cables (8 AWG to 2/0 AWG) or thick ring lugs.

Step 1: Prepare the Heavy-Duty Cable

Strip approximately 1/2 inch to 3/4 inch of insulation from the heavy-gauge cable, depending on the depth of your large lug's barrel. Insert the bare copper strands into the lug. Ensure the conductor fills the entire volume of the receiving barrel.

Step 2: Stabilize the Connection

Place the terminal lug flat down on a highly dense, solid surface that can absorb impact, such as a concrete workshop floor, an anvil, or the flat rear anvil plate of a bench vise. Do not perform this on a standard wooden workbench, as the wood will absorb the impact energy and prevent the metal from deforming properly.

Step 3: Position the Screwdriver

Place the tip of a heavy-duty, through-tang flathead screwdriver (one where the metal shaft extends entirely through the handle to the strike cap) directly across the center of the terminal barrel, running parallel to the direction of the wire.

Step 4: Strike to Indent

Using a small ball-peen hammer or hand sledge, strike the butt end of the screwdriver handle with a firm, controlled blow. The energy will transfer through the screwdriver blade, creating a deep, longitudinal V-shaped channel down the center of the barrel. This force drives the metal inward, compressing the copper strands into a solid mass.

Pro-Tip: For maximum safety and performance, strike the barrel twice: once near the front opening and once near the rear base. This double-indentation technique ensures that the entire length of the internal sleeve grips the wire.

Step 5: Check Mechanical Integrity

Try to twist or pull the cable out of the lug. Because heavy-gauge wire carries high current, any loose connection will heat up rapidly. If there is even a millimeter of play, reposition your screwdriver and strike again with slightly more force.



Method 3: The Bench Vise Cold Weld Method

If you have access to a workshop bench vise, you can apply extreme, highly uniform mechanical leverage to compress terminals of almost any size.

Step 1: Prep and Position

Strip your wire and insert it fully into the terminal barrel. Open the jaws of your bench vise wide enough to accommodate the terminal.

Step 2: Insert the Terminal Into the Jaws

Place the assembly between the vise jaws. Align the terminal so that the flat plates of the vise jaws contact the rounded sides of the connector barrel.

Step 3: Insert a Compression Mandrel

To prevent the vise from simply flattening the connector into a useless, flat pancake with no gripping force, place a small, hardened steel nail, bolt, or drill bit (approximately 1/16 to 1/8 inch in diameter) parallel along the top center of the terminal barrel. This acts as a mandrel to concentrate the compression force down into the center of the connector.

Step 4: Crank the Vise Jaws Closed

Slowly tighten the vise. As the jaws close, the steel nail or drill bit will be forced into the terminal barrel, creating a clean, uniform, and deep indentation. Continue tightening until the vise handle resists further hand-tightening.

Step 5: Relieve and Inspect

Open the vise jaws and remove the finished connection. Inspect the indentation for depth and uniform compression along the length of the barrel.

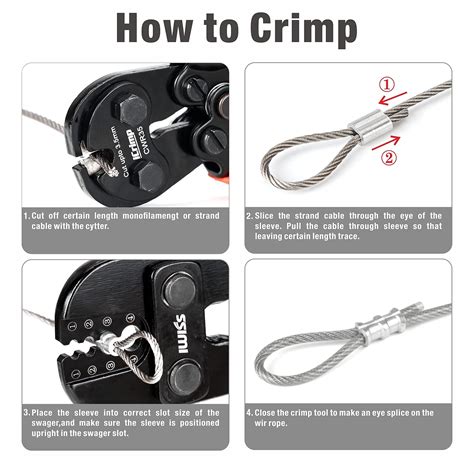

Wire Rope Crimping Sleeves at Hunter Langham blog

Wire Rope Crimping Sleeves at Hunter Langham blog

Comparative Performance and Pull-Out Strength of Crimping Methods

The table below outlines the mechanical capability, risks, and performance characteristics of each alternative crimping method compared to standard industry tools.



Crimping Method Best Wire Gauge Range (AWG) Estimated Tensile Strength Retention Primary Risk Factor Recommended Environmental Protection
Professional Crimping Tool 26 AWG to 10 AWG 95% - 100% (UL Standard) None (When calibrated correctly) Standard Heat-Shrink Tubing
Dual-Stage Pliers Method 22 AWG to 14 AWG 70% - 85% Under-compression leading to pull-out Adhesive-Lined Heat-Shrink
Hammer & Flathead Screwdriver 10 AWG to 2/0 AWG 65% - 80% Splitting the terminal barrel / over-striking Heavy-Wall Adhesive Heat-Shrink
Bench Vise & Mandrel 14 AWG to 8 AWG 75% - 90% Over-flattening and structural metal failure Double-Layer Heat-Shrink
Soldering (No Crimp Alternative) 26 AWG to 10 AWG 90% - 98% Solder wicking; wire embrittlement under vibration Rigid Adhesive Heat-Shrink

Common Mechanical Failures and Emergency Remediation

Even with careful work, using alternative tools can sometimes result in sub-par connections. Below are the most common failures encountered during emergency crimping, along with their root causes and how to fix them.



Wire Easily Pulls Out of the Completed Crimp



  • Root Cause: The alternative tool did not apply enough concentrated pressure to deform the terminal's internal metal sleeve past its elastic limit, leaving air gaps inside.
  • Actionable Fix: Cut off the failed terminal, strip a fresh section of wire, and use the Dual-Stage Pliers Method. Ensure you add a secondary indentation step using needle-nose pliers or blunt side-cutters to create a deep mechanical lock.


The Metal Terminal Barrel Cracks or Splits Open



  • Root Cause: Excessive impact force from a hammer strike, or over-tightening in a bench vise, stressed the metal sleeve beyond its tensile strength limit. This is especially common with cheap, brittle aluminum or low-grade brass terminals.
  • Actionable Fix: Discard the cracked terminal immediately; a split barrel cannot maintain pressure over time. Use a high-quality annealed copper terminal. When compressing, apply force gradually rather than in one sudden, high-energy impact.


Individual Copper Wire Strands are Severed or Cut



  • Root Cause: The tool used to make the indentation (such as side-cutters or a sharp flathead screwdriver) was too sharp or pressed too deep, cutting into the copper core.
  • Actionable Fix: Cut the wire back completely, strip a new section, and ensure that whatever tool you use to make the dent has a dull, rounded edge. If using side-cutters, wrap a layer of electrical tape over the jaws to blunt their cutting edge.


Intermittent Electrical Continuity or High Resistance



  • Root Cause: Corrosion, dirt, or wire insulation became trapped inside the terminal barrel before it was compressed, preventing a clean metal-to-metal connection.
  • Actionable Fix: Always ensure the exposed copper strands are bright, clean, and free of oxidation before crimping. Wipe away any dirt or oil. If the wire is older and oxidized (dark or green-colored), scrape the strands clean with a utility knife before inserting them into the terminal.

Frequently Asked Questions



Is it safe to crimp wires using regular pliers?

Yes, using regular pliers is safe for temporary or emergency low-voltage applications (under 24V), provided you use a two-step crimping process to flatten and then deeply indent the terminal barrel. However, regular pliers should never be used on high-voltage AC home wiring, as they cannot guarantee the gas-tight, vibration-resistant seal required by safety codes.



Can I use solder instead of crimping a terminal?

Yes, soldering is a highly reliable alternative to crimping when you do not have a crimping tool. After inserting the stripped wire into the terminal, heat the joint with a soldering iron and apply electrical-grade rosin-core solder until it flows into the barrel. Be aware that soldering makes the copper wire stiff and brittle where the solder stops, making it prone to cracking in high-vibration environments unless it is well-supported with heat-shrink tubing.



How do I know if my DIY crimp is secure?

The most reliable way to test a DIY crimp is with a physical pull-test. Give the wire and the connector a firm, strong tug; a proper crimp should easily withstand a pull of 10 to 15 pounds for small wires, and up to 50 pounds for heavy-gauge cables. Additionally, look at the crimp closely to ensure the metal barrel is deeply dented and wrapped tightly around the copper strands, with no loose, stray wires sticking out.



What is the risk of an under-crimped wire connection?

An under-crimped wire connection leaves small air pockets between the copper strands and the terminal barrel. Over time, oxygen penetrates these gaps, causing oxidation that increases electrical resistance. When current flows through this high-resistance area, it generates heat, which can melt insulation, damage connected components, and potentially start an electrical fire.

Upgrade Your Electrical Tool Toolkit

While these emergency methods are highly effective in a pinch, nothing can replace the safety, speed, and consistency of a professional ratcheting wire crimper. Invest in a high-quality crimping tool today to ensure every connection you make is reliable, durable, and code-compliant.
