Mastering Call Forwarding On Cisco IP Phones: A Technical Configuration Guide
Configuring call forwarding on a Cisco IP Phone is a server-side or device-level operation that reroutes incoming communications to a secondary destination, such as an internal extension, voicemail, or an external PSTN number. Success depends on verifying your administrative permissions within the Cisco Unified Communications Manager (CUCM) and ensuring the CSS (Calling Search Space) allows for external call redirection if forwarding off-net.
Foundational Prerequisites for Cisco Telephony Redirection
Before attempting to modify your call forwarding settings, it is essential to understand that Cisco IP telephony operates within a managed network environment. Unlike residential analog phones, business-grade Cisco handsets are governed by policies defined by the system administrator. If your specific menu options are greyed out or missing, the device configuration is likely locked via the Cisco Unified Communications Manager (CUCM) group policy.
- Mandatory Prerequisite Knowledge: You must possess a valid extension number and, if forwarding to an external line, the correct dialing prefix (e.g., 9 or 8) used by your organization to exit the internal gateway.
- Essential Gear and Software: A Cisco 6900, 7800, 7900, 8800, or 9900 series IP phone. No external physical tools are required, as the process is purely software-based via the handset’s firmware interface.
- Budget and Duration: This configuration is a zero-cost procedural task. The setup typically requires less than 90 seconds to execute from the physical handset.
- Verification Standards: Ensure your current firmware supports the specific softkeys displayed on the LCD screen, as nomenclature may vary slightly between CUCM releases 10.x through 14.x.
Standardized Workflow for Enabling Call Forwarding via Handset
The following procedures assume your user profile is configured for standard forwarding capabilities. Always perform these actions while the phone is in an idle state—do not initiate these steps while a call is active or on hold.
Step 1: Identifying the Forward All Softkey

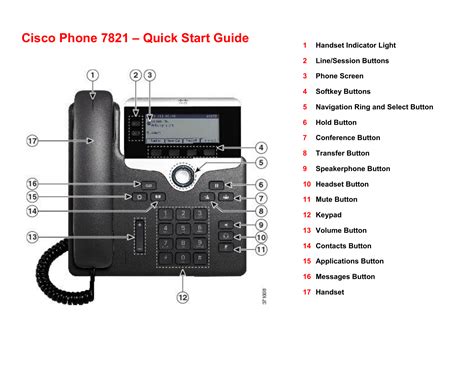

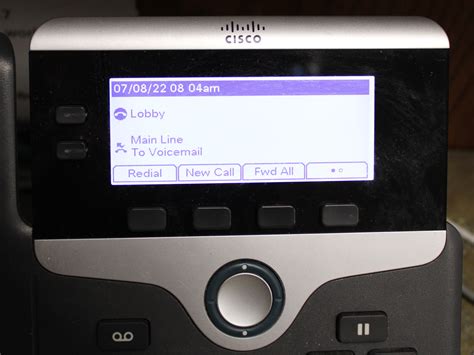

Locate the softkey labeled Forward All on the bottom edge of your Cisco IP phone display. If you do not see the label, press the More softkey located to the right of the screen to reveal additional options. When you press Forward All, the phone will typically emit a confirmation beep and change the icon adjacent to your extension number to indicate that redirection is active.
Step 2: Inputting the Destination Number
Once the Forward All feature is triggered, enter the exact destination number where you want calls to be sent. If you are forwarding to another internal desk extension, simply dial the 3 to 5-digit extension number. If you are forwarding to an external telephone number, you must include the necessary outbound dialing prefix required by your company’s dial plan.
Pro-Tip: If you are unsure of your company’s external dialing prefix, perform a test call to an external number first to see what digit you must dial to reach an outside line. Failure to include this prefix will result in an immediate error tone or a call to a null destination.
Step 3: Verifying the Forwarding Status
After entering the number, the LCD screen should update to display a message confirming the destination, such as Forwarding to 9123456789. If the display does not update, the command was likely rejected due to a Calling Search Space restriction. You may press the Forward Off button at any time to clear the setting and resume normal operation.
Step 4: Configuring Selective Forwarding via Self-Care Portal
For advanced users or those who need to forward calls only when the line is busy or when there is no answer, the physical handset may not be sufficient. Log in to the Cisco Unified Communications Self-Care Portal using your corporate credentials. Navigate to the General Settings tab and locate the Call Forwarding section. This interface provides granular control, allowing you to set distinct numbers for busy signals and unanswered calls without affecting your primary availability.
Harga Jual Cisco CP-7821-K9 Unified IP Phone
Technical Comparison of Forwarding Methods
| Feature | Physical Handset Method | Self-Care Portal Method |
|---|---|---|
| Primary Scope | Global (All incoming calls) | Granular (Busy/No Answer/All) |
| Interface Type | Physical Softkeys | Web-based Dashboard |
| Availability | On-site only | Remote accessible (via VPN) |
| Permission Level | Device-level | User-level Profile |
| Complexity | Low | Moderate |
Common Implementation Failures and Remedies
Telephony administrators frequently encounter specific roadblocks when users attempt to configure forwarding. Addressing these requires distinguishing between user error and system-level blocks.
- Issue: The Forward All softkey is missing from the display.
- Root Cause: Your system administrator has disabled the forwarding feature in the device’s Common Phone Profile within CUCM.
- Actionable Fix: Submit a formal request to your IT support department to enable the "Forward All" permission for your specific device profile.
- Issue: The phone displays "Error" or "Not Authorized" when forwarding externally.
- Root Cause: The Calling Search Space (CSS) assigned to your line does not have permission to route calls through the PSTN gateway.
- Actionable Fix: Check with your network engineering team to ensure your line's CSS includes the appropriate partition for external route patterns.
- Issue: Calls forwarded to an external number are dropped immediately.
- Root Cause: The telephony system requires a specific authorization code for outbound long-distance calls.
- Actionable Fix: Verify if your extension requires an Account Code or Forced Authorization Code (FAC) to complete off-net calls; if so, forwarding may not be possible without administrative script overrides.
Frequently Asked Questions
Can I forward my Cisco phone to an external mobile number?
Yes, provided your organization's dial plan permits external call redirection. You must include the external dialing prefix required by your system, followed by the full ten-digit mobile number, to successfully route the call.
Does forwarding calls consume double the bandwidth on my network?
No, the Cisco Unified Communications Manager acts as a back-to-back user agent. When a call is forwarded, the system initiates a new leg to the destination number, maintaining efficient bandwidth management without tying up multiple streams on your local handset.
What happens if I forward my phone while I am away?
Once the Forward All feature is activated, your desk phone will not ring. The call signaling is redirected immediately to the destination you specified. If you forward to your voicemail, the caller will reach your greeting immediately after the forward command is processed.
Can I use the phone normally while Forward All is active?
Yes, you can still place outbound calls while Forward All is enabled. Outbound calling is not restricted by incoming call forwarding settings. However, all incoming calls will continue to follow the forwarding path until you manually press the Forward Off softkey.
Optimize Your Corporate Communication Infrastructure
For enterprise-level deployment, ensure that your Calling Search Spaces are audited quarterly to balance user flexibility with institutional security requirements. If you require advanced assistance with bulk phone configuration or CUCM policy refinement, consult your internal systems architect to implement standardized user templates.
