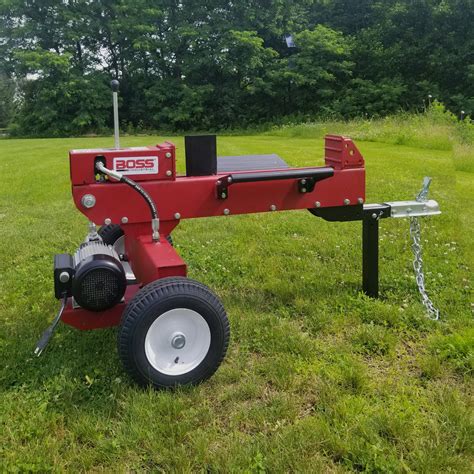

How To Build A Wood Splitter: Industrial Design And Fabrication Guide

Building a heavy-duty hydraulic wood splitter requires precise engineering of the structural frame, hydraulic circuit, and power plant to achieve safe splitting forces between 16 and 22 tons. This comprehensive guide outlines the steel selection, component matching, and welding protocols necessary to safely fabricate a reliable, commercial-grade log splitter in your home workshop.

Structural Engineering and Material Procurement Checklist

Constructing a high-tonnage mechanical log splitter demands a rigorous approach to structural steel selection, hydraulic component integration, and safety compliance. Working with pressures exceeding 3,000 PSI introduces extreme mechanical stress, meaning shortcuts in material sizing or weld penetration can result in catastrophic failure. Before striking an arc or turning a wrench, gather all necessary components, heavy-duty machinery, and safety equipment to ensure an uninterrupted, OSHA-compliant build process.

• Essential Materials & Structural Steel:


  • Main beam: 6-inch by 6-inch structural steel H-beam (minimum 3/8-inch web and flange thickness) or heavy-wall W-beam.
  • Reservoir/Tank: 10-gauge to 7-gauge mild steel plate for a 12-to-22-gallon hydraulic reservoir.
  • Wedge and Push Plate: T-1 or AR400 abrasion-resistant steel plate (minimum 1-inch thickness for the splitting wedge).
  • Axle & Running Gear: 2,000 lb to 3,500 lb capacity trailer axle, leaf springs, and pneumatic tires for towable models.
• Required Tools & Shop Equipment:


  • 220V MIG or Stick welder (capable of multi-pass structural welds on 1/2-inch steel).
  • Heavy-duty angle grinder with cutting and grinding discs, plasma cutter or oxy-acetylene torch.
  • Drill press or magnetic drill for precision mounting holes.
  • Hydraulic tubing bender, thread sealant, and fluid transfer equipment.
• Prerequisite Knowledge & Safety Gear:


  • Advanced proficiency in structural welding and reading hydraulic schematics.
  • Full personal protective equipment: auto-darkening welding helmet, heavy leather gloves, safety glasses, and steel-toed boots.
• Benchmarks & Budget:


  • Estimated total fabrication time: 35 to 50 hours spread over 2 weeks.
  • Approximate cost spectrum: $1,200 to $2,500 depending on new versus surplus hydraulic components.

Step-by-Step Fabrication and Hydraulic Integration

Step 1: Fabricating the Structural Frame and Beam Assembly

Begin by cutting your 6-inch H-beam to your desired length, typically 72 to 84 inches, to accommodate both the hydraulic cylinder stroke and the maximum log length (usually 24 inches) with extra clearance for the wedge and foot plate. Weld a 3/8-inch steel plate vertically to the rear end of the H-beam, reinforcing it with triangular gussets on all four sides to create the immovable anvil or foot plate that the wood rests against. Next, fabricate the engine and pump mounting platform out of 1/4-inch steel plate, welding it securely to the opposite end of the beam or onto a dedicated tongue assembly if designing a towable unit.

Warning: Never rely on a single-pass fillet weld for the foot plate or cylinder mounts. High-tonnage splitting forces create massive shear stresses that demand multi-pass, deep-penetration structural welds.

Step 2: Constructing the Splitting Wedge and Sliding Beam Carriage

Fabricate the splitting wedge using a 1-inch thick AR400 plate, cutting it into a triangular profile with a 45-degree cutting edge angle. Weld this wedge to a sliding sleeve or carriage constructed from heavy-wall rectangular tubing that fits snugly over the top flange of your H-beam. To minimize friction and wear during operation, weld UHMW (Ultra-High Molecular Weight) polyethylene wear strips or adjustable steel keeper plates inside the sliding carriage so the wedge glides smoothly along the beam without lateral wobble.

Pro-Tip: Design a 4-way slip-on wedge cap that fits over your primary straight wedge, allowing you to convert the splitter for high-volume firewood production with a single drop-in pin.

Step 3: Installing the Hydraulic Power Unit and Reservoir

Position your gas engine (typically a horizontal shaft 6.5 HP to 14 HP engine) and your two-stage hydraulic pump (11 GPM to 22 GPM) onto the pre-welded engine platform, aligning the pump shaft directly with the engine PTO shaft using a flexible spider coupler. Fabricate or mount your hydraulic fluid reservoir, ensuring it holds at least 1.5 times the pump's per-minute flow rate to prevent overheating. Connect the suction port of the pump to the bottom of the reservoir using a large-diameter suction line and an inline shut-off valve, installing a 10-micron spin-on return filter on the return line to keep the AW32 or AW46 hydraulic fluid pristine.

Step 4: Plumbing the Hydraulic Circuit and Valve Control

Route high-pressure hydraulic hoses with a working pressure rating well above your system relief valve threshold (minimum 4,000 PSI rating for 3,000 PSI systems). Plumb the output of the two-stage pump into the inlet of your detent valve (auto-return control valve). Run the high-pressure output line from the valve to the base port of your hydraulic cylinder (typically a 4-inch or 5-inch bore with a 24-inch stroke), and run the second working line from the valve to the rod end of the cylinder. Finally, run the low-pressure return line from the valve back through the oil filter into the top of the hydraulic reservoir.

Step 5: Final Assembly, Fluid Filling, and System Bleeding

Bolt the hydraulic cylinder securely to the H-beam and pin the rod clevis directly to the back of the sliding wedge carriage. Double-check all threaded pipe connections, using hydraulic thread sealant (avoiding traditional Teflon tape that can break loose and clog the spool valve). Fill the reservoir with high-grade anti-wear hydraulic oil until the sight glass reads three-quarters full. Start the engine at idle, cycle the control valve back and forth twenty times without a load to bleed trapped air from the cylinder and hoses, and check for any weeping fittings before conducting under-load testing.

Component Specifications and Hydraulic Parameter Matrix

Troubleshooting Common Fabrication and Operational Issues

• Low Splitting Force and Slow Cycle Times


  • Root Cause: Incorrect pressure relief valve setting, worn pump gears, or air trapped within the hydraulic cylinder circuit.
  • Actionable Fix: Use a liquid-filled pressure gauge to test working pressure at the valve. Adjust the relief valve upward incrementally, or bleed the system by fully cycling the cylinder 15 times with no load.
• Excessive Heat Build-Up in Hydraulic Fluid


  • Root Cause: Undersized hydraulic reservoir, restricted suction line, or continuous bypassing of fluid through the control valve.
  • Actionable Fix: Ensure your reservoir holds a minimum of 15 gallons for a 16 GPM pump. Verify suction hose inner diameter is at least 1 inch and check that return filters are clean and uninhibited.
• Binding and Excessive Wear on the H-Beam Flange


  • Root Cause: Improper clearance in the sliding wedge carriage or lack of lubrication and wear pads.
  • Actionable Fix: Install adjustable set screws or UHMW plastic wear strips inside the sliding carriage to maintain a precise, low-friction gap around the H-beam.

Frequently Asked Questions

What size hydraulic cylinder do I need for a wood splitter?

For most residential and semi-commercial applications, a 4-inch bore cylinder with a 24-inch stroke delivers approximately 18 tons of force at 3,000 PSI, which easily splits seasoned hardwood rounds up to 24 inches in diameter. If you frequently split massive, knotty elm or oak logs, upgrade to a 5-inch bore cylinder to increase your splitting output past 25 tons.

Why does my two-stage pump whine loudly during operation?

A high-pitched whining sound typically indicates oil starvation caused by a restricted suction line, a closed tank shut-off valve, or an undersized inlet hose. Check that your suction hose is fully open, rated for suction (wire-reinforced so it does not collapse), and that your fluid level is adequate.

Can I run a wood splitter pump off a tractor PTO instead of a gas engine?

Yes, you can couple a standard tractor PTO pump directly to a 540 RPM tractor PTO stub, eliminating the need for a standalone gas engine. Ensure your tractor's hydraulic reservoir and fluid cleanliness meet the requirements of your splitter valve and cylinder.

How do I maintain hydraulic fluid and filters over time?

Replace the spin-on hydraulic return filter after the first 10 hours of operation to catch any initial break-in metallic debris, and subsequently change the filter once per year. Drain and replace the hydraulic oil every 300 hours of operation or whenever the fluid appears milky due to moisture contamination.
