How To Build A Paper Tower: Engineering Principles For High-Load Structural Integrity
Building a highly stable paper tower requires converting flexible, low-tensile sheets into high-compression structural members using strategic geometric folding and rolling techniques. By applying engineering principles such as load distribution, wide base dynamics, and a low center of gravity, you can construct a tower that exceeds several feet in height while supporting significant external weights. Success relies on minimizing structural shear stresses and maximizing the cross-sectional moment of inertia through tight cylindrical or triangular prism columns.
Engineering Design Requirements and Material Limitations
Constructing an engineered paper tower is a classic structural design challenge that tests your ability to maximize load-bearing capacity under strict material constraints. In both educational STEM competitions and structural prototyping, the objective is to build the tallest possible structure that can withstand either its own dead load (self-weight) or an applied live load (such as a tennis ball or metal washers at the peak) using minimal materials.
To achieve structural equilibrium, you must understand how paper behaves under mechanical stress. Unmodified paper has virtually zero compressive strength; it buckles instantly under minimal load. However, by rolling, folding, or creasing the paper, you redistribute its material relative to its neutral axis. This increases its bending stiffness and overall resistance to structural failure.
Pre-Operation & Materials Checklist
- Primary Structural Material: 20 sheets of standard 20lb copier paper (8.5 x 11 inches, or A4, approximately 75 to 80 grams per square meter).
- Adhesive Medium: One roll of standard 1-inch masking tape. Note that in highly restricted competitions, tape may be limited to a specific length (e.g., 1 meter) or completely prohibited in favor of interlocking tabs.
- Precision Tools: Standard scissors, a metric ruler, and a sharp graphite pencil (used as a mandrel for rolling uniform cylinders).
- Load Testing Equipment (Optional): A small plastic cup to serve as a load platform, and uniform weights (such as pennies, washers, or a golf ball).
- Prerequisite Structural Concepts: Compression (pushing-together forces), tension (pulling-apart forces), buckling (sudden sideways bending under compression), and the slenderness ratio (the ratio of a column's length to its lateral dimensions).
- Project Benchmarks:
- Estimated Duration: 45 to 60 minutes for design, fabrication, and testing.
- Target Height: 1.0 to 1.5 meters (approximately 3.3 to 5 feet).
- Target Load Capacity: 200 grams supported at the highest point.

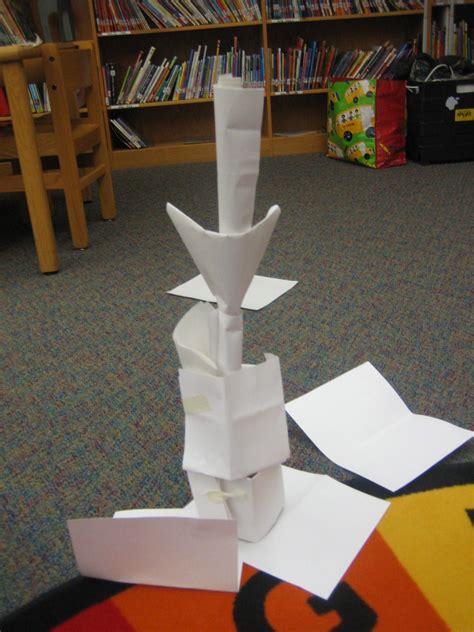

The Engineering Workflow for High-Ratio Paper Towers
Step 1: Designing and Fabricating the Foundation Base
The foundation of your paper tower must counteract the overturning moments caused by gravitational pulling, minor structural misalignments, or lateral air currents. A tower with a narrow base will quickly tip over as its height increases because its center of gravity will easily drift outside its footprint.
- Select three sheets of paper to construct the foundational footprint. Do not leave these sheets flat; flat paper lacks structural stiffness and will warp.
- Fold each sheet into a stiff, low-profile triangular prism or a dense, rolled tube to create three ground-level sills.
- Join these three sills together using minimal tape to form an equilateral triangle. An equilateral triangle is geometrically stable; it cannot be deformed without changing the length of its sides, making it the ideal base shape.
- The perimeter of this triangular base should measure at least 30 centimeters on each side to provide a wide, stable footprint for a tower designed to reach 1 to 1.5 meters in height.
Pro-Tip: Avoid square or rectangular base designs. Under lateral forces, square frames can easily deform into parallelograms and collapse. Triangles are inherently rigid because they distribute applied loads evenly along all three members.
Step 2: Roll High-Compression Cylindrical Columns
Columns are the primary vertical load-bearing elements of your tower. They must withstand immense compressive forces without buckling. Cylinders are the most efficient column shape because they lack sharp corners, which means stress is distributed evenly across the entire surface area.
- Place a single sheet of paper on a flat surface. Position a pencil diagonally or parallel to the edge of the paper to act as a rolling mandrel.
- Roll the paper tightly around the pencil to form a continuous cylinder. The ideal outer diameter of your column should be between 1.5 and 2.0 centimeters.
- If the cylinder is too wide (greater than 3 cm), the paper walls will be too thin and susceptible to localized skin buckling. If the cylinder is too narrow (less than 1 cm), the column will act like a thin needle, increasing its overall slenderness ratio and causing it to bend globally under minimal loads.
- Secure the seam of the cylinder with three small pieces of tape: one at each end and one in the exact middle. Do not wrap the entire column in tape, as this wastes material and adds unnecessary dead weight to the upper levels of the structure.
- Slide the pencil out of the rolled tube. Repeat this process to fabricate at least 12 to 15 identical, highly compressed cylinders.
Warning: Do not fold or crease your cylinders. Creases introduce micro-fractures in the paper fibers, creating localized stress concentration points that act as failure hinges when a load is applied.
Step 3: Constructing Interlocking Structural Joints
A paper tower is only as strong as its weakest joint. Simply taping the ends of two tubes together creates a flexible hinge that will buckle under the slightest bending moment. You must design rigid joints that can transfer forces seamlessly from the top of the tower down to the foundation.
- To connect two vertical columns end-to-end, create an interlocking sleeve joint. Cut a vertical slit of approximately 3 centimeters into the top end of the lower column.
- Slightly crimp the bottom end of the upper column, sliding it directly into the slit end of the lower column.
- Ensure the overlap between the two columns is at least 3 to 4 centimeters. This overlap distributes the transfer of compressive forces across a larger surface area.
- Secure the joint by wrapping a single, tight band of masking tape around the overlapped section. This prevents the outer tube from flaring open under load.
- Verify that the joined columns form a perfectly straight vertical line. Any angular deviation at the joint introduces an eccentric load, which drastically reduces the column's load capacity.
Step 4: Implementing Lateral Bracing and Truss Networks
As your tower rises, the vertical columns will begin to sway and bend outward. This is a classic demonstration of Euler's buckling theory. To prevent this, you must install diagonal bracing to turn your vertical columns into a rigid space truss.
- Divide your tower's height into vertical tiers of approximately 25 to 30 centimeters each.
- At each tier level, construct a horizontal triangular frame using lighter, folded paper struts to connect the vertical columns. This horizontal frame maintains the cross-sectional shape of the tower and prevents the columns from spreading outward.
- Cut thinner paper strips (approximately 2 centimeters wide) and fold them into "V" shapes or tight half-tubes to act as diagonal braces.
- Install these diagonal braces across every open square bay of your tower, connecting the bottom corner of one tier to the top diagonal corner of the same tier.
- These diagonal braces act as tension and compression members. When a lateral force pushes against the tower, the diagonal braces absorb the load, redirecting it safely down to the wide triangular base.
Step 5: Calibrating the Load Platform and Center of Mass
The final step is to construct the load-bearing platform at the very peak of your tower. This platform must be perfectly centered over the tower's vertical axis of symmetry to prevent uneven load distribution.
- Create a flat platform at the top of your tower by folding a small square of paper and securing it horizontally across the top points of your vertical columns.
- Use a plumb line (a piece of string with a small weight attached to the end) suspended from the center of the top platform to verify alignment. The weight should hang directly over the geometric center of your triangular base.
- If the plumb line hangs off-center, gently adjust the tension of your diagonal braces to pull the tower back into perfect vertical alignment.
- When testing the tower's load capacity, place weights onto the platform slowly and without sudden impacts. Static loads are much easier for paper structures to support than dynamic, sudden drops.
How To Build A Tall Tower With Paper And Tape - Design Talk
Geometric Efficiency and Load-Bearing Capacity Analysis
Different structural profiles distribute physical forces in vastly different ways. The following table compares the mechanical performance, structural efficiency, and engineering trade-offs of various paper preparation methods when utilized as vertical columns within a tower structure.
| Geometric Column Profile | Primary Load-Bearing Mechanism | Buckling Resistance | Fabrication Complexity | Material Efficiency Ratio | Common Failure Mode |
|---|---|---|---|---|---|
| Tight Cylinder (1.5 cm diameter) | Uniform compression across a continuous radial surface. | Extremely High | Moderate (requires a rolling mandrel) | Outstanding (high load-to-weight ratio) | Localized skin buckling or crimping. |
| Triangular Prism (Folded) | High moment of inertia along three sharp corner vertices. | High | Low (simple 3-step folding) | Good (stiff, but uses more surface paper) | Torsional twisting (twisting along the axis). |
| Square Prism (Folded) | Moderate bending resistance along four flat faces. | Moderate | Low (simple 4-step folding) | Moderate | Face-caving or corner-collapse. |
| Flat, Unfolded Sheet | Pure tension (unusable under vertical compression). | Zero | None | Extremely Poor | Instantaneous elastic buckling. |
| L-Shape Angle Strut | Excellent bending resistance in two directions. | Moderate-High | Very Low (single 90-degree fold) | High (excellent for diagonal bracing) | Bending away from the open angle side. |
Structural Failures and Mechanical Stabilization Techniques
Even carefully constructed paper towers can experience catastrophic failure during testing. Understanding the physical root causes of these collapses allows you to diagnose and repair structural weaknesses dynamically.
Failure Scenario: Global Column Buckling (The tower bows outward in the middle of a tier).
- Root Cause: The unbraced length of the column is too long relative to its cross-sectional radius. According to Euler's buckling equation, doubling the length of a column reduces its load-bearing capacity to one-fourth of its original value.
- Actionable Fix: Install an intermediate horizontal belt of struts halfway up the buckling tier. This effectively cuts the unbraced length of the column in half, quadrupling its structural resistance to bending forces.
Failure Scenario: Base Joint Shear (The tower slides off or shears at its ground connection).
- Root Cause: Insufficient lateral support at the ground interface, allowing shear forces from slight tilts to overcome tape adhesion and slide the column bases outward.
- Actionable Fix: Construct folded triangular paper "gussets" (corner brackets) and tape them securely to both the vertical column and the horizontal base frame. This creates a rigid knee joint that resists rotational movement.
Failure Scenario: Torsional Twisting (The tower twists and collapses diagonally).
- Root Cause: A lack of diagonal bracing, or all diagonal braces running in the same rotational direction around the tower, creating an unbalanced torsional moment under vertical loads.
- Actionable Fix: Alternating the direction of your diagonal braces on adjacent faces of the tower. This creates a "cross-braced" pattern that cancels out rotational forces.
Frequently Asked Questions
How do you make a paper tower stand up without using tape?
To construct a tapeless paper tower, you must rely entirely on mechanical interlocking joints, friction-fit sleeves, and strategic folding. Cut precise 1-centimeter slits into the ends of your paper columns to create interlocking tabs, or slide tapered, rolled cones inside one another to create dense, friction-locked vertical columns.
Why do cylinders support more weight than square columns?
Cylinders lack sharp corners, which means stress is distributed evenly across their entire continuous surface area. Square columns have flat, wide faces that easily buckle inward under low loads, concentrating stress exclusively onto the four folded corners, which accelerates material failure.
What is the maximum height a 20-sheet paper tower can realistically reach?
With highly optimized rolling and bracing techniques, a well-engineered 20-sheet paper tower can reach heights between 2.0 and 2.5 meters. To achieve this, you must use extremely thin, highly compressed columns with extensive diagonal tension-bracing to minimize weight at the top while maintaining structural rigidity.
How does the center of gravity affect a paper tower's stability?
A paper tower remains stable as long as its center of gravity is kept low and its vertical projection falls within the boundary footprint of the base. If the tower tilts or is top-heavy, the center of gravity shifts outside this base boundary, creating a turning force that topples the structure.
