How To Build A Guitar Pedal Board: A Pro-Grade Guide To Signal Chain Architecture
Constructing a professional-grade guitar pedal board requires a systematic approach to mechanical mounting, isolated power distribution, and optimized signal path routing. By adhering to standardized cable management and grounding practices, you ensure signal integrity, minimize ground loop noise, and provide a stable, gig-ready platform for your stompbox collection.
Essential Components and Structural Requirements
Before beginning the physical assembly, you must inventory your signal requirements and physical space limitations. Building a pedal board is as much about mechanical engineering as it is about tonal architecture. You are balancing the portability of your rig with the electrical needs of multiple high-current digital processors and sensitive analog circuits.
- Required Hardware and Materials:
- Pedalboard frame (aluminum rail system or rigid HDPE board).
- Hook-and-loop industrial-strength adhesive fasteners.
- Isolated multi-output power supply with independent grounding for each tap.
- High-quality instrument patch cables (low-capacitance shielded cabling preferred).
- Cable ties, adhesive tie-down mounts, and cable management sleeves.
- Pedalboard mounting brackets or specific underside enclosures.
- Prerequisite Knowledge:
- Fundamental understanding of signal flow (Guitar to Tuner, Dynamics, Gain, Modulation, Time-Based, Amp).
- Proficiency in basic soldering or crimping for custom-length cables.
- Knowledge of current (mA) requirements for individual pedals to avoid supply damage.
- Benchmarks and Estimates:
- Budgeting: Plan for at least 30 percent of your total board cost to be allocated to high-quality power and cabling.
- Time Investment: Allow four to six hours for proper cable cutting, routing, and power distribution mapping.
The Systematic Assembly Workflow
Step 1: Establishing the Signal Hierarchy
The logical flow of your signal determines your tonal clarity. While creative experimentation is encouraged, industry standard dictates a foundational chain: Tuner, followed by dynamics (compressors/wah), gain stages (overdrive/fuzz/distortion), modulation (chorus/flanger/phaser), and finally time-based effects (delay/reverb).
- Lay out your pedals in the desired order on the board surface without securing them.
- Ensure pedals with high-draw digital processors are physically separated from high-gain analog drives to prevent electromagnetic interference (EMI).
- Connect patch cables to verify the signal chain before finalizing placement.
Pro-Tip: If your amplifier has an effects loop, treat your modulation and time-based effects as a separate sub-chain, routing them between the amplifier’s Send and Return jacks rather than placing them in front of the amp input.
Step 2: Power Supply Distribution and Grounding
Noise floor issues are almost exclusively caused by poor power distribution. Using a daisy-chain power cable is a frequent point of failure. You must utilize an isolated power supply where each output tap is transformer-isolated to prevent ground loops.
- Mount the power supply underneath the board frame using manufacturer-provided brackets or industrial adhesive.
- Route individual power cables from the isolated outputs to the pedals.
- Use a multimeter to verify that the voltage output (typically 9V, 12V, or 18V) matches the specific requirements of each pedal.
Warning: Never use an AC power adapter meant for one pedal on another device unless you have verified the polarity (center-negative vs. center-positive) and the current capacity. Supplying 18V to a 9V pedal will permanently damage internal circuitry.
Step 3: Cable Management and Surface Integration
Once the power and signal path are confirmed, you must stabilize the components. Industrial-strength hook-and-loop fasteners are the industry standard for their balance of security and modularity.
- Apply hook-and-loop tape to the bottom of the pedals and the board surface, ensuring edges are pressed firmly to avoid slippage.
- Bundle signal cables using low-profile cable ties, routing them along the interior frame rails to keep the top surface clean.
- Keep power cables and signal cables physically separated by at least an inch where possible to prevent hum induction.

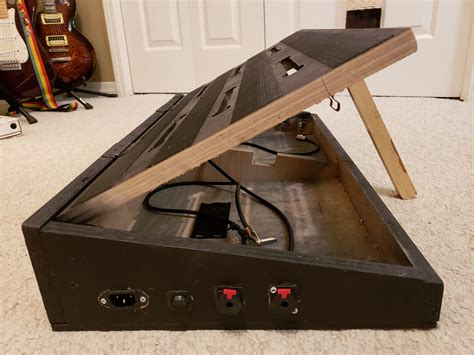

Homemade Guitar Effects Pedal Board - Homemade Ftempo
Technical Specifications and Component Parameters
| Component Category | Standard Specification | Impact on Performance |
|---|---|---|
| Power Isolation | Transformer-Isolated Taps | Eliminates ground loop hum and clock noise |
| Cable Capacitance | Under 30pF per foot | Preserves high-frequency signal clarity |
| Mounting Medium | Industrial Hook-and-Loop | Ensures structural integrity during transit |
| Connector Type | Right-Angle Pancake Plugs | Optimizes board real estate and spacing |
Managing Signal Interference and Field Failures
Even a perfectly wired board can encounter issues in different venue environments. Understanding how to diagnose signal degradation is essential for live performance reliability.
- Issue: Audible 60-cycle Hum
- Root Cause: Ground loop created by non-isolated power or poorly shielded patch cables.
- Actionable Fix: Replace all daisy-chain power cables with an isolated power supply and test individual pedals to identify the source of the ground loop.
- Issue: High-End Frequency Loss
- Root Cause: Excessive cable capacitance across too many pedals.
- Actionable Fix: Introduce a high-quality buffer pedal at the beginning or end of the chain to drive the signal through longer cable runs.
- Issue: Intermittent Signal Cutouts
- Root Cause: Oxidation on patch cable plugs or worn-out pedal input jacks.
- Actionable Fix: Clean all jacks with contact cleaner and perform a cable continuity test to replace faulty patch leads.
Frequently Asked Questions
Should I put my tuner at the beginning or end of my board?
The tuner should almost always be the first device in your chain. Placing it first ensures the tuner receives a clean, unprocessed signal directly from your guitar, providing the most accurate pitch detection and allowing you to mute the entire rig when tuning between songs.
Do I really need an isolated power supply?
Yes, using a non-isolated power supply is the most common cause of noise on a pedal board. Isolated supplies provide independent grounds for each pedal, which prevents digital noise from clock cycles in pedals like delays from bleeding into your analog distortion circuits.
What is the advantage of using buffers on my board?
A buffer converts your high-impedance guitar signal into a low-impedance signal, which is more resistant to signal loss over long cable runs. If your board has more than 15 feet of total cabling, a buffer will prevent the signal roll-off that typically results in a loss of treble.
How do I measure the current draw for my pedals?
You can find the current draw, measured in milliamperes (mA), in your pedal’s owner manual or printed on the back of the pedal casing. Ensure your power supply output provides equal or more current than the pedal requires; the pedal will only pull what it needs, so having extra capacity is safe.
Elevate your performance reliability by transitioning from a disorganized collection of effects to a structured, professional pedal board rig. Invest in quality cabling and isolated power now to ensure your tone remains consistent across every stage you play.
