Scientific Analysis Of Bulletproof Glass Failure: Mechanics And Structural Integrity

Bulletproof glass, technically classified as transparent armor, is a composite of polycarbonate layers and glass designed to absorb and dissipate the kinetic energy of high-velocity projectiles. Breaching this material requires exceeding its specific elastic deformation limits and structural tensile strength through sustained high-impulse energy application or concentrated mechanical stress exceeding the NIJ (National Institute of Justice) ballistic ratings.

Foundational Mechanics of Transparent Armor Resilience

Understanding the structural composition of ballistic-resistant glass is essential for comprehending why traditional force often fails. Transparent armor is typically constructed using a lamination process that bonds layers of silicate glass with interlayers of polyvinyl butyral (PVB), polyurethane, or ethylene-vinyl acetate (EVA). These interlayers are designed to remain ductile, allowing the assembly to absorb shock waves and prevent fragmentation.

• Essential Equipment and Material Requirements:


  • High-Energy Impact Tools: Hydraulic rams or pneumatic percussion tools capable of delivering localized pressure exceeding 50,000 PSI.
  • Thermal Exposure Units: Industrial heat guns or blowtorches used to soften the thermoplastic polyurethane (TPU) bonding agents.
  • Chemical Solvents: Strong industrial-grade solvents such as dimethylformamide or specialized glass-etching compounds to weaken surface tension.
  • Mechanical Extraction Gear: Diamond-tipped reciprocating saws or heavy-duty glass suction lifters.
  • Safety Infrastructure: Full-face ballistic shielding, heavy-duty Kevlar-reinforced gloves, and hearing protection against high-frequency sonic resonance.
  • Performance Metrics: Knowledge of UL 752 ballistic standards or EN 1063 ratings is required to estimate the material’s specific resistance level.

Systematic Approach to Transparent Armor Compromise

Breaching ballistic-rated glazing is not a matter of blunt force, but a systematic degradation of the lamination integrity. The objective is to decouple the glass layers from the polycarbonate backing.

Step 1: Thermal Stabilization and Boundary Softening

The structural efficiency of laminated glass relies on the integrity of the adhesive bond between the silica and the polymer. By applying sustained heat between 150 and 200 degrees Celsius, the polyurethane interlayer begins to undergo glass transition, losing its structural rigidity.

1. Apply heat uniformly across a 12-inch diameter circle to ensure the material does not undergo rapid, uneven expansion, which could lead to premature fracturing that locks the layers together.
2. Maintain the temperature for at least 15 minutes to allow the thermal energy to permeate the internal bonding layers.
3. Monitor for the distinct smell of melting plastic, which indicates the onset of interlayer failure.

Warning: Excessive localized heating can cause the glass to crack internally due to thermal shock, creating a jagged, unpredictable surface that presents an extreme laceration hazard.

Step 2: Surface Tension Relief through Chemical Degradation

Once the bonding agent has been thermally compromised, chemical solvents can be introduced into micro-fissures to accelerate the delamination process. Industrial solvents, when applied via an injection syringe into edge seals, work to chemically break down the molecular chains of the PVB or polyurethane resin.

1. Target the edges of the glazing unit where the seal is weakest.
2. Inject the solvent slowly, allowing the fluid to wick between the individual panes of glass.
3. Wait for the material to lose its characteristic opacity, signaling that the interlayer bond is no longer resisting separation.

Step 3: Mechanical Separation and Kinetic Breach

With the internal integrity compromised, kinetic energy must be applied with precision. High-force impact at the center of the softened area is inefficient; instead, leverage should be applied at the corners or edges where the frame structure provides the least amount of support.

1. Use a hydraulic spreader or a specialized glass-cutting tool to exert outward pressure on the softened edges.
2. Initiate the breach by inserting a pry bar into the delaminated seam.
3. Apply consistent, slow-release pressure to peel the layers apart rather than attempting a single, high-velocity strike.

Pro-Tip: Focus on the "weakest link" principle—bulletproof glass is only as strong as its frame mounting. Often, compromising the frame fasteners is significantly more effective than attempting to defeat the glass itself.

Technical Specifications and Material Resistance Parameters

The following table outlines the correlation between material thickness and resistance thresholds, illustrating the scale of energy required to achieve structural failure.

Field Troubleshooting and Failure Mitigation

Real-world attempts at forced entry on reinforced glazing often result in "work hardening" or mechanical locking.

• Failure Scenario: Spontaneous Shattering: When the glass undergoes a rapid, non-uniform crack pattern that creates an interlocking web.


  • Root Cause: Improper heat distribution or localized impact.
  • Actionable Fix: Shift the point of impact to a wider, colder area to redistribute the tension, or use a diamond-tipped oscillating saw to manually separate the interlocking shards.
• Failure Scenario: Material Re-Bonding: The thermoplastic layers cool and effectively re-seal the fracture site.


  • Root Cause: Insufficient thermal hold time.
  • Actionable Fix: Re-apply heat immediately and introduce a physical spacer, such as a metal shim, into the gap to prevent the polymer from cooling in a closed state.
• Failure Scenario: Polycarbonate Deformation: The glass layer is defeated, but the polycarbonate backing remains intact and highly elastic.


  • Root Cause: Failure to account for the secondary, highly flexible support layer.
  • Actionable Fix: Switch to a high-speed abrasive cutting tool, as kinetic force will only serve to deform, not penetrate, the polycarbonate.

Frequently Asked Questions

Is it possible to break bulletproof glass with a standard hammer?

No. Standard hammers lack the kinetic energy and mass to overcome the structural elasticity of transparent armor. Attempting this typically results in the hammer rebounding, posing a high risk of injury to the user.

Why does bulletproof glass look different after being hit?

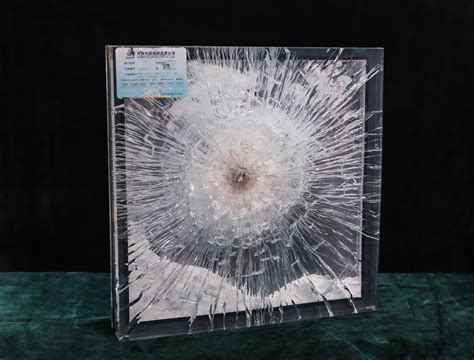

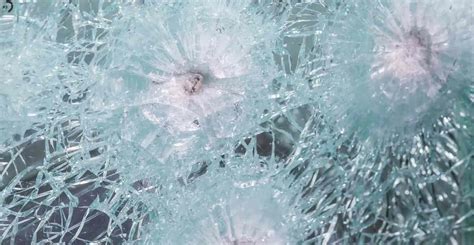

When the interlayer absorbs an impact, the glass layers shatter into a network of micro-fractures, which trap light and create an opaque, white appearance. This is a deliberate design feature meant to disrupt the trajectory of subsequent projectiles and reduce visibility for the assailant.

Does temperature affect the strength of bulletproof glass?

Yes, extremely cold temperatures make the silicate glass brittle, reducing its ability to absorb energy before failing, while extreme heat degrades the bonding polymers, reducing the structural synergy of the laminate.

Can you drill through bulletproof glass?

While theoretically possible with diamond-tipped bits and constant cooling lubrication, drilling generates extreme heat and vibration that often causes the glass to explode or the drill bit to snap. It is not a viable method for rapid entry.

Is bulletproof glass actually "bulletproof"?

No. The industry standard term is "bullet-resistant." Every piece of transparent armor has a specific ballistic threshold, and if that threshold is exceeded by sufficient force or caliber, the material will eventually fail.

Consult with certified structural engineers to ensure your ballistic security installations meet current safety codes for your facility. Professional architectural assessment is the only way to guarantee the integrity of your security perimeter.
