How To Bleed Slave Cylinder: The Complete Hydraulic Clutch System Guide
Bleeding a hydraulic clutch slave cylinder requires purging trapped air from the lines using fresh DOT-rated brake fluid through a systematic pump-and-hold method or pressure bleeding. The primary benchmark for success is firm pedal resistance and complete disengagement of the clutch disc when the pedal is fully depressed.
Pre-Operation & Equipment Checklist
Proper preparation prevents contamination of the hydraulic system and ensures safe operation when working beneath a lifted vehicle. Hydraulic clutch systems rely on specific fluid viscosities and pressure ratings to translate pedal travel into fork movement, making correct material selection critical.
- Essential gear, tools, and materials: Box-end wrenches (typically 8mm, 10mm, or 11mm), a clear vinyl tube, a catch container, fresh DOT 3, DOT 4, or DOT 5.1 brake fluid (verify the specific rating stamped on your vehicle's master cylinder reservoir cap), a floor jack, heavy-duty jack stands, wheel chocks, and an optional one-way valve bleeding kit or pressure bleeder.
- Mandatory prerequisite knowledge and standards: Never mix glycol-based brake fluids (DOT 3, 4, 5.1) with silicone-based fluids (DOT 5), as this causes seal degradation and catastrophic hydraulic failure. Keep painted surfaces protected, as brake fluid acts as a powerful solvent on automotive clear coat.
- Estimated budget and duration benchmarks: Financial investment ranges from $10 to $30 for fresh fluid and basic tubing, assuming standard hand tools are already owned. Time commitment is roughly 45 to 90 minutes for a single-person or two-person operation.
Step-by-Step Clutch Hydraulic System Bleeding Procedure
Step 1: Vehicle Elevation and Secure Setup
Secure the vehicle on level ground by engaging the emergency brake and placing wheel chocks behind the rear tires. Raise the front end using a hydraulic floor jack at the manufacturer-approved lift points, then lower the chassis onto certified structural jack stands. Remove the front tires if greater physical access to the transmission bellhousing or side-mounted slave cylinder is required for your specific vehicle architecture.
Step 2: Fluid Reservoir Inspection and Preparation
Locate the brake master cylinder and clutch fluid reservoir under the hood, or find the dedicated remote clutch reservoir if your vehicle features an independent circuit. Clean all dirt and debris from around the reservoir cap using a lint-free shop towel before opening to prevent particulate contamination. Fill the reservoir to the maximum fill line using an unopened container of fresh, recommended brake fluid, and leave the cap resting loosely on top to maintain atmospheric pressure during the bleeding sequence.
Step 3: Bleeder Valve Access and Tubing Attachment

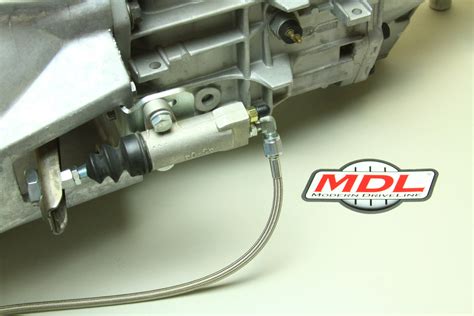

Crawl beneath the vehicle to locate the clutch slave cylinder mounted either externally on the transmission housing or internally as a concentric slave cylinder (CSC) with an external bleeder line. Remove any rubber protective dust cap from the bleeder screw nipple. Fit a snug clear vinyl hose over the tip of the bleeder valve and submerge the opposite end of the tube into a clean catch container partially filled with fresh brake fluid to prevent air from being sucked back into the system during pedal release.
Step 4: Performing the Manual Pump-and-Hold Sequence
If working with a partner, instruct them inside the cabin to slowly pump the clutch pedal three to five times and then hold firm pressure downward on the floorboard. While your partner maintains downward pressure, loosen the slave cylinder bleeder valve approximately a quarter to a half turn using your box-end wrench. You will see old fluid, air bubbles, and foam travel through the clear tubing. Promptly tighten the bleeder screw before your partner's foot reaches the floor to prevent backward air suction, and then instruct them to slowly release the pedal.
Warning: Never allow the master cylinder reservoir fluid level to drop below the minimum line during this procedure, or the system will draw fresh air directly into the master cylinder bore, forcing you to restart the entire bleeding process from the beginning.
Step 5: Iteration and System Flushing
Repeat the pump-and-hold sequence outlined in Step Four continuously, checking and topping off the master cylinder fluid reservoir after every three to four cycles. Continue this process until the fluid traveling through the clear vinyl hose runs completely clear of air bubbles and sediment. Tighten the bleeder valve to the factory-specified torque rating, wipe away any spilled fluid with water-dampened cloths, and reinstall the rubber dust cap over the bleeder nipple.
Vw Golf Clutch Master Cylinder Bleeding at David Desantis blog
Comparative Analysis of Clutch Bleeding Methodologies
| Bleeding Method | Equipment Required | Labor Intensity | Effectiveness Rating | Risk of Air Ingress |
|---|---|---|---|---|
| Manual Pump-and-Hold | Wrench, clear tubing, assistant | High (Two people) | Moderate | Medium-High |
| Gravity Bleeding | Wrench, clear tubing, fluid | Low (One person) | Low-Moderate | Low |
| Vacuum Bleeding | Hand pump or compressor kit | Medium (One person) | High | Low |
| Pressure Bleeding | Master cylinder pressure cap kit | Low (One person) | Maximum | Very Low |
Troubleshooting Common Bleeding Complications
- Root Cause: Persistent spongy pedal feel despite multiple bleeding cycles indicating trapped air pockets.
- Actionable Fix: Air can become trapped in high points of hard lines or inside the master cylinder piston bore. Park the vehicle on an incline facing upward, or tap gently along the metal hydraulic lines and slave cylinder body with a plastic mallet to dislodge clinging bubbles before repeating the bleeding sequence.
- Root Cause: Bleeder valve threads drawing air past the threads whenever the pedal is depressed.
- Actionable Fix: Remove the bleeder screw entirely, wrap the male threads with two turns of polytetrafluoroethylene (PTFE) thread seal tape, and reinstall it to create a reliable vacuum seal while keeping the internal taper clean.
- Root Cause: Fluid level in the reservoir remains static, and no fluid escapes when the bleeder valve is opened.
- Actionable Fix: The flexible rubber hydraulic hose connecting the hard lines to the slave cylinder may have collapsed internally, or the master cylinder piston is failing to build pressure due to worn internal cup seals requiring replacement.
Frequently Asked Questions
Can I use old brake fluid that I have sitting in my garage?
No, brake fluid is hygroscopic, meaning it absorbs moisture from the ambient air over time. Moisture lowers the boiling point of the fluid and corrodes internal hydraulic components, so you must always use fresh fluid from a freshly unsealed container.
Why won't my clutch pedal return to the top after bleeding?
A limp or sticking pedal usually points to an empty master cylinder reservoir, a weak or broken pedal return spring, or internal bypass within the master cylinder assembly where fluid leaks past the primary seals instead of moving the slave cylinder.
Do I need to bleed the brakes if I am only bleeding the clutch?
No, although many modern manual transmission vehicles share a common fluid reservoir between the brake master cylinder and the clutch master cylinder, their internal fluid chambers are separated by a dividing wall, meaning the brake lines remain unaffected.
What is a concentric slave cylinder and does it bleed differently?
A concentric slave cylinder surrounds the transmission input shaft directly behind the clutch pressure plate, placing the release bearing and slave piston into one integrated unit. While it operates on the same hydraulic principles, it typically features a remote bleeder line routed outside the bellhousing to simplify the bleeding procedure.
Ensure your manual transmission shifts smoothly by maintaining a pristine hydraulic environment and using high-grade fluid formulated for your specific application requirements.
