Comprehensive Guide On How To Attach A Projector To The Ceiling For A Professional Home Cinema

Securely attaching a projector to a ceiling requires a precise calculation of the throw distance and vertical offset to ensure the image perfectly fills the screen without digital distortion. By anchoring the mounting bracket into structural ceiling joists and utilizing a level-aligned installation, you can achieve a stable, vibration-free cinematic display that meets professional AV standards.

Pre-Installation Planning and Equipment Inventory

Before drilling into your ceiling, you must conduct a thorough spatial analysis. A ceiling-mounted projector is a permanent fixture, and errors in placement lead to permanent image quality degradation. The primary metric to consider is the Throw Ratio, which is the relationship between the distance from the lens to the screen and the width of the image. You must also account for the Vertical Offset, which dictates how high or low the image sits relative to the center of the lens. Failure to calculate these measurements results in the "keystone effect," where the image appears as a trapezoid rather than a perfect rectangle.

Essential Tools and Materials

• Projector Mount: A universal or model-specific mount with a weight capacity exceeding your projector’s weight by at least 25%.
• Structural Fasteners: 1/4-inch x 2-inch lag bolts for wood joists; toggle bolts are only acceptable for lightweight units under 5 lbs on reinforced drywall, though joist-mounting is always preferred.
• Measuring Instruments: A laser distance measurer or a high-quality steel tape measure, and a torpedo level.
• Power and Connectivity: CL2 or CL3-rated HDMI cables (for in-wall use) and an in-wall power extension kit to comply with National Electrical Code (NEC) standards.
• Hand Tools: A power drill, 3/16-inch drill bit (for pilot holes), a stud finder with deep-scan capability, and a screwdriver set.

Technical Benchmarks

• Estimated Duration: 2 to 4 hours.
• Budget Range: $50 - $250 for mounting hardware and cabling (excluding the projector).
• Required Standards: HDMI 2.1 for 4K/120Hz throughput; NEC compliance for hidden wiring.

Systematic Execution for Ceiling Projector Installation

Step 1: Establish the Screen Position and Centerline

The screen dictates the position of the projector, not the other way around. Install your screen first, ensuring it is perfectly level. Once the screen is mounted, find the exact horizontal center of the viewing area. Use a plumb bob or a laser level to project this centerline onto the ceiling. This line represents the axis upon which your projector lens must sit. Note that some projectors have offset lenses; in these cases, the lens, not the projector chassis, must align with this centerline.

Pro-Tip: Avoid placing the screen too high. For the most comfortable viewing experience, the bottom third of the screen should be at eye level when seated.

Step 2: Calculate the Precise Throw Distance

Consult your projector’s manual to find its Throw Ratio. If your screen is 100 inches wide and your projector has a throw ratio of 1.5:1, the lens must be exactly 150 inches from the screen.

1. Measure the width of your screen’s viewing area (do not include the black borders).
2. Multiply the width by the throw ratio (e.g., 90 inches x 1.2 = 108 inches).
3. Measure this distance along your ceiling centerline starting from the plane of the screen.
4. Mark this spot as the "Lens Point."

Step 3: Identify Structural Support and Anchor Points

Never mount a projector to a standard drywall ceiling using only plastic anchors. The heat and slight vibrations from the projector's cooling fans can loosen these over time.

1. Use a stud finder to locate the ceiling joists near your "Lens Point."
2. If a joist runs directly over your mark, you are in luck. If not, you may need to install a wooden "bridge" (a piece of 2x4 lumber) between two joists inside the ceiling or mount a finished wooden plate to the exterior of the drywall that spans two joists.
3. Position the mounting plate against the ceiling so the center of the mount aligns with your calculated throw distance and centerline.
4. Mark the holes for the lag bolts.

Warning: Check for electrical conduits or HVAC ducting inside the ceiling before drilling. Use a non-contact voltage tester to ensure the area is clear of live wires.

Step 4: Install the Ceiling Bracket

1. Drill 3/16-inch pilot holes into the center of the joists. This prevents the wood from splitting when you drive the lag bolts.
2. Affix the mounting plate to the ceiling using the lag bolts and washers.
3. Tighten the bolts until the plate is flush against the ceiling but do not over-torque, as this can crush the drywall and cause the mount to sit at an angle.
4. Verify that the mounting plate is perfectly level in both directions using your torpedo level.

Step 5: Prepare and Attach the Projector

1. Flip the projector over and locate the mounting holes on the bottom.
2. Attach the mounting arms (from the projector mount kit) to these holes. Use the spacers provided if the bottom of the projector is uneven.
3. Ensure the weight is balanced as much as possible among the arms.
4. Lift the projector and hook the mounting arms into the ceiling bracket. Most mounts use a "quick-release" or "click-in" mechanism.
5. Immediately tighten the safety screws to prevent the projector from sliding out.

Step 6: Route Cables and Power

According to building codes, you cannot simply run the projector's standard power cord through a hole in the wall or ceiling.

1. Install an "In-Wall Power Bridge" kit. This allows you to create a code-compliant outlet behind the projector.
2. Run your CL3-rated HDMI cable through the ceiling and down the wall to your AV receiver or source device.
3. Use Velcro ties to secure the cables to the projector mount, leaving enough slack for final tilt/roll adjustments.

Step 7: Final Image Calibration

1. Power on the projector and open the "Grid" or "Pattern" test image from the settings menu.
2. Physical Alignment: Adjust the mount's tilt (up/down), roll (side-to-side rotation), and yaw (left/right angle) until the grid aligns with the screen edges.
3. Zoom and Focus: Use the manual rings on the lens to fill the screen and sharpen the image.
4. Lens Shift: If your projector has optical lens shift, use it to fine-tune the image position without moving the mount.
5. Avoid Keystone: Only use digital keystone correction as a last resort, as it deletes pixels to reshape the image, reducing resolution and brightness.

Technical Specifications for Projector Mounting Hardware

The following table outlines the standard requirements for different types of mounting scenarios based on projector weight and ceiling architecture.

Common Installation Failures and Field Fixes

Unstable or Vibrating Image

• Root Cause: The mount is attached only to drywall or a loose junction box, or the cooling fan is causing resonance in a lightweight mount.
• Actionable Fix: Relocate the mount to a structural joist or reinforce the ceiling from above with a 3/4-inch plywood sub-base. Ensure all thumb screws and Allen bolts on the mount arms are torqued to spec.

Image is Trapezoidal (Keystoned)

• Root Cause: The projector is not perfectly perpendicular to the screen surface or is tilted to compensate for a mount that is too high or too low.
• Actionable Fix: Use a level to ensure the projector is flat. If the image is too high, use an extension pole to lower the projector rather than tilting it down. Ensure the lens center is aligned with the top of the screen's viewable area.

Signal Loss or "Snow" on Screen

• Root Cause: Using a standard HDMI cable over a distance of more than 25 feet, or interference from electrical lines.
• Actionable Fix: Replace the cable with an Active Optical HDMI (AOC) cable for runs longer than 30 feet. Ensure HDMI cables are kept at least 6 inches away from AC power lines inside the ceiling.

Projector Shuts Down Unexpectedly

• Root Cause: Thermal buildup due to insufficient clearance between the projector intake/exhaust and the ceiling.
• Actionable Fix: Verify the manufacturer's clearance requirements (usually 5-10 inches). If using a flush mount, ensure the exhaust port is not obstructed by the mounting plate or cables.

Frequently Asked Questions

Can I mount a projector to a drop ceiling?

Yes, but you cannot mount it to the ceiling tiles themselves. You must use a specialized drop-ceiling projector kit that replaces a standard 2x2 or 2x4 tile with a reinforced metal plate. This plate is then secured to the structural deck above using aircraft cables to ensure safety and stability.

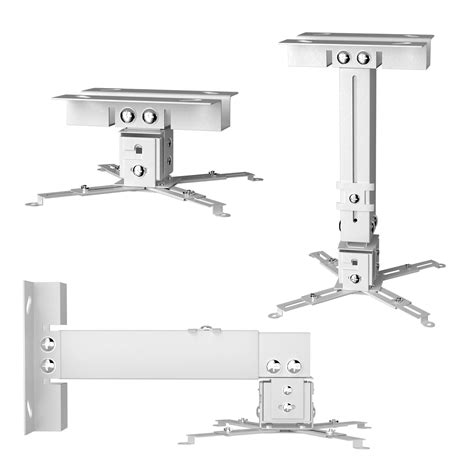

What is the difference between a universal mount and a dedicated mount?

A universal mount uses adjustable arms to fit the mounting holes of various projector brands, making it more versatile for future upgrades. A dedicated mount is custom-machined for a specific projector model, offering a cleaner look and easier alignment because the center of gravity and lens offset are pre-calculated by the manufacturer.

Do I need an extension pole for my projector mount?

An extension pole is necessary if your ceiling is higher than 9 feet and your projector does not have a significant vertical lens shift. Most projectors are designed to sit near the top level of the screen. If the projector is too high, you will have to tilt it, causing image distortion that requires resolution-degrading keystone correction.

How do I hide the cables if I cannot go behind the drywall?

If you have concrete ceilings or are renting, use paintable plastic surface raceways (D-line or cord covers). These adhere to the ceiling and wall, allowing you to tuck the cables inside for a clean look. You can then paint the raceway to match your ceiling and wall color exactly.

Optimize Your Cinema Experience

Selecting the right hardware is only half the battle; precision alignment is what separates a DIY hobbyist setup from a professional-grade home theater. If you are ready to finalize your theater, ensure your audio calibration matches your new visual height for total immersion.
