How To Apply A Subway Tile Backsplash: A Step-by-Step Professional Guide

Learn how to apply a subway tile backsplash using professional surface preparation, directional troweling, precise layout planning, and proper movement joints. Achieving a durable, waterproof installation requires a flat subfloor or substrate, correct thin-set or mastic selection, and maintaining a 1/8-inch expansion gap along all perimeter transitions. Follow this comprehensive standard to complete your kitchen or bathroom tile project with expert accuracy.

Pre-Installation Setup, Tooling, and Substrate Checklist

Before setting a single tile, you must ensure the installation area meets industry standards for flatness, cleanliness, and structural integrity. A successful subway tile application relies heavily on surface preparation and precise tool selection. Wall surfaces must comply with ANSI A108 standards, allowing no more than 1/8-inch variation in 10 feet from the required plane.

Essential Gear, Materials, and Hardware

• Subway Tiles: Standard 3x6-inch ceramic, porcelain, or glass subway tiles (calculate total square footage and add a 10% to 15% overage factor for cut waste).
• Adhesive: Type I Organic Mastic (ANSI A136.1) for dry/low-moisture drywall applications, or Modified Thin-Set Mortar (ANSI A118.4) for high-moisture or cementitious backer board areas.
• Trowel: 1/4-inch x 1/4-inch square-notch or V-notch trowel (matched to tile backing profile).
• Tile Spacers: 1/16-inch or 1/8-inch removable or leave-in cross spacers.
• Cutting Equipment: Manual snap tile cutter and a wet tile saw fitted with a continuous-rim diamond blade.
• Grouting Tools: Hard rubber grout float, high-density tile cleaning sponges, and a clean 5-gallon wash bucket.
• Finishing Materials: Polymer-modified unsanded or sanded grout (based on joint width), 100% pure silicone sealant (color-matched to grout), and electrical box extenders.
• Measurement & Safety: Laser level or 4-foot spirit level, tape measure, chalk line, safety glasses, and cut-resistant gloves.

Mandatory Prerequisite Knowledge and Standards

• Substrate Inspection: Drywall must be clean, dry, plumb, and free of grease, wax, or loose paint. Glossy painted walls require mechanical scarification (sanding with 80-grit sandpaper) to ensure proper adhesive mechanical bond.
• Electrical Compliance: Turn off main power breakers before working around outlets. All electrical junction boxes must be brought flush with the finished tile surface using UL-listed code-compliant box extenders.
• Movement Joints: Never tile directly flush against countertops, adjacent walls, or upper cabinetry. Leave an un-grouted 1/8-inch expansion gap at all plane changes to accommodate thermal and structural movement.

Project Benchmarks

• Estimated Material Cost: $3.00 – $15.00 per square foot (varies by tile composition and substrate needs).
• Project Duration: 2 to 3 days (Day 1: Layout, cutting, and tile installation; Day 2: Adhesive cure time and grouting; Day 3: Sealing and trim installation).

Complete Step-by-Step Subway Tile Backsplash Installation

Step 1: Substrate Preparation and Electrical Box Adjustment

1. Isolate power to all electrical outlets and switches in the installation zone at the main circuit breaker panel.
2. Remove all faceplates, outlet covers, and switch plates using a hand screwdriver.
3. Unscrew the electrical receptacles from their junction boxes, pull them forward slightly, and install adjustable plastic electrical box extenders. The extenders must slide smoothly inside the existing box and extend out by the thickness of your tile plus the adhesive bed (typically 3/8-inch total depth).
4. Deep-clean the wall surface with tri-sodium phosphate (TSP) or a degreasing cleaner to eliminate cooking grease and debris. Allow the substrate to dry completely for at least 2 hours.
5. Inspect the wall with a 4-foot straight edge. Fill deep voids or gouges with setting-type joint compound or thin-set, and sand down high spots until the wall surface achieves flatness within 1/8-inch across 10 feet.

Warning: Never apply tile adhesive over loose wallpaper, flaking paint, or active water-damaged drywall. Failing to remove unstable substrate layers will lead to catastrophic tile detachment over time.

Step 2: Layout Benchmarking and Dry-Fitting

1. Locate the absolute center point of the primary focal wall (typically centered behind the range or main kitchen sink) using a tape measure. Mark a vertical center line using a pencil and a 4-foot spirit level or project a beam with a self-leveling cross-line laser.
2. Lay out a horizontal course of dry tiles on your countertop or work table, inserting tile spacers between them to calculate your module length.
3. Check the width of the cut tiles that will meet the left and right corners or edges. If your calculated end cuts are smaller than half a tile (less than 1.5 inches for a 3-inch wide tile), shift your vertical center line left or right by half a tile width. This adjustment ensures balanced, aesthetically pleasing cut widths on both ends of the wall.
4. Establish a horizontal baseline. Place a 1/8-inch spacer flat on the countertop to maintain an expansion joint. Measure up from the countertop one full tile height plus the width of one grout joint and mark a level horizontal guideline across the wall.
5. Lay a temporary straight wooden ledger board along this horizontal mark if your countertop is uneven or if you are tiling over an open wall space without counter support.

Step 3: Mixing and Troweling the Adhesive

1. If using modified thin-set mortar, pour clean water into a mixing bucket and slowly add powder according to manufacturer specifications. Mix using a low-speed drill (300 RPM) fitted with a margin paddle until a smooth, peanut-butter-like consistency is achieved. Allow the mix to slake (rest) for 10 minutes, then remix briefly without adding more liquid. If using premixed Type I mastic, open the container and stir thoroughly.
2. Scoop adhesive onto the flat side of your 1/4-inch x 1/4-inch square-notch trowel and firmly press (key in) a thin layer onto a manageable section of the wall (roughly 4 to 6 square feet).
3. Apply additional mortar using the notched edge of the trowel. Comb the adhesive in straight, horizontal lines running in a single direction. Do not trowel in swirl patterns, as straight ridges allow trapped air to escape, ensuring complete collapse of the mortar ridges when tiles are set.

Pro-Tip: Hold the trowel at a consistent 45-degree angle to the wall while combing. This maintains an even ridge height across the substrate, guaranteeing uniform adhesive transfer to the back of the subway tile.

Step 4: Setting the Subway Tile Pattern

1. Begin installing tiles along your established baseline at the vertical center line, setting the bottom edge of the first tile onto 1/8-inch spacers resting on the countertop.
2. Press each tile firmly into the wet adhesive bed using a slight twisting motion perpendicular to the trowel ridges. This action collapses the ridges and achieves maximum adhesive coverage (aim for a minimum of 85% coverage in dry areas).
3. Insert tile spacers at all vertical and horizontal joints to ensure uniform line spacing (typically 1/16-inch or 1/8-inch).

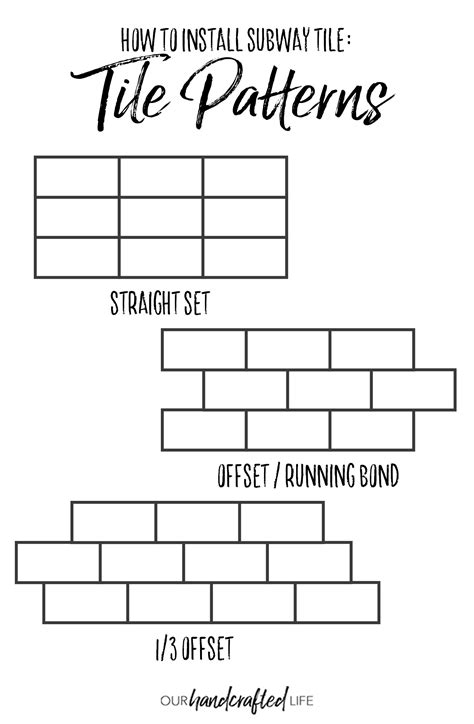

4. Execute the traditional 50% offset (running bond or brick layout) by setting the center of each tile in the second row directly above the vertical joint of the row below it.
5. Place a wooden beating block or rubber mallet against the set tiles every two or three rows and tap lightly to flat-face the installation, ensuring all tile faces sit completely flush with one another.
6. Periodically pull a tile off the wall to verify mortar transfer. If the back of the tile shows less than 85% wet coverage, re-trowel the adhesive or back-butter each tile with a thin layer of mortar before pressing it into place.

Step 5: Precision Cutting Around Outlets and Edge Terminations

1. Measure the remaining gap between the last full tile and the wall corner, subtracting the width of two tile spacers to account for the corner movement joint.
2. Mark the cut dimension on the tile face using a pencil and speed square.
3. Perform straight cuts across the width or length of the tile using a manual snap cutter: score the glazed surface firmly in one continuous stroke, then press the breaker bar to snap the tile cleanly.
4. Use a wet diamond tile saw for intricate cuts, such as L-shaped notches around electrical junction boxes or pipe penetrations. Feed the tile slowly into the water-cooled blade to prevent chipping the ceramic glaze.
5. Finish raw, exposed tile edges at wall terminations using matching ceramic bullnose tiles, metal edge trim profiles (such as Schluter-Systems Schulene/ Jolly), or by scribing a pencil-round polished edge using a 200-grit diamond hand sanding pad.

Step 6: Grouting, Cleaning, and Final Caulking

1. Allow the tile adhesive to cure undisturbed for 24 hours. Remove all tile spacers from the joints using a spacer puller tool or needle-nose pliers.
2. Clean out any excess adhesive that squeezes into the grout joints using a wooden scraper or stiff plastic brush, ensuring joints are clear to at least two-thirds of the tile depth.
3. Mix polymer-modified unsanded grout (for joints 1/16-inch wide) or sanded grout (for joints 1/8-inch wide or larger) according to package directions until smooth.
4. Load grout onto a hard rubber grout float. Hold the float at a 45-degree angle to the tile face and pack the grout firmly into the joints using diagonal sweeps. Ensure zero voids or air pockets remain behind the grout lines.
5. Hold the float at a 90-degree angle to the wall and scrape off excess grout by moving diagonally across the face of the tiles.
6. Wait 15 to 30 minutes until the grout sets to a firm thumb-print resistance. Dampen a high-density tile sponge in clean water, wring it out completely so it is damp rather than soaking wet, and wipe the tile surface in gentle, circular motions to shape the grout joints.
7. Perform a final diagonal wipe with a clean, damp sponge face to remove remaining haze. Allow the grout to dry for 2 to 4 hours, then buff off any light grout film using a soft microfiber cloth.
8. Fill all perimeter expansion joints (where tile meets countertops, adjacent walls, and upper cabinets) with a continuous bead of 100% color-matched silicone caulk. Smooth the bead with a wet finger or caulking tool.

Pro-Tip: Never use cementitious grout in the corner where the tile meets the countertop. Structural settling will crack hard grout within weeks. Always apply 100% pure silicone caulk at all 90-degree plane transitions.

Technical Material Specifications & Adhesive Selection Matrix

Selecting correct setting materials, trowel sizes, and grouts directly dictates the physical durability and water resistance of your tile assembly. Use the following specifications to cross-reference materials against site-specific environmental conditions:

Common Field Defects, Failure Modes, and Remediation Strategies

Even straightforward installation projects can experience failures if proper techniques are compromised. The following diagnostic scenarios outline common job site errors along with root causes and corrective steps:

Failure 1: Tiles Sagging or Slipping Down the Wall Surface

• Root Cause: Excessive adhesive thickness, over-watering thin-set mortar, or applying heavyweight ceramic/porcelain tiles over mastic without mechanical support or spacers.
• Actionable Fix: Remove affected tiles immediately before adhesive cures. Scrape wet mortar off the wall. Re-trowel adhesive using a flat 1/4-inch square notch, holding the trowel strictly at 45 degrees. Use non-slump polymer-modified thin-set (ANSI A118.4) and install a temporary wooden ledger board along the base of your bottom row to support tile weight while setting.

Failure 2: Cracked Tiles Around Outlet Cover Plates

• Root Cause: Electrical junction box not brought flush with the tiled surface, leaving a hollow gap behind the outlet wings. Tightening cover plate screws pulls the receptacle backward, applying bending stress to the unsupported tile edge.
• Actionable Fix: Turn off power breaker. Remove plate and screws. Back out the outlet and install a code-compliant plastic electrical box extender that sits completely flush with the top surface of the tile. Re-anchor the outlet screws into the extender to transfer mechanical tension to the box rather than the tile edge. Replace any broken tiles.

Failure 3: Grout Cracking and Crumbling Along the Countertop Line

• Root Cause: Filling the 90-degree dynamic junction between the rigid wall tile and the countertop with hard cementitious grout instead of flexible sealant. Countertop deflection and subfloor movement stress the rigid grout joint.
• Actionable Fix: Rake out all hard grout from the bottom perimeter joint using a grout removal tool or oscillating multi-tool with a carbide blade, taking care not to chip the countertop or tile edges. Deep-clean the void, vacuum dust, and fill the entire 1/8-inch joint with a continuous line of 100% silicone flexible sealant matched to your grout color.

Failure 4: Adhesive Skinned Over Before Tile Placement

• Root Cause: Spreading adhesive over too large of an area in warm or dry ambient room conditions, causing a thin dry skin to form on top of the mortar ridges that prevents proper bonding to the tile back.
• Actionable Fix: Test adhesive periodically by pressing a finger onto the troweled ridges; if no wet mortar transfers to your skin, the adhesive has skinned over. Scrape off the dried mortar using a flat margin trowel and discard it. Re-apply fresh adhesive over small 2-foot by 2-foot areas immediately prior to placing tiles.

Frequently Asked Questions

Do I need to start tiling in the middle or the corner of the wall?

Always plan your layout from the center of the primary focal wall. Starting in a corner often creates awkward, narrow tile slivers on the opposing wall end if the room is out of square. Centering your layout ensures balanced cut sizes on both outer edges of the backsplash assembly.

Should I use mastic or thin-set mortar for a subway tile backsplash?

Type I mastic is ideal for standard 3x6-inch ceramic subway tiles installed over clean, dry interior drywall in residential kitchens. However, if you are installing natural stone, glass subway tiles, large format subway tiles (such as 4x12-inch), or working in wet shower enclosures, you must use a polymer-modified thin-set mortar.

What type of grout is best for 1/16-inch subway tile joints?

Use unsanded polymer-modified cement grout or high-performance resin grout for joint widths measuring 1/16-inch to 1/8-inch wide. Sanded grout contains abrasive silica sand particles that cannot easily compress into joints narrower than 1/8-inch and will scratch delicate glass or glossy glazed tile finishes.

How do I handle raw edges of subway tile at the end of a wall?

You can terminate an exposed subway tile edge using factory bullnose tiles (tiles with a finished, rounded long or short edge), installing a color-matched anodized aluminum edge trim profile behind the final row, or by applying a thin bead of 100% silicone caulk smoothed cleanly down the exposed ceramic edge.

Can I apply a subway tile backsplash directly over existing drywall?

Yes, subway tile can be applied directly over clean, structurally sound drywall. Sand painted surfaces with 80-grit sandpaper to break gloss sheen, wipe clean of all dust, and verify the wall is dry and flat before spreading adhesive.
